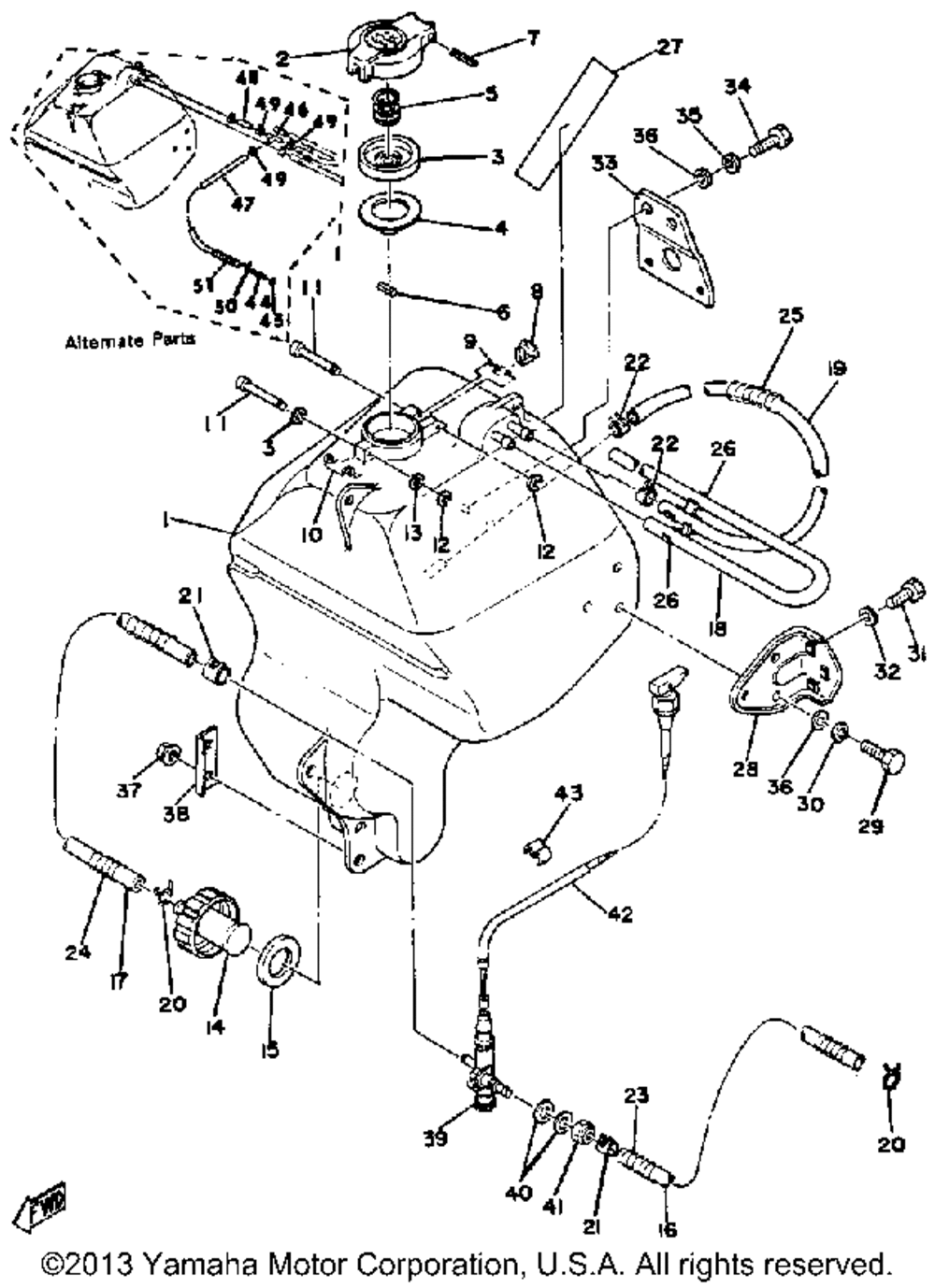

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK | 1 | |
| 2 | BODYCAP | 1 | |
| 3 | DISCCAP | 1 | |
| 4 | GASKET CAP 1 | 1 | |
| 5 | SPRINGCOMPRESSION | 1 | |
| 6 | PINSPRING | 1 | |
| 7 | PINSPRING | 1 | |
| 8 | HOOK | 1 | |
| 9 | SPRINGTORSION (813-24637-00) | 1 | |
| 10 | SPRINGTORSION | 1 | |
| 11 | PINSPEC'L SHAPE | 2 | |
| 12 | CIRCLIPE-TYPE | 2 | |
| 13 | WASHERPLATE | 2 | |
| 14 | FILTER ASSY | 1 | |
| 15 | GASKET | 1 | |
| 16 | HOSE | 1 | |
| 17 | HOSE (815-24312-00) | 1 | |
| 18 | TUBE FLEXIBLE (L970) | 1 | |
| 19 | TUBE FLEXIBLE (90446-09079) | 1 | |
| 20 | CLIPSCISSOR | 2 | |
| 21 | CLIPSCISSOR | 2 | |
| 22 | CLIPSCISSOR FOR CAL | 2 | |
| 24 | PROTECTORPIPE | 1 | |
| 25 | SPRINGCOMPRESSION | 1 | |
| 29 | BOLT (661) | 3 | |
| 30 | WASHERSPRING | 3 | |
| 31 | BOLT HEX | 3 | |
| 32 | WASHERCONICAL SPR | 3 | |
| 36 | WASHERPLATE | 5 | |
| 37 | NUTLOCK | 1 | |
| 39 | FUEL COCK ASSY | 1 | |
| 41 | NUTSELF-LOCKING | 1 | |
| 42 | LEVERFUEL CHANGE | 1 | |
| 43 | CLIP | 1 | |
| 44 | PIPE ADAPTOR ASY | 1 | |
| 45 | WASHER | 1 | |
| 46 | PIPEJOINT | 1 | |
| 47 | TUBE FLEXIBLE | 1 | |
| 48 | TUBE FLEXIBLE 8AV | 1 | |
| 50 | CLAMPHOSE | 1 | |
| 51 | SPRINGCOMPRESSION | 1 |
