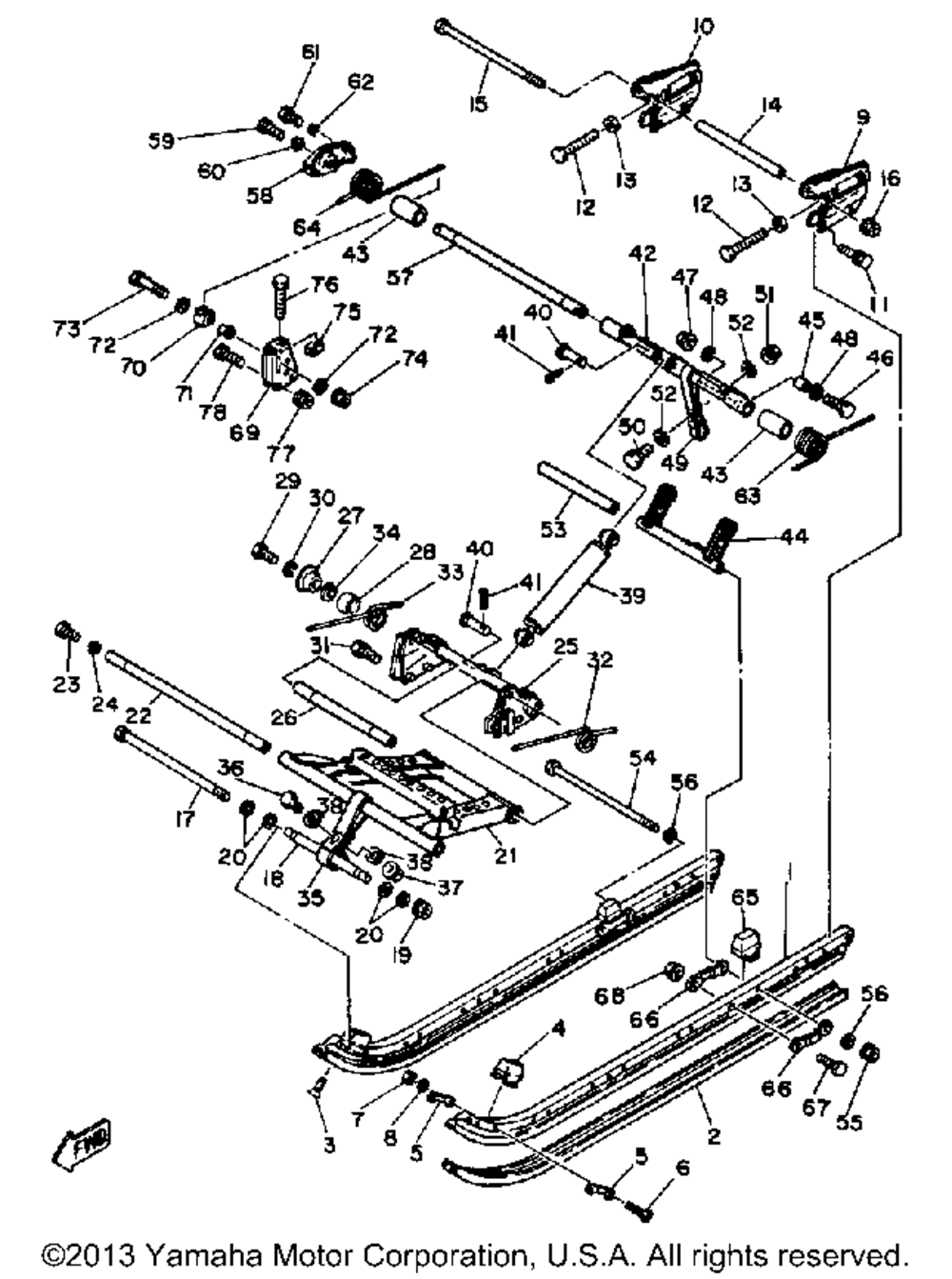

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME SLIDING 1 | 2 | |
| 2 | RUNNERSLIDING 1 | 2 | |
| 3 | )SCREW CROSSRECESS | 2 | |
| 4 | DAMPER 2 | 2 | |
| 5 | PLATEDAMPER | 4 | |
| 6 | SCREW PAN HEAD | 4 | |
| 7 | NUT (5 per pack) | 4 | |
| 7 | NUT | 4 | |
| 8 | WASHERSPRING (5 per pack) | 4 | |
| 9 | FRAMESLIDING 2 | 1 | |
| 10 | FRAMESLIDING 3 | 1 | |
| 11 | BOLTWITH WASHER | 4 | |
| 12 | BOLT | 2 | |
| 14 | COLLAR | 1 | |
| 15 | BOLTHEXAGON | 1 | |
| 16 | NUTLOCK | 1 | |
| 17 | BOLT HEXAGON | 1 | |
| 20 | WASHER | 4 | |
| 22 | SHAFT 1 | 1 | |
| 23 | BOLT (8J7) (8J7) (97303-10030-00) | 2 | |
| 24 | WASHER TTH | 2 | |
| 27 | HOOK 1 | 2 | |
| 28 | COLLAR | 2 | |
| 29 | BOLTWITH WASHER | 2 | |
| 30 | WASHERSPRING (5 per pack) | 2 | |
| 32 | SPRINGTORSION HEAVY DUTY | 1 | |
| 33 | SPRINGTORSION HEAVY DUTY | 1 | |
| 35 | STOPPER 1 | 1 | |
| 36 | BOLT(3RV) | 1 | |
| 37 | NUTFLANGE | 1 | |
| 39 | SHOCK ABSORBER | 1 | |
| 40 | PIN CLEVIS (8NO) | 2 | |
| 41 | PINCOTTER (5 per pack) | 2 | |
| 43 | COLLAR | 2 | |
| 44 | BRACKET 3 | 1 | |
| 45 | COLLAR | 2 | |
| 46 | BOLTHEX | 2 | |
| 48 | WASHERPLATE | 4 | |
| 52 | WASHERPLATE (5 per pack) | 2 | |
| 57 | SHAFT 2 | 1 | |
| 58 | BRACKETREAR 1 | 2 | |
| 61 | BOLT HEX | 4 | |
| 62 | WASHEREX.TOOTH | 4 | |
| 63 | SPRINGTORSION | 1 | |
| 64 | SPRINGTORSION | 1 | |
| 66 | PLATEDAMPER | 4 | |
| 67 | BOLT (661) | 2 | |
| 69 | BRACKET 5 | 2 | |
| 70 | HOOK 2 | 2 | |
| 71 | COLLAR | 2 | |
| 73 | BOLT | 2 | |
| 75 | HOOK 1 | 2 | |
| 76 | BOLT | 2 | |
| 78 | BOLT (97322-08040) | 4 |
