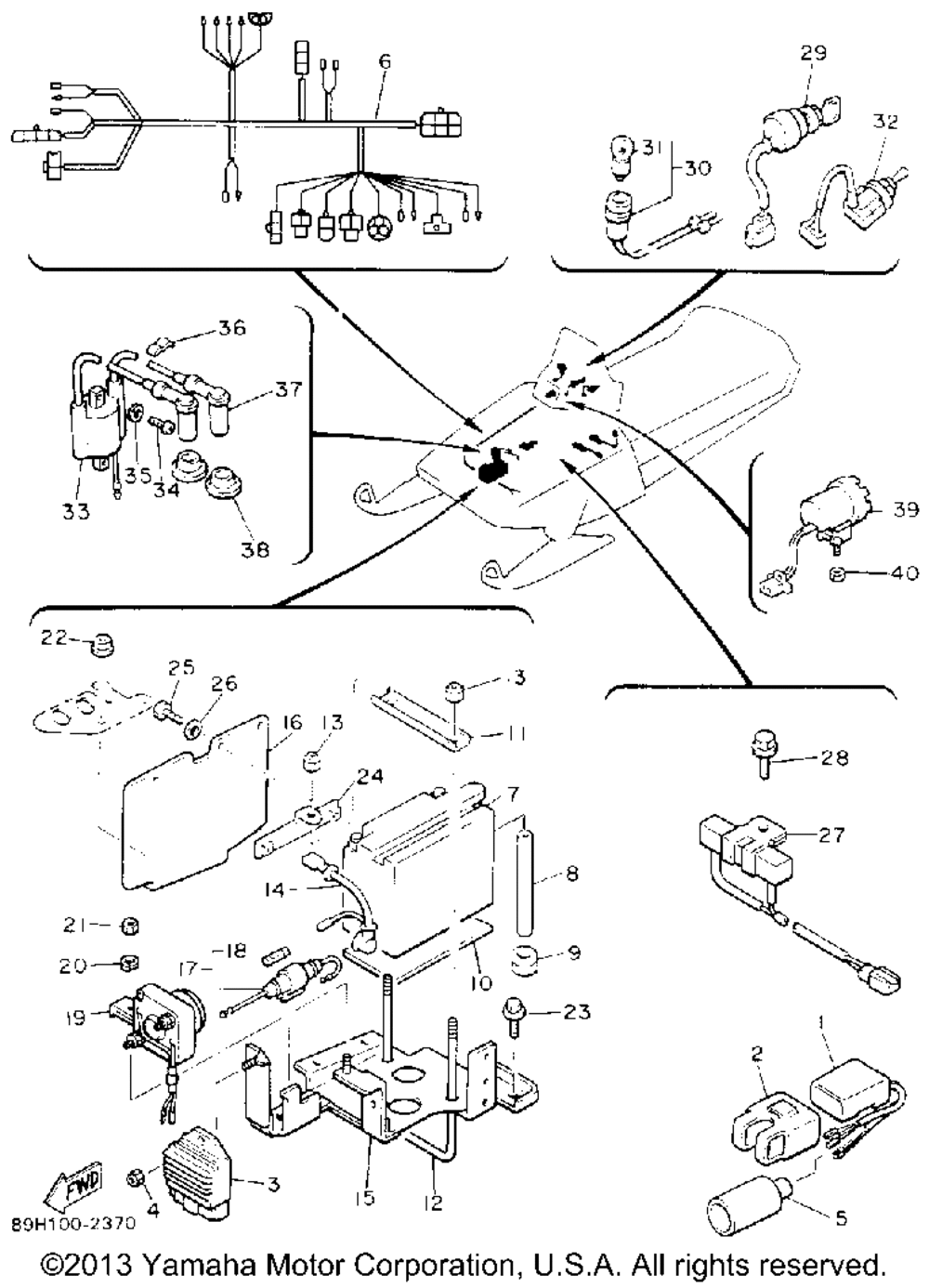

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CDI UNIT ASSY | 1 | |
| 2 | BAND (4ESA) | 1 | |
| 3 | RECTIFIER/REG ASY (USA) | 1 | |
| 4 | NUTFLANGE | 1 | |
| 5 | COVERCONNECTOR | 1 | |
| 6 | WIRE HARNESS ASY | 1 | |
| 7 | YB14LA2 YUASA BATTE (FB14L-A2) (44 YAMAHA | 1 | |
| 8 | HOSE (L330) | 1 | |
| 9 | GROMMET (5 per pack) | 1 | |
| 10 | SEATBATTERY (USA) | 1 | |
| 11 | PLATEBATT FITTING | 1 | |
| 12 | SCREWFITTING (USA) | 1 | |
| 14 | WIREPLUS LEAD | 1 | |
| 15 | BRACKETBATTERY | 1 | |
| 16 | SHIELDHEAT | 1 | |
| 17 | FUSE HOLDER ASY | 1 | |
| 18 | FUSE (10 AMP 30 MM (10A) | 2 | |
| 19 | STARTER SWITCH ASY | 1 | |
| 20 | WASHER (5 per pack) | 1 | |
| 21 | NUT (5 per pack) | 1 | |
| 22 | NUT SELF-LOCKING | 2 | |
| 23 | BOLT FLANGE | 1 | |
| 24 | BRACKETBATTERY | 1 | |
| 25 | BOLT (682) | 2 | |
| 26 | WASHER PLATE | 2 | |
| 27 | RESISTOR ASY | 1 | |
| 29 | MAIN SWITCH ASY | 1 | |
| 30 | PILOT LIGHT ASSEMBLY 1 | 1 | |
| 31 | . BULB (12V5W) | 1 | |
| 32 | SWITCH | 1 | |
| 33 | IGNITION COIL ASSY | 1 | |
| 34 | SCREWPAN HEAD (USA) (5 per pack) | 2 | |
| 36 | CLAMPCORD | 1 | |
| 37 | PLUG CAP ASSY (WITH RESISTOR) | 2 | |
| 38 | SEALPLUG CAP (USA) | 2 |
