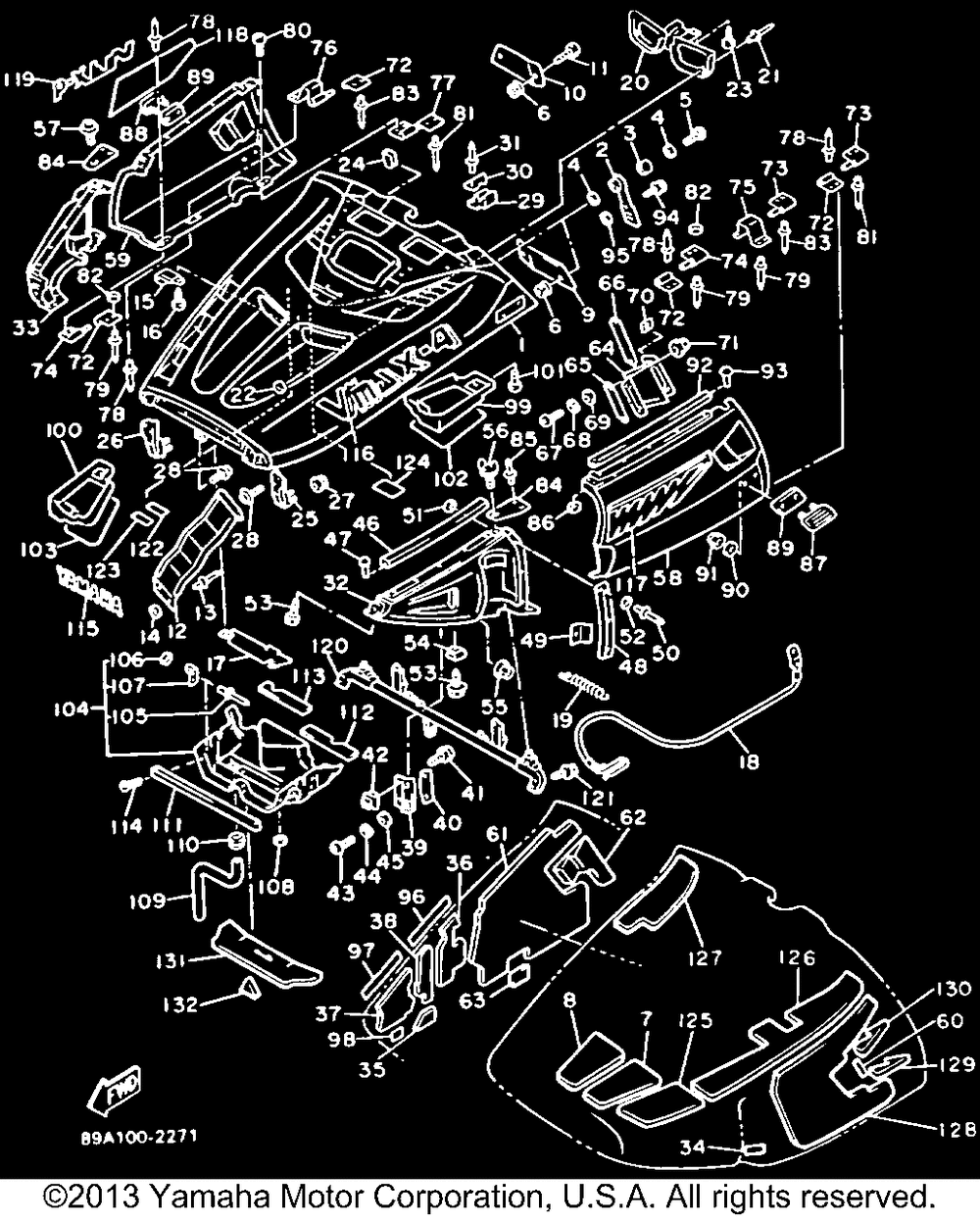

Yamaha VMAX-4 VX750S VMAX-4 VX750S SHROUD
SHROUD
№ Наименование Примечание Кол-во
1 SHROUD ASY KIT YAM. BLK. 1
2 BODYLATCH 1 2
3 COLLAR 2
4 WASHERPLATE 4
5 BOLTSOCKET 2
6 NUT FLANGE 4
7 DAMPERNOISE 16 1
8 DAMPERNOISE 17 1
9 PROTECTOR 5 1
10 PROTECTOR 6 1
11 BOLTSOCKET 2
12 PROTECTOR 7 1
13 RIVETBLIND (4.8X18.7 BLACK) 4
14 WASHER PLATE 4
15 CLAMP (51Y) 2
16 SCREW TRUSS 3
17 PLATE 1 1
18 STOPPERSHROUD 2
19 CLAMP ROD 2
20 COVER 3 1
24 TRIM 6 4
25 HINGE ASY 1
26 HINGE ASY 2 1
28 SCREWWITH WASHER 5
29 STOPPER 2
30 WASHER SPECIAL 2
31 RIVETBLIND 4
32 HOOD 1 1
33 HOOD 2 1
34 TAPE 2 2
35 DAMPERNOISE 12 1
36 DAMPERNOISE 13 1
37 DAMPERNOISE 11 1
38 DAMPERNOISE 14 1
39 PROTECTOR 2 1
40 PLATEBACK UP 1
41 SCREW PAN tahos_4 2
42 NUT 2
43 SCREW PAN 2
44 WASHERSPRING (5 per pack) 2
45 WASHER PLATE (6TA) 2
46 BUSHRUBBER 1 2
47 RIVETSPEC'L SHAPE (5 per pack) 10
48 TRIM 1 2
49 TRIM 4 2
50 RIVETBLIND 8
51 WASHERPLATE 8
52 WASHERPLATE 8
53 BOLT WITH WASHER 8
54 NUTSPRING 4
55 NUT W/WASHER(8W8) 2
56 BOLT WINDSHIELD 1
57 SCREWWITH WASHER 1
58 HOOD 3 1
59 HOOD 4 1
60 TRIM 3 1
61 DAMPERNOISE 15 1
62 DAMPERNOISE 19 1
63 TAPE 1 1
64 PROTECTOR 3 1
65 STOPPER 1 1
66 STOPPER 2 1
70 NUTSPRING (5 per pack) 4
71 NUTFLANGE (4MV) 4
72 BRACKET 1 4
73 BRACKET 2 2
74 BRACKET 2 2
75 HINGE 1 1
76 HINGE 2 1
77 HINGE 3 1
78 RIVETBLIND (4.8X12.3) 6
79 RIVET BLIND 4
80 BOLTSOCKET 2
81 RIVETBLIND UN 8
82 WASHER PLATE 4
84 STOPPER 2
85 RIVETBLIND 4
87 PROTECTOR SIDE 1
88 PROTECTOR SIDE 1
89 SPACER BUMPER 2
90 WASHERPLATE (5 per pack) 4
91 NUT FLANGE (4GB) 4
92 BUSHRUBBER 2 2
94 HOLDERLATCH 2
95 PLATE 2
96 TAPE 1 3
97 TAPE 1 1
98 TAPE 3 3
99 PLATE 1 1
100 PLATE 2 1
102 TAPE 3 1
103 TAPE 4 1
104 GUIDE 1 1
106 WASHER 4
107 STAY 3 2
108 WASHER SPECIAL 2
109 HOSE 2 1
110 GROMMET 1
111 TRIM 1 1
112 TRIM 2 1
113 TRIM 3 1
114 RIVETSPEC'L SHAPE (5 per pack) 14
115 EMBLEM YAMAHA (DPBS 1
116 EMBLEM 1 1
117 EMBLEM 3 1
118 EMBLEM 4 1
119 EMBLEM 2 1
120 STAYRADIATOR 1
121 BOLT FLANGE 4
122 LABEL CAUTION 1
123 LABEL CAUTION 1
124 LABEL 1 1
125 LINING SHROUD 1 1
126 LINING SHROUD 5 1
127 LINING SHROUD 7 1
128 LINING SHROUD 2 1
129 LINING SHROUD 9 1
130 LINING SHROUD 8 1
131 LINING SHROUD 4 1
132 LINING SHROUD 6 1
