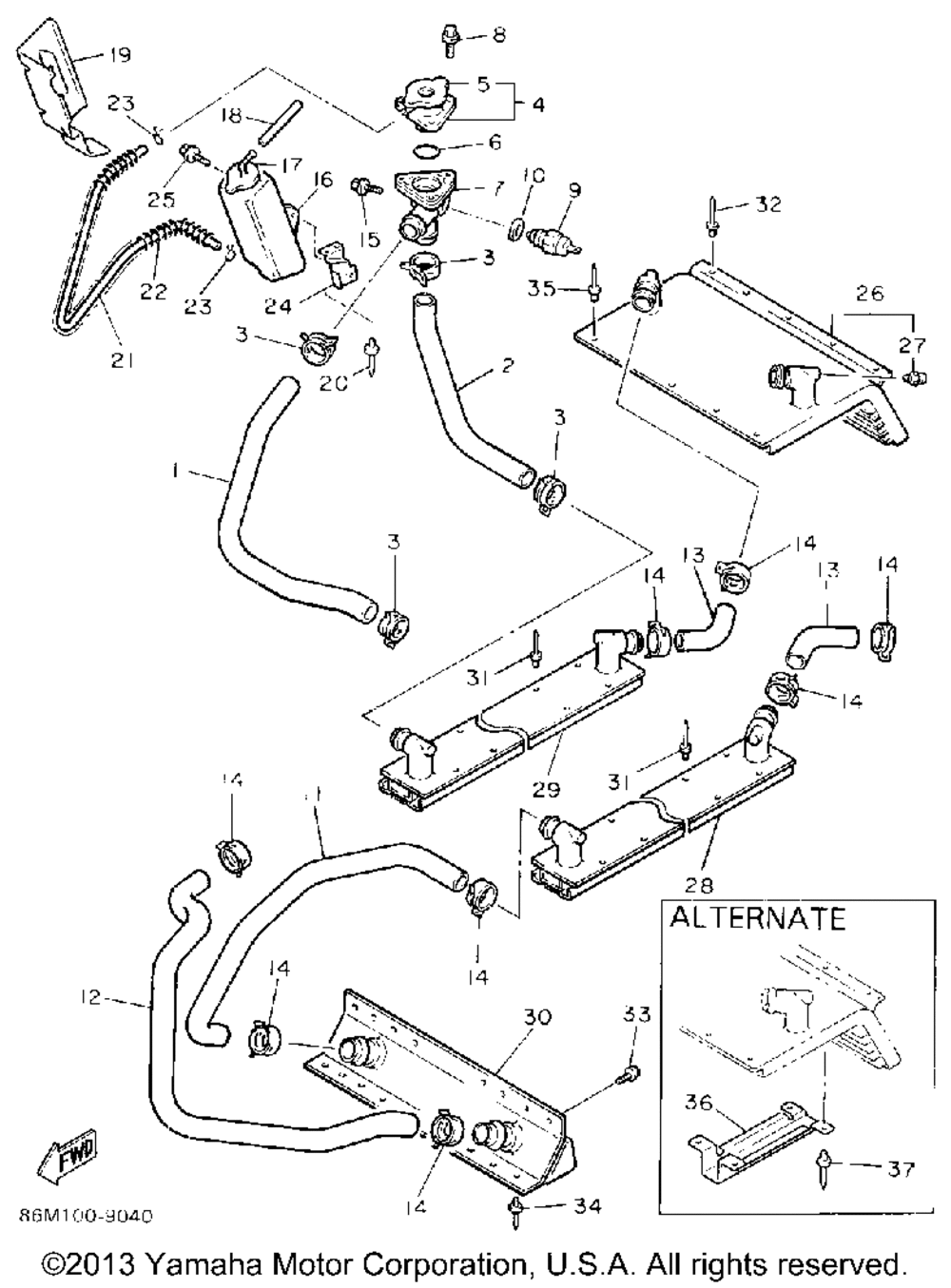

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PIPE 2 | 1 | |
| 2 | PIPE 3 | 1 | |
| 3 | CLIPSCISSOR | 4 | |
| 4 | SUPPORT FILLER NECK | 1 | |
| 5 | CAP RADIATOR | 1 | |
| 6 | O-RING | 1 | |
| 7 | JOINTHOSE 1 | 1 | |
| 8 | BOLT FLANGE | 3 | |
| 9 | THERMO SWITCH ASSY | 1 | |
| 10 | GASKET | 1 | |
| 11 | PIPE 4 | 1 | |
| 12 | PIPE 5 | 1 | |
| 13 | PIPE 6 | 2 | |
| 16 | TANKRECOVERY | 1 | |
| 17 | CAP | 1 | |
| 18 | HOSE (L10) (5 per pack) | 1 | |
| 19 | BRACKETRECOV.TANK | 1 | |
| 20 | RIVET BLIND (J45) | 2 | |
| 21 | HOSE (L260) | 1 | |
| 22 | SPRINGCOMPRESSION | 1 | |
| 23 | CLIPSCISSOR FOR CAL | 2 | |
| 24 | BRACKET 1 | 1 | |
| 25 | BOLTWITH WASHER | 1 | |
| 26 | HEAT EXCHANGER ASY | 1 | |
| 27 | SCREWBLEED | 1 | |
| 28 | HEAT EXCHANGER | 1 | |
| 29 | HEAT EXCHANGER | 1 | |
| 30 | HEAT EXCHG ASSY 4 | 1 | |
| 31 | RIVETBLIND (4.8X12.9 BLACK) (5 per pack) | 28 | |
| 32 | RIVETBLIND | 4 | |
| 33 | BOLT SOCKET | 4 | |
| 34 | RIVET BLIND | 4 | |
| 36 | PROTECTORFRAME AP | 2 |
