Yamaha VMAX 700 SXS (OHLINS FR SHOCKS) VX700SXSB/VX700SXB VMAX 700 SXS (OHLINS FR SHOCKS) VX700SXSB/VX700SXB FRAME

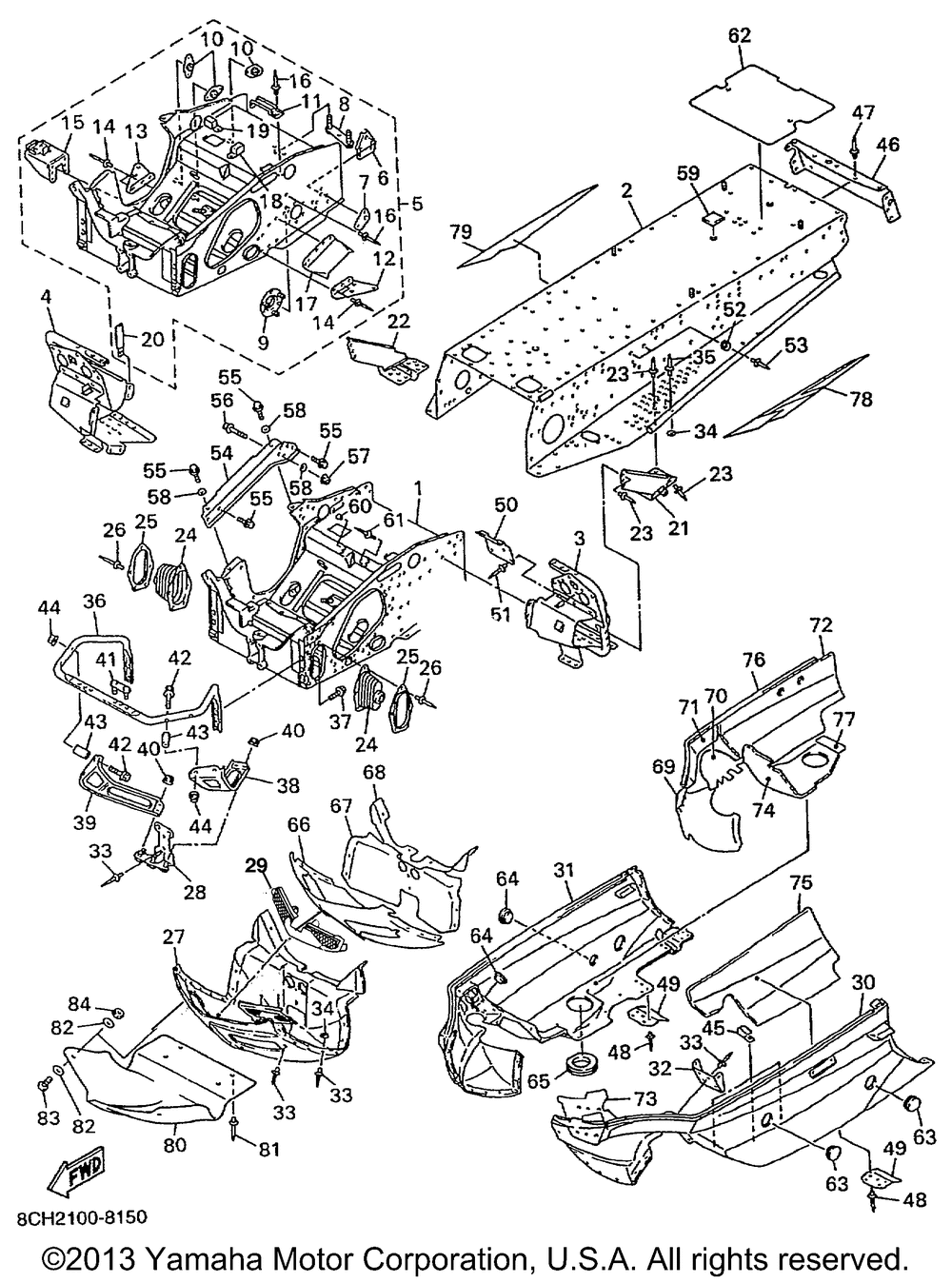

FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 REAR FRAME COMP. 1
3 FOOTREST COMP. 1 (USA) 1
4 FOOTREST COMP. 2 (USA) 1
5 FRAME CONNECTION KIT 1
6 BRACKET MAIN TRACK 2
7 BRKT MTRK SUSP2 2
8 BRKT 3 1
9 HSG.REINF SUBASSY3 (L.H) (USA) 1
10 BRKT CHAIN HSG 3
11 CLAMP. FUEL PIPE (USA) 2
12 PANEL SUBFRAME 6 (USA) 1
13 PANEL SUBFRAME 7 (USA) 1
14 RIVET BLIND (4.8X17 YELLOW) 4
15 STAY MUFFLER (USA) 1
16 RIVET BLIND 150
17 COVER 2 1
18 CLAMP 2
19 CLAMP 1
20 CLAMP 15
21 PIPE PIVOT 1 1
22 PIPE PIVOT 2 1
23 RIVET 4
24 COVER 1 (USA) 2
25 PLATE STRG.BRKL1 2
26 RIVET BLIND (5 per pack) 10
27 PANEL SUB FRAME 1 1
28 PLATE BACK UP (USA) 1
29 LOUVER LOWER 1
30 FRAME UNDER 1 1
31 FRAME UNDER 2 1
32 BRACKET GUARD FIT (USA) 1
33 RIVET BLIND 53
34 WASHERPLATE 18
35 BUMPER FRONT 2 (USA) 1
37 BOLTFLANGE(8AB) 4
38 BRACKET FRONT (USA) 1
39 BRACKET FRONT BUMPE (USA) 1
40 NUT SELF LOCKING 4
41 BRACKET 5 (USA) 2
42 BOLT FLANGE (USA) 4
43 COLLAR (USA) 4
44 Гайка с фланцем 4
45 CLAMP 3
46 REINFORCEMENT FR 1
49 PROTECTORFRAME 2
50 HOOK 1
51 RIVET BLIND 3
52 BUTTON 4
53 RIVET BLIND (81K) 4
54 REINEFORCEMENT FR 1
55 BOLT FLANGE 6
56 BOLT 1
57 NUTFLANGE (8AB) 1
58 WASHER 3
59 COVER 3 1
60 PLUGSPEC'L SHAPE 3
61 RIVET BLIND (4.8X14 YELLOW) (5 per pack) 3
62 SEAL 1
63 PLUGSPEC'L SHAPE 4
64 PLUGSPEC'L SHAPE 4
65 SPACER (USA) 2
66 LININGSHROUD 1 2
67 LININGSHROUD 2 1
68 LININGSHROUD 3 (USA) 1
69 LININGSHROUD 4 1
70 LININGSHROUD 5 (USA) 1
71 LININGSHROUD 6 (USA) 1
72 LINING SHROUD 7 (USA) 1
73 LINING SHROUD 8 1
74 LININGSHROUD 9 (USA) 1
75 DAMPERNOISE 11 (USA) 1
76 TAPE 5 (USA) 1
77 TRIM 1 1
78 EMBLEM 1 1
79 EMBLEM 2 1
80 PROTECTOR FRAME AP 3
81 RIVETBLIND(8BH) AP 4
82 WASHERPLATE (5 per pack) 4
83 SCREWBIND 2
84 NUTU 2
