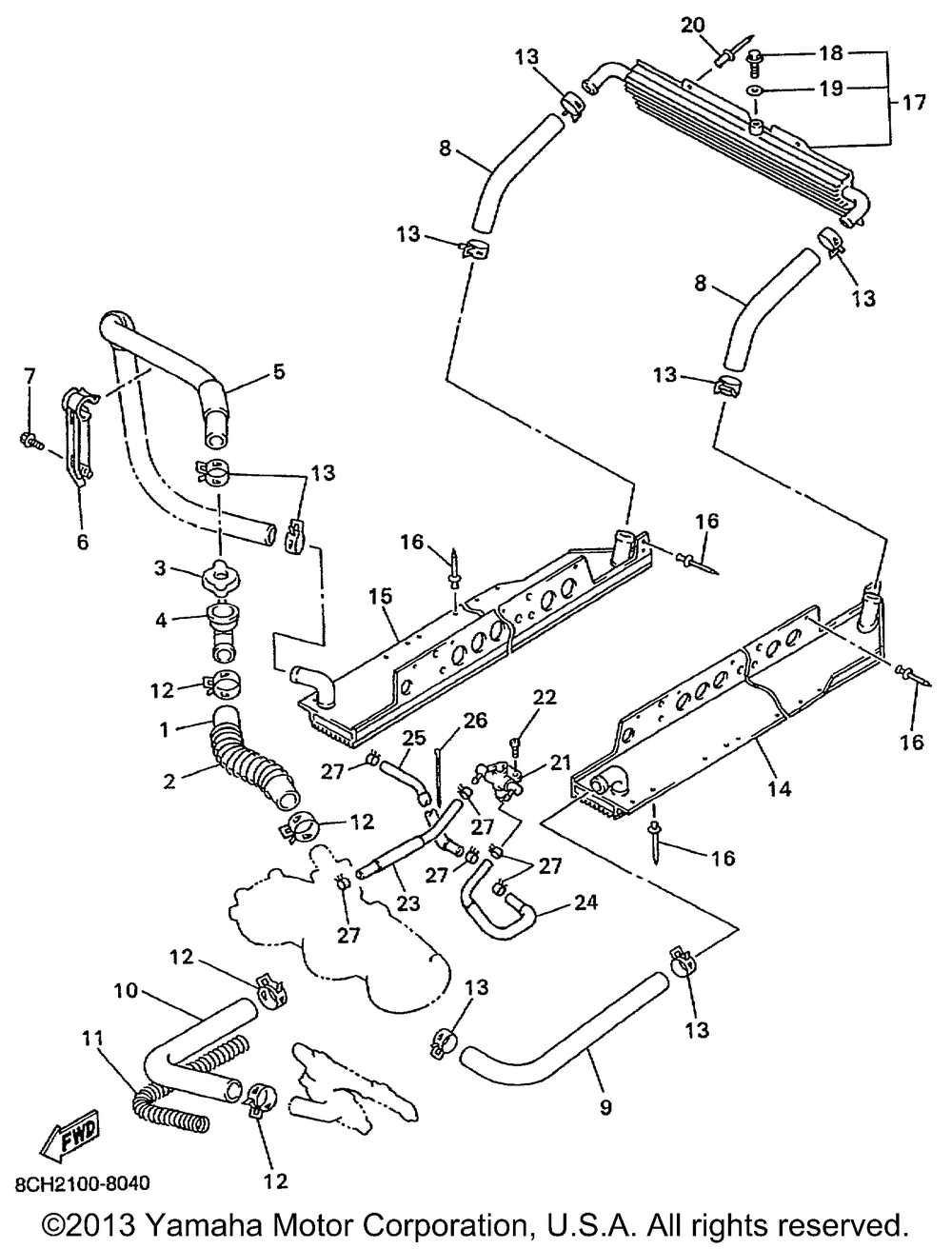

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PIPE 2 | 1 | |
| 2 | SPRING COMPRESSIN | 1 | |
| 3 | CAPRADIATOR | 1 | |
| 4 | SUPTFILLER NECK | 1 | |
| 5 | PIPE 3 | 1 | |
| 6 | CLAMP 1 | 1 | |
| 7 | BOLT FLANGE | 1 | |
| 8 | PIPE 4 | 2 | |
| 9 | PIPE 5 | 1 | |
| 10 | PIPE 6 | 1 | |
| 11 | SPRING COMPRESSIN | 1 | |
| 12 | CLIPSCISSOR | 4 | |
| 13 | CLIPSCISSOR | 8 | |
| 14 | HEAT EXCHANGER | 1 | |
| 15 | HEAT EXCHANGER | 1 | |
| 16 | RIVET BLIND | 42 | |
| 17 | HEAT EXCHANGER ASY | 1 | |
| 18 | BOLTFLANGE | 1 | |
| 19 | GASKET (5 per pack) | 1 | |
| 21 | COCK ASSY | 1 | |
| 22 | SCREWBINDING | 2 | |
| 23 | HOSE 1 | 1 | |
| 24 | HOSE 2 (8EA3) | 1 | |
| 25 | HOSE3 | 1 | |
| 26 | Хомут | 1 | |
| 27 | CLIPSCISSOR | 6 |
