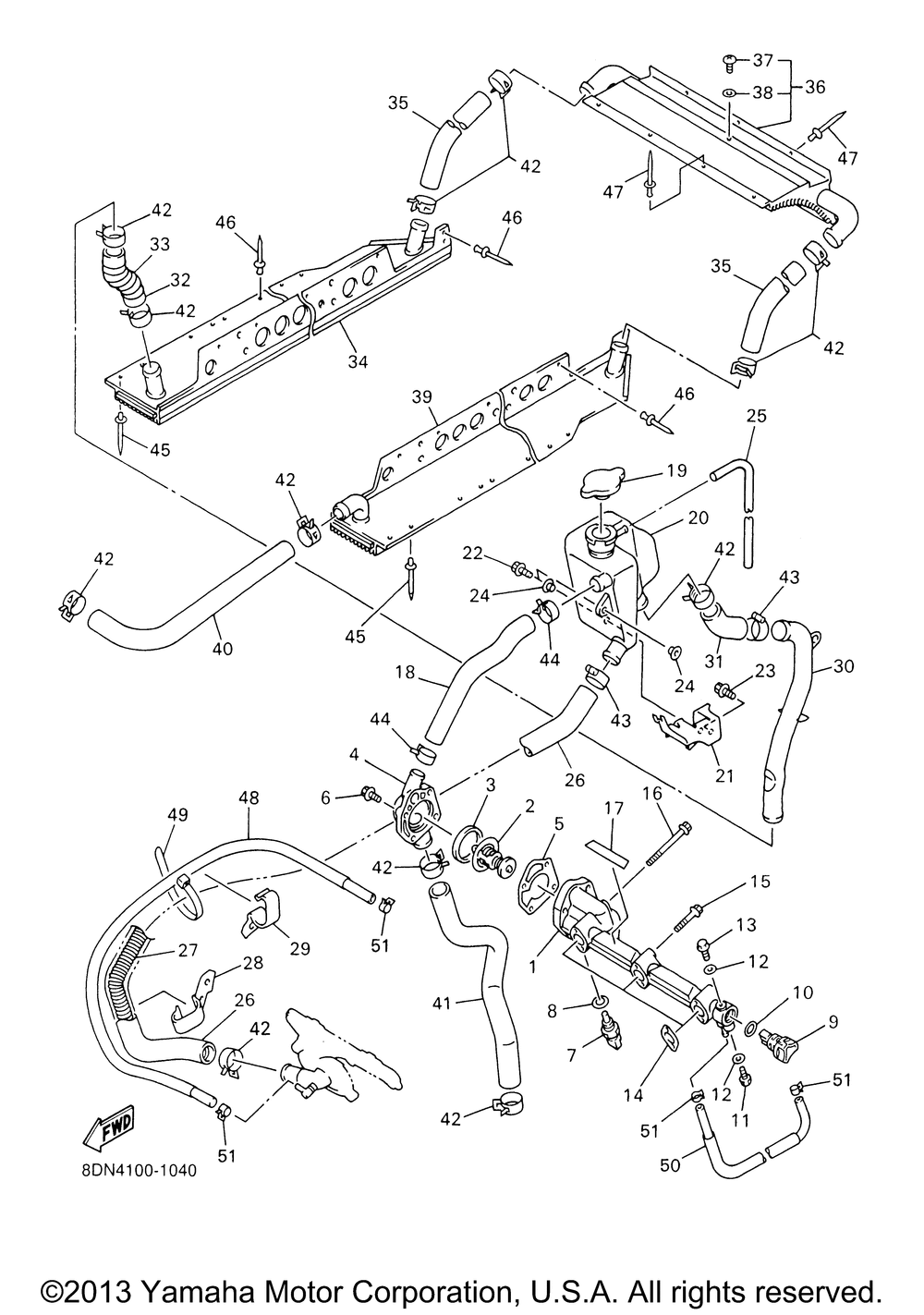

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | JOINT ASSY 1 | 1 | |
| 2 | THERMOSTAT | 1 | |
| 3 | SEALTHERMOSTAT | 1 | |
| 4 | COVER THERMOSTAT | 1 | |
| 5 | GASKET COVER | 1 | |
| 6 | BOLTFLANGE | 4 | |
| 7 | THERMOSENSOR ASSY | 1 | |
| 8 | WASHERPLATE | 1 | |
| 9 | COCK DRAIN | 1 | |
| 10 | O-RING (5 per pack) | 1 | |
| 11 | BOLT | 1 | |
| 12 | WASHERSEAL | 2 | |
| 13 | BOLT | 1 | |
| 14 | GASKET | 3 | |
| 15 | BOLT FLANGE | 4 | |
| 16 | BOLT FLANGE | 2 | |
| 17 | EMBLEM | 1 | |
| 18 | PIPE 1 | 1 | |
| 19 | CAPRADIATOR | 1 | |
| 20 | TANK RESERVE | 1 | |
| 21 | BRACKET 1 | 1 | |
| 22 | BOLTWITH WASHER (5 per pack) | 2 | |
| 23 | BOLT FLANGE | 1 | |
| 24 | COLLAR | 2 | |
| 25 | HOSE (L340) | 1 | |
| 26 | PIPE 2 | 1 | |
| 27 | SPRING COMPRESSIO | 1 | |
| 28 | CLAMP | 1 | |
| 29 | CLAMP | 1 | |
| 30 | PIPE 3 | 1 | |
| 31 | HOSE 2 | 1 | |
| 32 | HOSE3 | 1 | |
| 33 | SPRING COMPRESSIN | 1 | |
| 34 | HEAT EXCHANGER ASSY | 1 | |
| 35 | PIPE 4 | 2 | |
| 36 | HEAT EXCHANGER ASSY | 1 | |
| 37 | SCREWPAN HEAD | 1 | |
| 39 | HEAT EXCHANGER ASSY | 1 | |
| 40 | PIPE 5 | 1 | |
| 41 | PIPE 6 | 1 | |
| 42 | CLIPSCISSOR | 12 | |
| 43 | HOSE CLAMP ASSY | 2 | |
| 44 | CLIPSCISSOR | 2 | |
| 45 | RIVET BLIND | 6 | |
| 46 | RIVET BLIND (4.7X16.4 YELLOW) | 36 | |
| 48 | PIPE 7 | 1 | |
| 49 | Хомут | 2 | |
| 50 | PIPE 8 | 1 | |
| 51 | CLIPSCISSOR | 4 |
