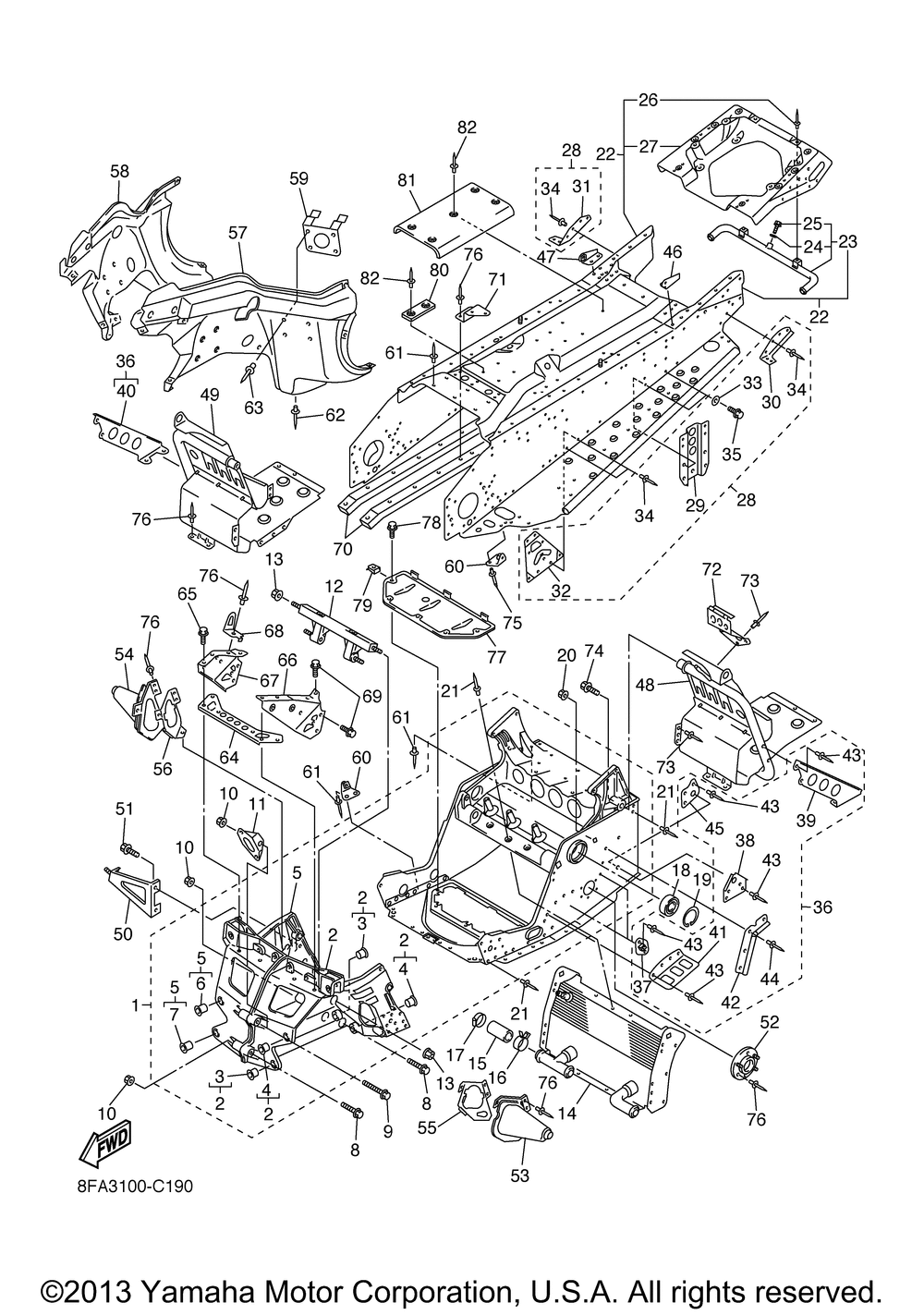

Yamaha RX-1 LIMITED EDITION RX10SJ/RX10J RX-1 LIMITED EDITION RX10SJ/RX10J FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLTFLANGE 3
9 BOLTFLANGE 1
10 NUT SELF LOCKING 4
11 BRACKET REGULATOR 1
12 BRACKET STEERING 1 1
13 NUTSELF-LOCKING 4
14 HEAT EXCHANGER ASSY 1
15 HOSE 7 1
16 CLIPSCISSOR 1
17 HOSE CLAMP ASSY 1
18 BEARING 1
19 CIRCLIP 54G 1
21 RIVET BLIND (4.7X16.4 YELLOW) 43
22 REAR FRAME COMP. 1
23 HEAT EXCHANGER ASSY 1
24 WASHERSEAL 1
25 BOLTFLANGE 1
27 REINEFORCEMENT FRAM 1
28 PANEL SUB FRAME KIT 1
29 BRACKET RR.TRACK SU 2
30 PATCH 3 1
31 PATCH 4 1
32 PATCH REAR FRAME 2
33 WASHERPLATE 4
35 BOLTFLANGE(4BD) 4
36 FRAME CONNECTION KIT 1
37 BRACKET CHAIN HOUSI 2
38 BRACKET MAIN TRACK 2
39 BRACKET 5 1
40 BRACKET 6 1
41 COVER 2 1
42 CLAMP WIREHARNESS 1
44 RIVET BLIND (4.8X18.6 BLACK) 4
45 BRACKET MAIN TRACK 2
46 BRACKET 1 1
47 BRACKET 2 1
48 FOOTREST COMP. 1 1
49 FOOTREST COMP. 2 1
50 BRACKET OIL TANK 1 1
51 BOLTFLANGE 2
52 HOUSING REINF SUB-A (L.H) 1
53 COVER 1 1
54 COVER 3 1
55 PLATE STRG BRACKET 1
56 PLATE STRG BRACKET 1
57 FRAME UNDER 1 UR FOR S3 1
57 FRAME UNDER 1 RXW10K (8FX1) 1
58 FRAME UNDER 2 UR FOR YB 1
58 FRAME UNDER 2 1
59 BRACKET GUARD FITTI 1
60 BRACKET 3 6
61 RIVETBLIND (4.8X15.2 SILVER) 18
63 RIVET BLIND (4.7X19.5 BLACK) 4
64 BUMPER FRONT 2 1
65 BOLT FLANGE 4
66 BRACKET FRONT 1
67 BRACKET FRONT BUMPE 1
68 STAY 1 2
69 BOLTFLANGE (JN5) 6
70 PROTECTOR FRAME 2
71 BRACKET 7 RS90NRL (8GH1) 4
72 HOOK 1
74 BOLTFLANGE(8AB) 2
75 RIVET BLIND (5 per pack) 4
77 PROTECTOR FRAME 1
78 BOLT 5
79 NUT SPRING (4ES) 5
80 SPACER 4
81 SHIELD HEAT 1
82 RIVETBLIND (4.8X12.3) 13
