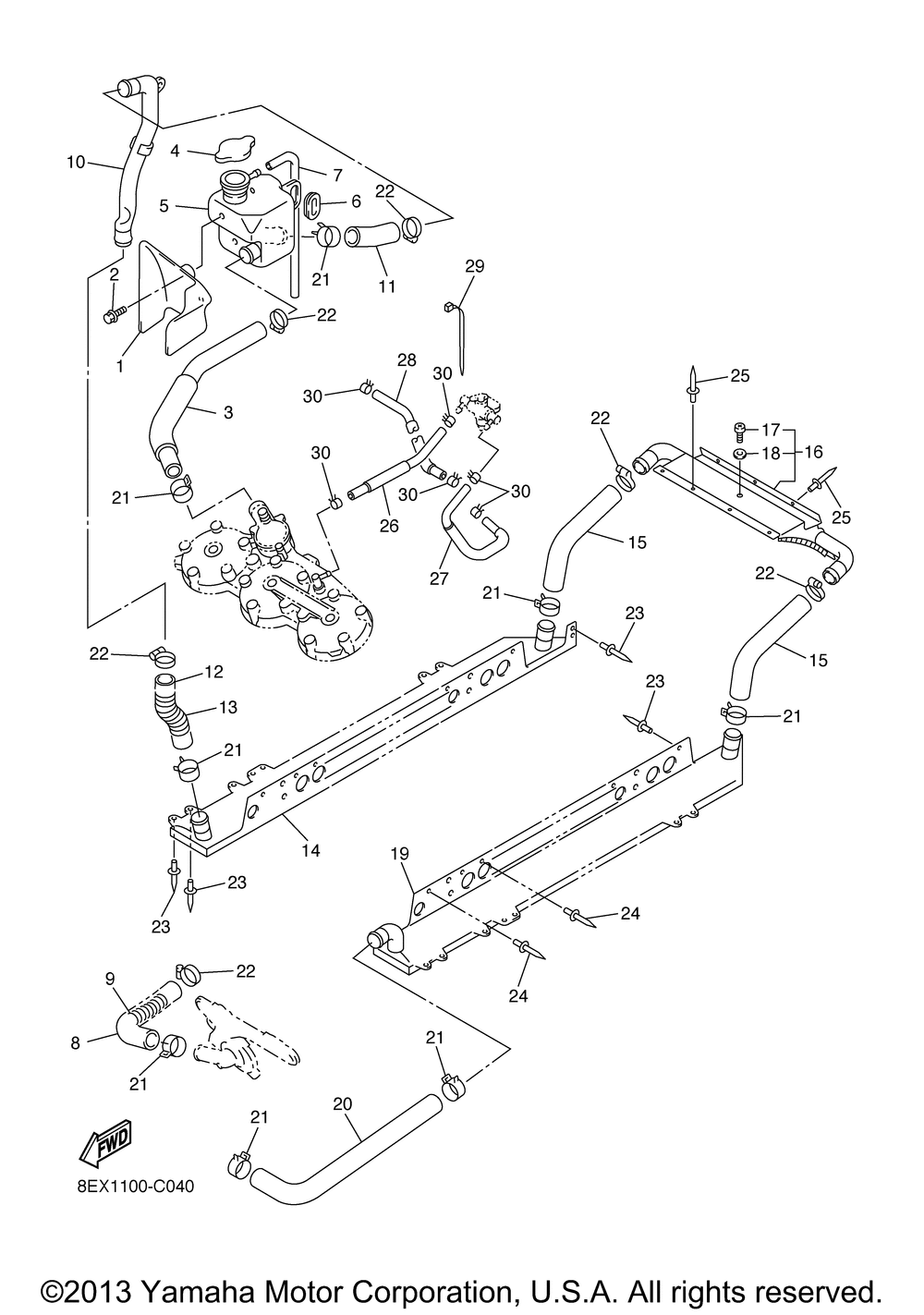

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | DUCT | 1 | |
| 2 | BOLT FLANGE | 2 | |
| 3 | PIPE 1 | 1 | |
| 4 | CAPRADIATOR | 1 | |
| 5 | TANK RESERVE | 1 | |
| 6 | GROMMET | 1 | |
| 7 | HOSE | 1 | |
| 8 | PIPE 2 | 1 | |
| 9 | SPRING COMPRESSION | 1 | |
| 10 | PIPE 3 | 1 | |
| 11 | HOSE 2 | 1 | |
| 12 | HOSE3 | 1 | |
| 13 | SPRING COMPRESSIN | 1 | |
| 14 | HEAT EXCHANGER | 1 | |
| 15 | PIPE 4 | 2 | |
| 16 | HEAT EXCHANGER ASSY | 1 | |
| 17 | SCREWPAN HEAD | 1 | |
| 18 | WASHERSEAL | 1 | |
| 19 | HEAT EXCHANGER | 1 | |
| 20 | PIPE 5 | 1 | |
| 21 | CLIPSCISSOR | 8 | |
| 22 | HOSE CLAMP ASSY | 6 | |
| 23 | RIVET BLIND | 8 | |
| 24 | RIVET BLIND (4.7X16.4 YELLOW) | 36 | |
| 26 | HOSE 1 | 1 | |
| 27 | HOSE 2 | 1 | |
| 28 | HOSE3 | 1 | |
| 29 | Хомут | 1 | |
| 30 | CLIPSCISSOR | 6 |
