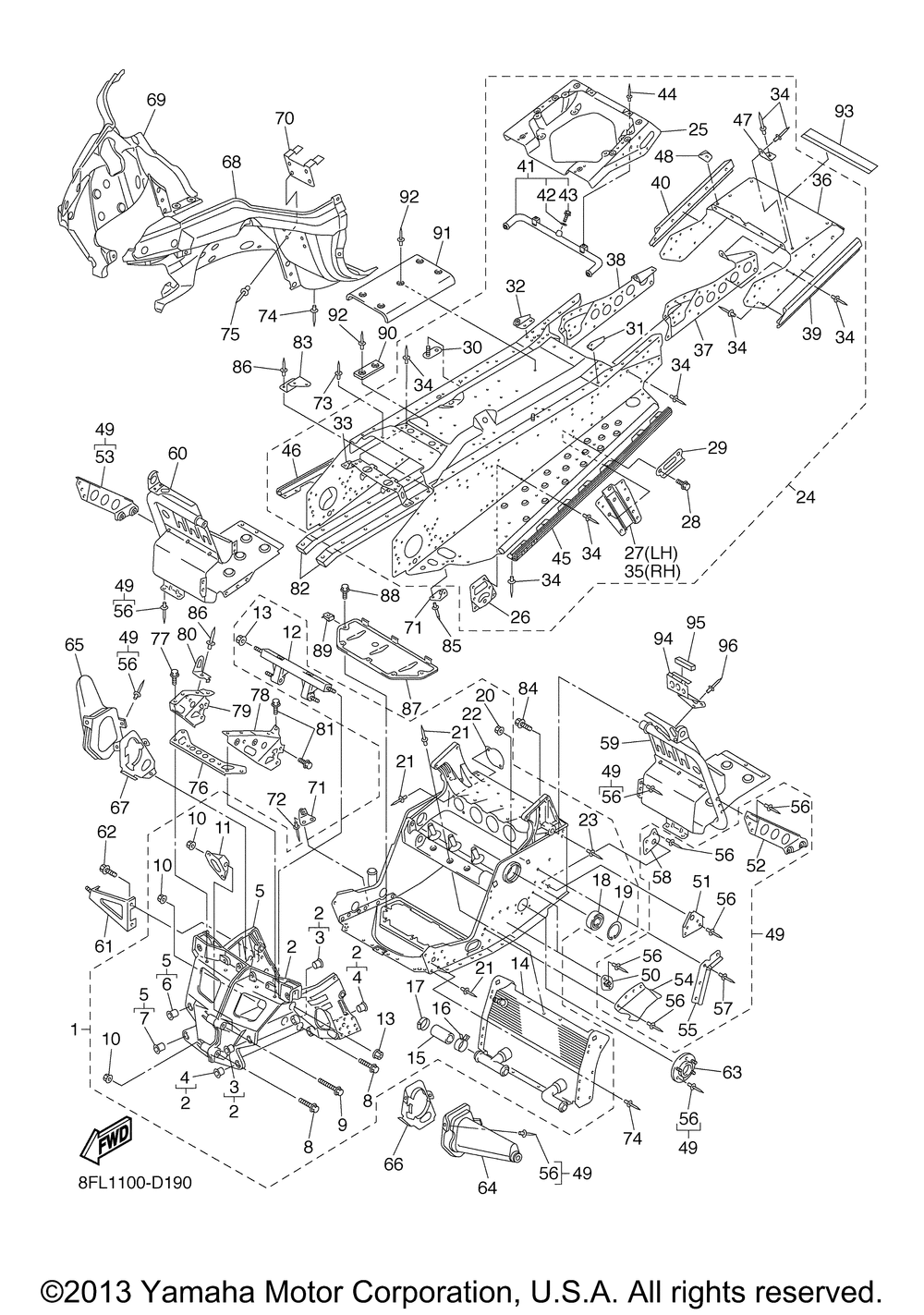

Yamaha RS Rage RSG90K RS Rage RSG90K FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BULKHEAD 1
3 BUSH SOLID 2
4 BUSH SOLID 2
5 BULKHEAD 2 1
8 BOLTFLANGE 3
9 BOLTFLANGE 1
10 NUT SELF LOCKING 4
11 BRACKET REGULATOR 1
12 BRACKET STEERING 1 1
13 NUTSELF-LOCKING 4
14 HEAT EXCHANGER ASSY 1
15 HOSE 7 1
16 CLIPSCISSOR 1
17 HOSE CLAMP ASSY 1
18 BEARING 1
19 CIRCLIP 54G 1
21 RIVET BLIND (4.7X16.4 YELLOW) 63
22 PLATE COVER 1
23 RIVET BLIND 6
24 REAR FRAME COMP. 1
25 REINEFORCEMENT FRAM 1
26 PATCH 5 2
27 BRACKET RR.TRACK SU 1
28 BOLT FLANGE 4
29 PLATE GUIDE 2
30 BRACKET FUEL TANK 2
31 BRACKET 1 1
32 BRACKET 2 1
33 PROTECTOR MUFFLER 1
35 BRACKET RR.TRACK SU 1
36 PANEL SUB FRAME 5 1
37 PATCH 3 1
38 PATCH 4 1
39 MEMBER SIDE 1 1
40 MEMBER SIDE 2 1
41 HEAT EXCHANGER ASSY 1
42 WASHERSEAL 1
43 BOLTFLANGE 1
44 RIVET BLIND (5 per pack) 2
45 REINFORCEMENT FOOTR 1
46 REINFORCEMENT FOOTR 1
47 PATCH 8 1
48 PATCH 9 1
49 FRAME CONNECTION KIT 1
50 BRACKET CHAIN HOUSI 2
51 BRACKET MAIN TRACK 2
52 BRACKET 5 1
53 BRACKET 6 1
54 COVER 2 1
55 CLAMP WIREHARNESS 1
57 RIVET BLIND (4.8X18.6 BLACK) 4
58 BRACKET MAIN TRACK 2
59 FOOTREST COMP. 1 1
60 FOOTREST COMP. 2 1
61 BRACKET OIL TANK 1 1
62 BOLTFLANGE 2
63 HOUSING REINF SUB-A (L.H) 1
64 COVER 1 1
65 COVER 3 1
66 PLATE STRG BRACKET 1
67 PLATE STRG BRACKET 1
68 FRAME UNDER 1 1
69 FRAME UNDER 2 1
70 BRACKET GUARD FITTI 1
71 BRACKET 3 6
72 RIVETBLIND (4.8X15.2 SILVER) 8
73 RIVET BLIND 16
75 RIVET BLIND (4.7X19.5 BLACK) 4
76 BUMPER FRONT 2 1
77 BOLT FLANGE 4
78 BRACKET FRONT 1
79 BRACKET FRONT BUMPE 1
80 STAY 1 2
81 BOLTFLANGE (JN5) 6
82 PROTECTOR FRAME 2
83 BRACKET 7 RS90NRL (8GH1) 4
84 BOLTFLANGE(8AB) 2
87 PROTECTOR FRAME 1
88 BOLT 5
89 NUT SPRING (4ES) 5
90 SPACER 4
91 SHIELD HEAT 1
92 RIVETBLIND (4.8X12.3) 13
93 LABEL WARNING 1
94 HOOK 1
95 DAMPER 1 1
