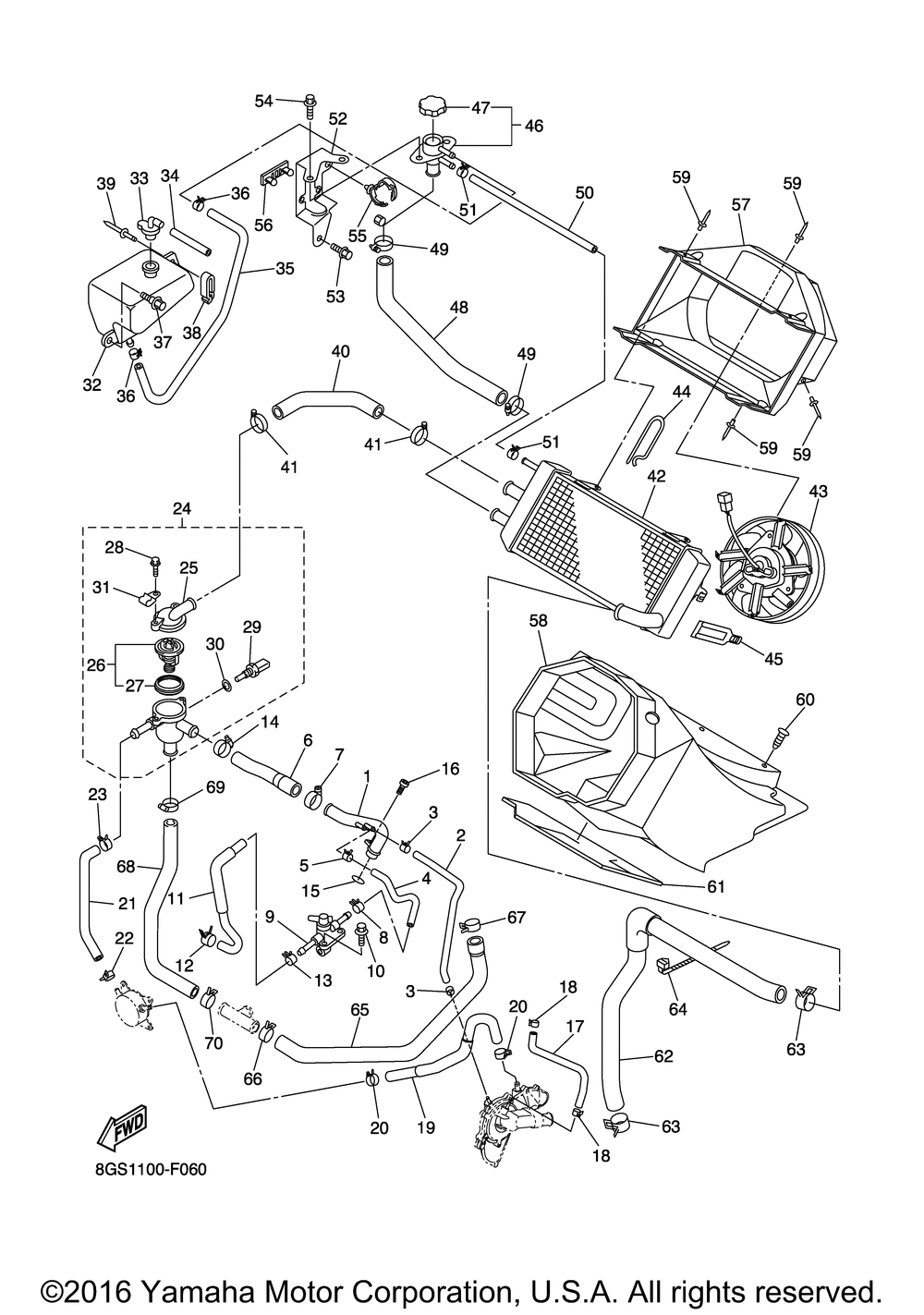

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PIPE 2 | 1 | |
| 2 | PIPE 5 | 1 | |
| 3 | CLIPSCISSOR | 2 | |
| 4 | HOSE 2 | 1 | |
| 6 | HOSE 2 | 1 | |
| 7 | HOSE CLAMP ASSY | 1 | |
| 9 | COCK ASSY | 1 | |
| 10 | BOLT FLANGE | 2 | |
| 11 | HOSE 4 | 1 | |
| 14 | HOSE CLAMP ASSY | 1 | |
| 15 | O-RING | 1 | |
| 16 | BOLT (4MY) | 1 | |
| 17 | HOSE 3 | 1 | |
| 19 | HOSE 5 | 1 | |
| 20 | CLIP | 2 | |
| 21 | HOSE 6 | 1 | |
| 24 | JOINT ASSY | 1 | |
| 25 | COVER THERMOSTAT | 1 | |
| 26 | THERMOSTAT ASSY | 1 | |
| 27 | SEAL THERMOSTAT | 1 | |
| 28 | BOLTFLANGE(6U1) | 2 | |
| 29 | THERMOSENSOR ASSY | 1 | |
| 30 | WASHERPLATE | 1 | |
| 31 | CLAMP | 1 | |
| 32 | TANK RECOVERY | 1 | |
| 33 | CAP | 1 | |
| 34 | HOSE (L10) (5 per pack) | 1 | |
| 36 | CLIPSCISSOR | 2 | |
| 37 | SCREWSPEC'L SHAPE | 2 | |
| 38 | CLAMP | 1 | |
| 39 | RIVETBLIND (4.8X23) | 1 | |
| 40 | HOSE 4 | 1 | |
| 42 | RADIATOR ASSY | 1 | |
| 43 | BLOWER ASSY | 1 | |
| 44 | PIN | 1 | |
| 45 | LATCH | 1 | |
| 46 | CONDUCTION ASSY | 1 | |
| 47 | CAP RADIATOR | 1 | |
| 48 | HOSE 5 | 1 | |
| 49 | HOSE CLAMP ASSY | 2 | |
| 50 | HOSE (L300) (L250) | 1 | |
| 52 | BRACKET 1 | 1 | |
| 53 | BOLT FLANGE | 2 | |
| 54 | BOLTFLANGE | 2 | |
| 55 | CLAMP (5 per pack) | 1 | |
| 56 | BRACKET | 1 | |
| 57 | COVER RADIATOR | 1 | |
| 58 | DUCT COOLER | 1 | |
| 59 | RIVET BLIND | 7 | |
| 60 | RIVETSPEC'L SHAPE (5 per pack) | 6 | |
| 61 | LINING SHROUD 1 | 1 | |
| 62 | PIPE 7 | 1 | |
| 63 | CLIP SCISSOR | 2 | |
| 64 | CLAMP HOSE | 1 | |
| 65 | PIPE 8 | 1 | |
| 66 | CLIPSCISSOR | 1 | |
| 67 | CLIP | 1 | |
| 68 | PIPE 9 | 1 |
