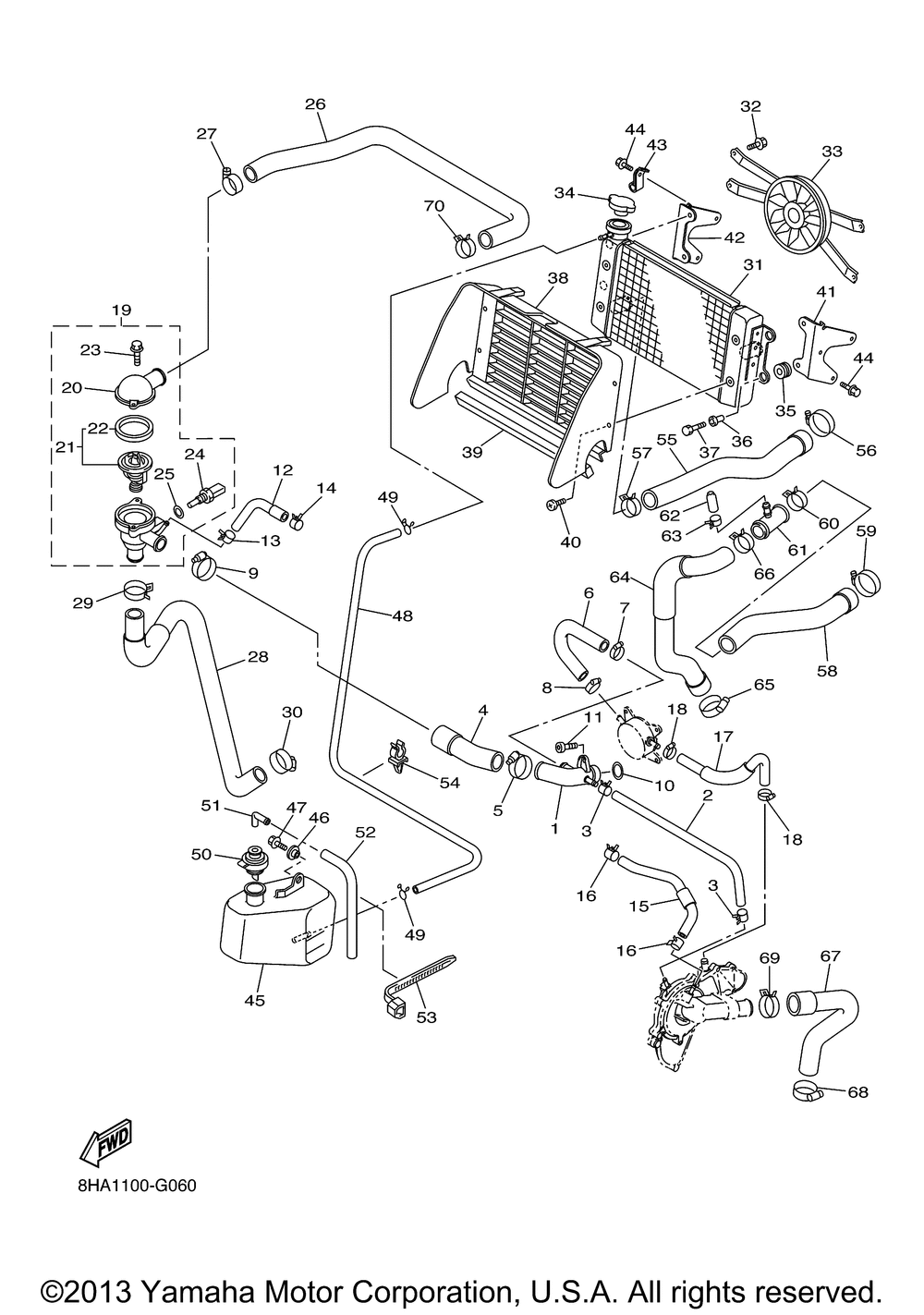

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | PIPE 2 | 1 | |
| 2 | PIPE 5 | 1 | |
| 3 | CLIP | 2 | |
| 4 | HOSE 2 | 1 | |
| 5 | HOSE CLAMP ASSY | 1 | |
| 6 | HOSE 6 | 1 | |
| 7 | HOSE CLAMP ASY | 1 | |
| 10 | O-RING | 1 | |
| 11 | BOLT | 1 | |
| 12 | HOSE 2 | 1 | |
| 14 | CLIP | 1 | |
| 15 | HOSE 3 | 1 | |
| 17 | HOSE 5 | 1 | |
| 19 | JOINT ASSY | 1 | |
| 20 | COVER THERMOSTAT | 1 | |
| 21 | THERMOSTAT ASSY | 1 | |
| 22 | SEAL THERMOSTAT | 1 | |
| 23 | BOLT FLANGE | 2 | |
| 24 | THERMOSENSOR ASSY | 1 | |
| 25 | WASHERPLATE | 1 | |
| 26 | HOSE 4 | 1 | |
| 27 | HOSE CLAMP ASSY | 1 | |
| 28 | PIPE 8 | 1 | |
| 30 | CLIPSCISSOR | 1 | |
| 31 | RADIATOR ASSY | 1 | |
| 32 | BOLT BLOWER HOLDING | 4 | |
| 33 | BLOWER ASSY | 1 | |
| 34 | CAP RADIATOR | 1 | |
| 35 | GROMMET | 4 | |
| 36 | COLLAR | 4 | |
| 37 | BOLTHEXAGON | 4 | |
| 38 | DUCT | 1 | |
| 39 | DAMPER RADIATOR | 1 | |
| 40 | SCREWSPEC'L SHAPE | 4 | |
| 41 | STAY RADIATOR | 1 | |
| 42 | STAY RADIATOR | 1 | |
| 43 | HOLDER BRAKE HOSE | 1 | |
| 44 | BOLTFLANGE | 4 | |
| 45 | TANK RECOVERY | 1 | |
| 46 | COLLAR | 1 | |
| 48 | HOSE (L870) | 1 | |
| 49 | CLIPSCISSOR (5 per pack) | 2 | |
| 50 | CAP | 1 | |
| 51 | ELBOW | 1 | |
| 52 | HOSE | 1 | |
| 53 | Хомут | 1 | |
| 54 | CLAMP | 2 | |
| 55 | HOSE 5 | 1 | |
| 58 | HOSE 7 | 1 | |
| 61 | PIPE 1 | 1 | |
| 62 | PLUGBLIND | 1 | |
| 63 | CLIPSCISSOR | 1 | |
| 64 | HOSE 8 | 1 | |
| 67 | HOSE 6 | 1 | |
| 69 | CLIP | 1 |
