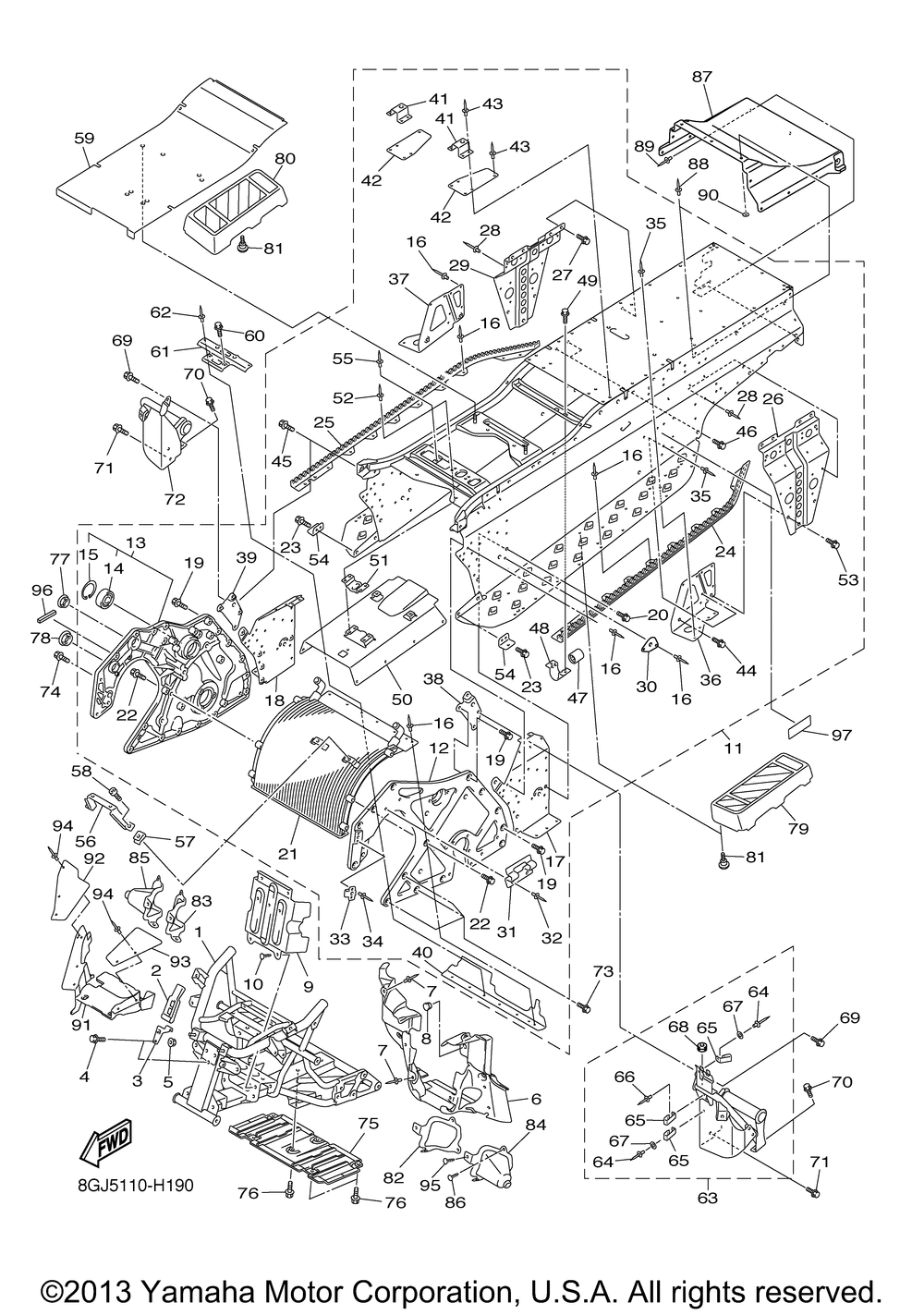

Yamaha VENTURE LITE PZ50VTYR/PZ50VTYS VENTURE LITE PZ50VTYR/PZ50VTYS FRAME
FRAME
№ Наименование Примечание Кол-во
1 FRONT FRAME COMP. 1
2 BAND 1
3 BRACKET 4 1
4 BOLT BUTTON HEAD 1
5 NUTFLANGE (SILVER) 1
6 PANEL SUB FRAME 1 1
7 RIVETBLIND (4.8X19 BLACK) (5 per pack) 5
8 PLUGSPEC'L SHAPE 1
9 PROTECTOR FRAME A 1
10 RIVET 4
11 REAR FRAME COMP. 1
12 REINF. PANELL FRAME 1
13 HOUSING REINF SUB-A (R.H) 1
14 BEARING 1
15 CIRCLIP 1
16 RIVET BLIND (4.7X16.4 YELLOW) 77
17 BRACKET MAIN TRACK 1
18 BRACKET MAIN TRACK 1
19 BOLT FLANGE 10
20 BOLT FLANGE 2
21 HEAT EXCHANGER ASSY 1
22 BOLTFLANGE(8AB) 6
23 BOLT FLANGE 2
24 REINFORCEMENT FOOTR 1
25 REINFORCEMENT FOOTR 1
26 BRACKET RR.TRACK SU 1
29 BRACKET RR.TRACK SU 1
30 BRACKET MAIN TRACK 2
31 HOOK 1
33 PLATE SPRING 1
34 RIVET BLIND (3.2X13.8) 2
36 PATCH 7 1
37 PATCH 8 1
38 PATCH 3 1
39 PATCH 4 1
40 PLATE 1
41 BRACKET SEAT 2
42 PLATE 2
44 BOLT FLANGE 2
45 BOLTFLANGE (3HP) 2
46 BOLTFLANGE 4
47 DAMPER MUFFLER 2
48 BRACKET DAMPER 2
49 BOLT BUTTON HEAD 4
50 SHIELD HEAT 1
51 BRACKET SILENCER 1 1
54 PATCH 7 2
55 RIVET BLIND (4.8X12.1 YELLOW) 5
56 STAY 1 1
57 NUT SPRING (4ES) 2
58 BOLT (4MY) 2
59 PANEL SUB FRAME 5 1
60 SCREW (5 per pack) 2
61 STAY 2 1
63 FOOTREST COMP. 1 1
64 RIVET BLIND (4.8X12 YELLOW) 2
65 CLAMP (51Y) 3
66 RIVETBLIND (4.8X15.2 SILVER) 1
67 WASHER PLATE 2
68 GROMMET FOR CALIFORNIA 1
70 BOLT FLANGE 4
71 BOLT FLANGE 2
72 FOOTREST COMP. 2 1
74 BOLTFLANGE (JN5) 2
75 PROTECTOR 1
76 BOLT 6
77 GROMMET 1
78 GROMMET 1
79 FOOTREST REAR 1 AP 1
80 FOOTREST REAR 2 AP 1
81 SCREW TAPPING (5 per pack) 10
82 PLATE STRG BRACKET 1
83 PLATE STRG BRACKET 1
84 COVER 1 1
85 COVER 3 1
87 PROTECTOR 7 1
89 RIVETBLIND (4.7X16.4 BLACK) 3
90 WASHERPLATE 11
91 PROTECTOR FRAME 1
92 SEAL 4 1
93 SEAL 5 1
94 RIVETSPEC'L SHAPE (5 per pack) 5
95 RIVET 2
96 DAMPER 1 1
97 PLATE EPA OFFROAD 2 1
