SKI-DOO Expedition TUV 600 H.O. SDI REV-XU Expedition TUV 600 H.O. SDI REV-XU 08- Rear Suspension

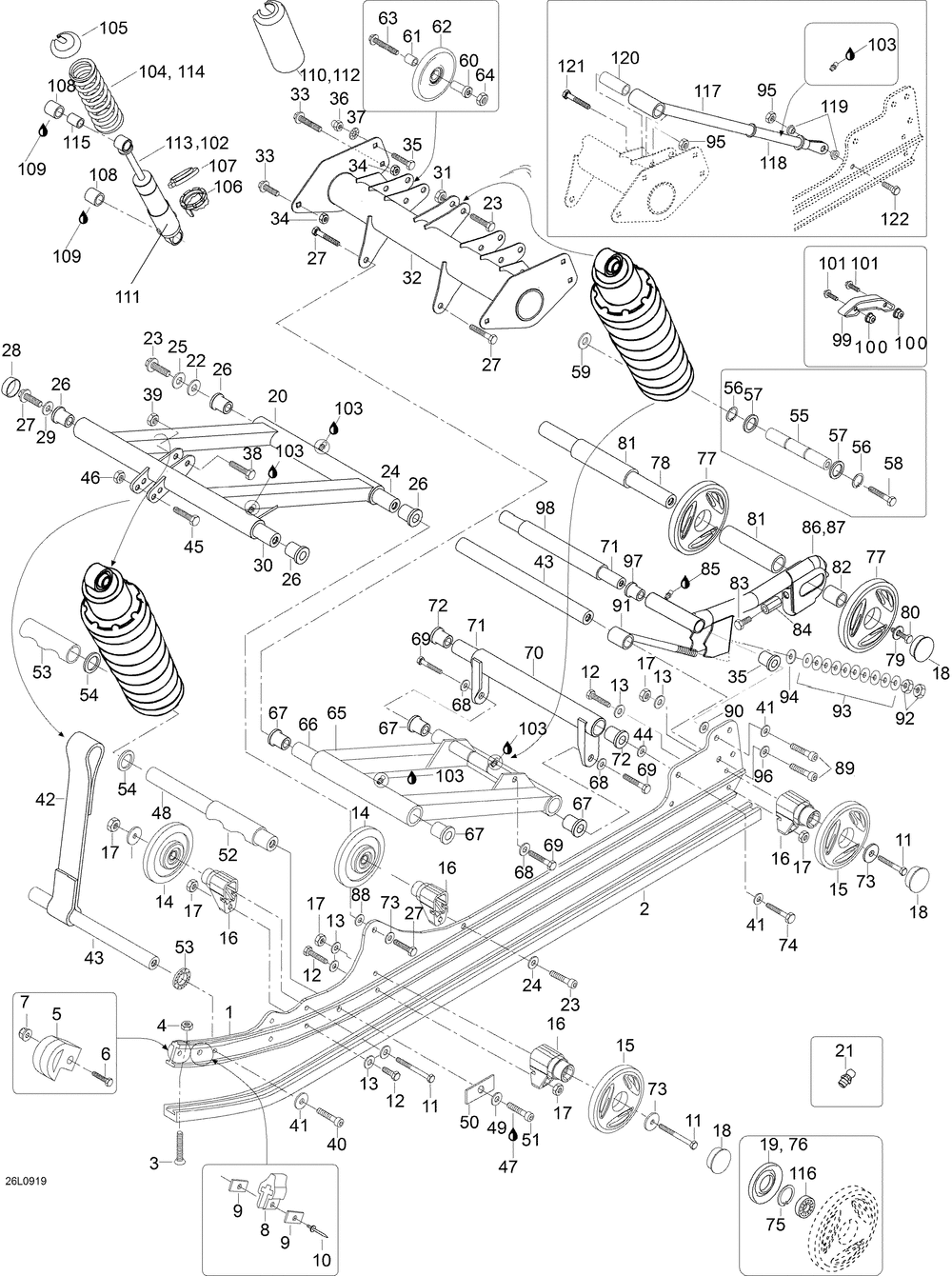

08- Rear Suspension
№ Наименование Примечание Кол-во
1 RUNNER 2
2 SLIDER SHOE 2
3 PHILLIPS SCREW M6 X 25 (4.000 per pack) 2
4 Elastic Stop Nut M6 2
5 RUNNER PROTECTOR 2
6 HEX. FLANGED SCREW M5 X 25 2
7 FLANGED ELASTIC NUT M5 (4.000 per pack) 2
8 RUBBER STOPPER 2
9 RONDELLE * WASHER (6.000 per pack) 4
10 POP RIVET 3/16" (5.000 per pack) 2
11 HEX. FLANGE SCREW M6 X 70 8
12 Hex. Flanged Screw M6 X 25 8
13 WHEEL CUP M6 8
15 WHEEL 141 WITH PATTERN ASS Y YELLOW Includes 15 to 16 4
16 CASTED SUPPORT 8
17 Hex. Flanged Elastic Nut M6 16
18 WHEEL CAP (10.000 per pack) 6
19 LABYRINTH SEAL 8
20 FRONT ARM 1
21 GREASE FITTING (10.000 per pack) 9
22 RONDELLE-FREIN *WASHER-LOCK (5.000 per pack) 2
23 HEX. SCREW M10 X 45 (10.000 per pack) 3
24 LOWER SAFT FRONT ARM 1
25 SHIM 105/30X15 ZNE(1=10PCS) (10.000 per pack) 2
26 COUSSINET *CUSHION 4
27 HEX. SCREW M12 X 60 (10.000 per pack) 2
28 CAPUCHON *NUT CAP 2
29 CONICAL SPRING WASHER M12 500 F. (5.000 per pack) 2
30 UPPER SHAFT FRONT ARM 1
31 NUT-STOP ELASTIC DIN.985 Model with Package S & Engine SM6 (4.000 per pack) 1
32 REAR BEAM 1
34 Hex. Elastic Stop Nut M8 4
35 CARRIAGE BOLT M8 X 16 (10.000 per pack) 2
36 CAP NUT M8 DIN1587-6 ZNE(1=10PCS) (10.000 per pack) 2
38 HEX. SCREW M10 X 50 (10.000 per pack) 1
40 SCREW-SOCKET HD.DIN 912 2
41 Flat Washer 10 mm 2
42 STRAP STOPPER 1
43 AXE *SHAFT 1
44 FIXING WASHER STARLOCK 2
45 HEX. SCREW M8 X 45 (10.000 per pack) 1
47 LOCTITE 271 10 ML 0
48 LOWER SHAFT SHOCK 1
49 LOCK WASHER D10 (NORD-LOCK)(1=10PCS) (10.000 per pack) 2
50 REINFORCEMENT WASHER 2
51 SCREW-SOCKET HD.DIN 912 2
52 LIMITER 1
53 SLEEVE 1
54 SHIM RING 20X28X1.5 DIN 988(1=10PCS) (10.000 per pack) 2
55 ESSIEU *REARSHOCK SHAFT 1
56 CIRCLIP 20X1.75 DIN471 2
57 SHIM RING 20X28X1 DIN 988(1=10PCS) (10.000 per pack) 2
58 HEX. SCREW M10 X 40 (10.000 per pack) 2
60 IDLER WHEEL SLEEVE 2
61 IDLER WHEEL SLEEVE 2
62 BLACK WHEEL ASS Y 141 MM Package XRS 2
63 Hex. Screw M8 X 70 2
65 REAR ARM WELD LIGHT 1
66 SHAFT 2
67 FLANGE BEARING (CUSHION) 4
70 REAR SWING 1
77 WHEEL 165 WITH PATTERN ASS Y YELLOW Inclus 25 4
78 REAR AXLE 1
79 RONDELLE *WASHER (2.000 per pack) 2
80 HEX. SCREW WITH NYLON (10.000 per pack) 2
81 SPACER 3
82 SPACER 2
83 HEX. SCREW M10 X 100 (5.000 per pack) 2
84 SPACER (10.000 per pack) 2
86 RALLONGE GA. *EXTENSION SWING LH 1
87 RALLONGE DR. *EXTENSION SWING RH 1
91 ADJUSTMENT SCREW 2
92 Hex. Nut M10 4
93 CUP SPRING 28X10.2X1.25 (1=10PCS) (10.000 per pack) 60
94 FLAT WASHER 10 MM (5.000 per pack) 2
95 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 2
98 SLEEVE 1
99 SLIDING PAD 2
101 BOLT CARRIAGE DIN.603 (2.000 per pack) 4
102 SHOCK REAR 1
104 WHITE SPRING 255 MM-65 N/MM 1
105 SPRING STOPPER 2
106 ADJUSTMENT CAM 2
107 SPRING GUIDE 2
108 SLEEVE 4
110 SHOCK PROTECTOR 1
111 CENTER SHOCK 1
114 WHITE SPRING 1
115 BUSHING 2
116 Ball Bearing 0
117 POKER TUBE*POKER TUBE 2
118 POKER SHAFT WELD 2
119 AJOUT *INSERT 4
120 BEARING SLEEVE 2
121 HEX. SCREW M8 X 60 (10.000 per pack) 2
122 HEX. SCREW M10 X 35 (10.000 per pack) 2
