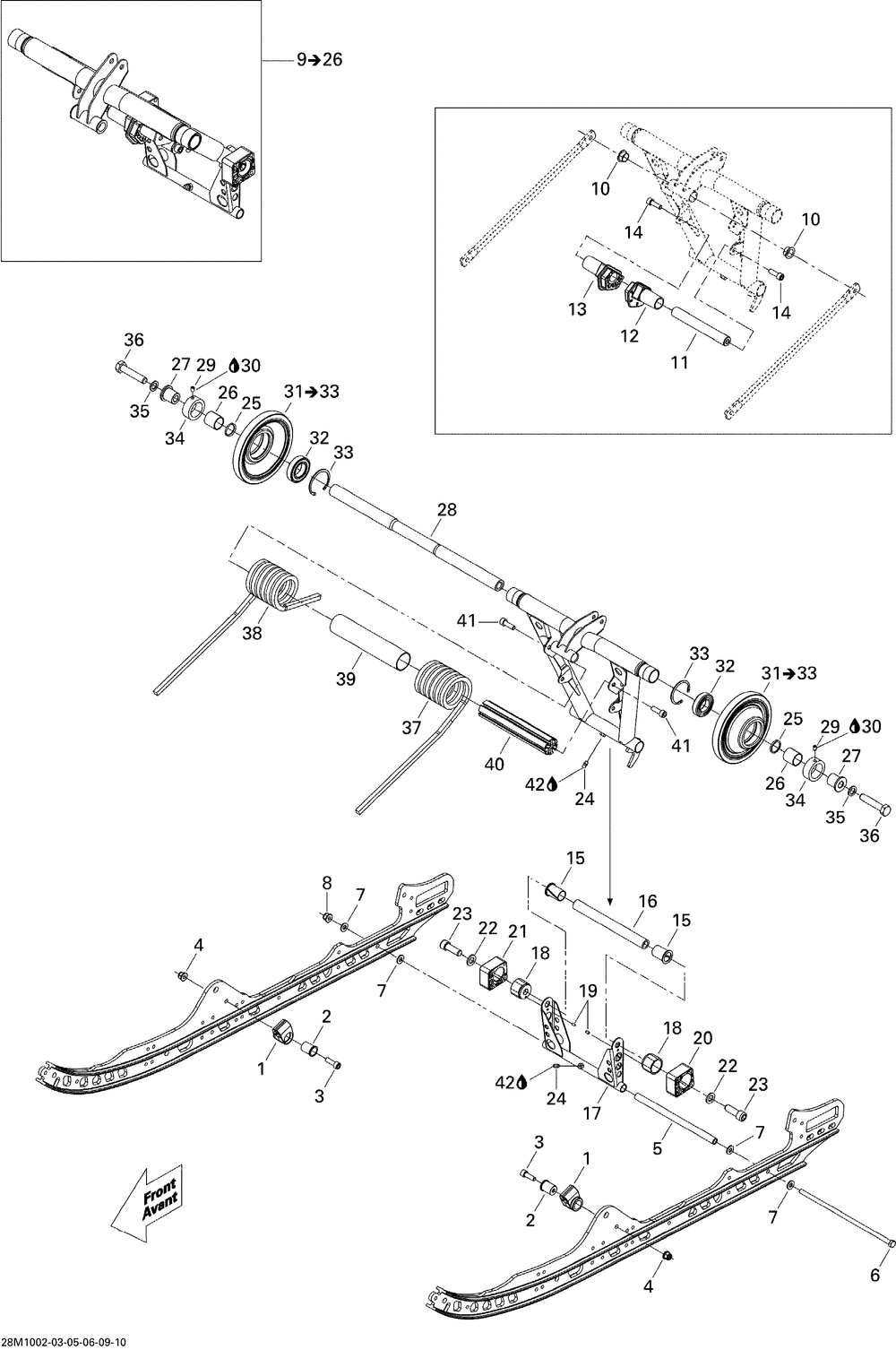

08- Rear Arm 600HO ETEC

№	Наименование	Кол-во
1	SPRING SUPPORT	2
2	RETAINER CUSHION (2.000 per pack)	2
3	Socket Head Screw M8 X 25	2
4	Hex. Flanged Elastic Nut M8	2
5	PIVOT ARM AXLE	1
6	BOLT M8 X 248MM	1
7	Washer	4
9	REAR ARM ASS Y	1
10	SWIVEL BUSHING	2
11	SPRING CAM AXE	1
12	LH SPRING CAM	1
13	RH SPRING CAM	1
14	SOCKET HEAD SCREW M8 X 25 SCOTCH GRIP (4.000 per pack)	2
15	CUSHION	2
16	LOWER SHAFT	1
17	PIVOT ARM	1
18	BLOCK GUIDE (2.000 per pack)	2
19	DOWEL PIN 4 X 8 MM (10.000 per pack)	2
20	LH BLOCK 4 POSITIONS	1
21	RH BLOCK 4 POSITIONS	1
22	RONDELLE *WASHER (5.000 per pack)	2
23	SOCKET HEAD SCREW M12 X 35 SCOTCH GRIP (5.000 per pack)	2
24	GREASE FITTING (10.000 per pack)	2
25	RONDELLE *WASHER	2
26	COUSS. ALL *EXT. BUSHING	2
27	COUSSINET *BUSHING	2
28	UPPER SHAFT	1
29	SOCKET SET SCREW M6 X 8 (5.000 per pack)	2
30	LOCTITE 243 10 ML	0
31	BLACK WHEEL ASS Y 144 MM	2
32	BALL BEARING	1
33	RETAINING RING	1
34	RETAINING RING (2.000 per pack)	2
35	RONDELLE *WASHER (25.000 per pack)	2
36	HEX. SCREW M12 X 60 SCOTCH GRIP (5.000 per pack)	2
37	BLACK LH SPRING SQUARE	1
38	BLACK RH SPRING SQUARE	1
39	PLASTIC BUSHING	1
40	SPRING AXLE	1
42	SUSPENSION GREASE 10 X 400 G	0
