SKI-DOO FREERIDE 154R, 800RE XP FREERIDE 154R, 800RE XP 08- Rear Suspension

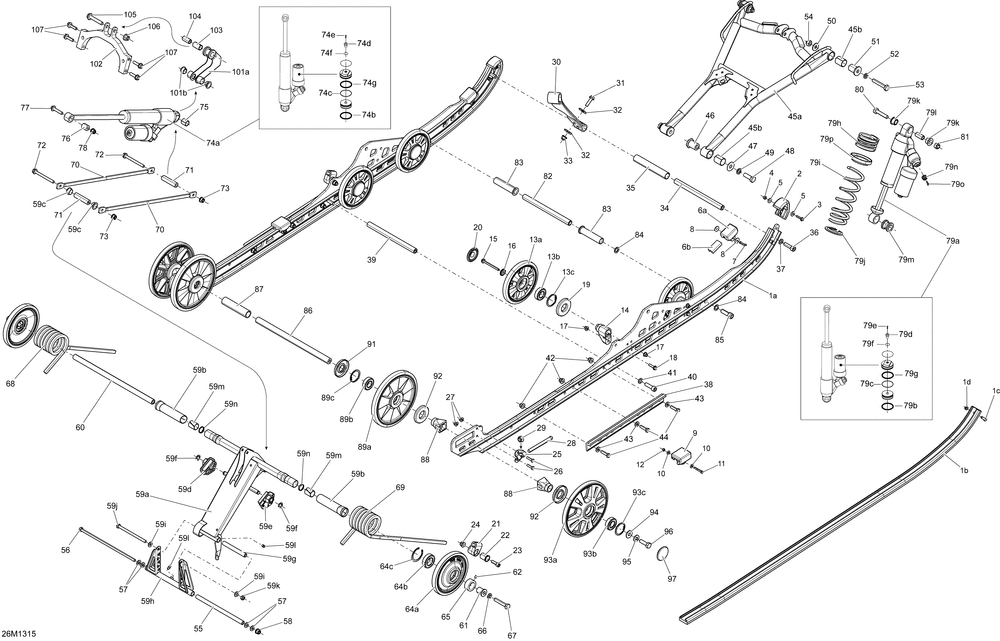

08- Rear Suspension
№ Наименование Примечание Кол-во
1a RUNNER 154" ORANGE 2
1b SLIDER SHOE 154" 154" 2
1c PHILLIPS SCREW M6 X 25 (4.000 per pack) 2
1d Elastic Stop Nut M6 2
2 RUNNER PROTECTOR 2
3 HEX. FLANGED SCREW M5 X 25 2
4 FLANGED ELASTIC NUT M5 (4.000 per pack) 2
5 RONDELLE *WASHER (4.000 per pack) 4
6a RUBBER STOPPER 2
6b REINFORCEMENT STOPPER 2
7 POP RIVET 3/16" (5.000 per pack) 2
8 RONDELLE * WASHER (6.000 per pack) 4
9 RAIL STOPPER MIDDLE FREERIDE 2
10 RONDELLE *WASHER 4
11 HEX. CAP SCREW M5 X 35 (2.000 per pack) 2
12 NUT-STOP ELASTIC DIN.985 (10.000 per pack) 2
13a BLACK WHEEL ASS Y 152 MM 4
13b BALL BEARING 4
13c RETAINING RING 4
14 CASTED SUPPORT 4
15 HEX. FLANGE SCREW M6 X 70 4
16 WHEEL CUP M6 4
17 Hex. Flanged Elastic Nut M6 8
18 HEX. FLANGE SCREW M6 X 25 4
19 LABYRINTH SEAL 4
20 BLACK WHEEL CAP 4
21 SPRING SUPPORT 2
22 RETAINER CUSHION (2.000 per pack) 2
23 SOCKET SCREW M8 X 25 (2.000 per pack) 2
24 NUT-FLANGE ELASTIC DIN.6926 2
25 TENDEUR *TENSIONER 2
26 HEX. SCREW CAP FULL THREAD M6 X 25 (5.000 per pack) 4
28 HEX SCREW M10 X 100 2
29 Elastic Locking Nut M10 2
30 STOPPER STRAP 1
31 HEX. FLANGED SCREW M8 X 30 (10.000 per pack) 1
32 FLAT WASHER 8 MM 2
34 AXLE STRAP 1
35 SPACER 1
36 SOCKET HEAD SCREW M10 X 35 2
37 Washer 2
38 PAINTED REINFORCEMENT RAIL 2
39 LOWER SHAFT 1
43 Washer 6
44 HEX. CAP SCREW M8 X 30 6
45a FRONT ARM ASS Y Includes 45a to 45b 1
45b COUSSINET *BUSHING 4
46 LOWER AXLE 2
47 RONDELLE *WASHER (5.000 per pack) 2
48 HEX. CAP SCREW M12 X 35 (5.000 per pack) 2
49 RONDELLE *WASHER (5.000 per pack) 2
50 RONDELLE *WASHER (4.000 per pack) 2
51 AXE *AXLE 2
53 Hex. Cap Screw M10 X 60 2
55 PIVOT ARM AXLE 1
56 BOLT M8 X 248MM 1
59a REAR ARM Includes 3000001 to 3000002 1
59b BUSHING 2
59c SWIVEL BUSHING 2
59d LH CAM ADJUSTER 1
59e RH CAM ADJUSTER 1
59f E-Circlip 2
59g UPPER AXLE PIVOT ARM 1
59h PIVOT ARM 1
59i Washer 2
59j BOLT M8 SHORT 1
59k Hex. Elastic Stop Nut M8 1
59l GREASE FITTING (10.000 per pack) 2
59m EXTENDED BUSHING 2
59n RONDELLE *WASHER 2
60 UPPER SHAFT 1
61 COUSSINET *BUSHING 2
62 SOCKET SET SCREW M6 X 8 (5.000 per pack) 2
64a BLACK WHEEL ASS Y 155 MM 2
64b BALL BEARING 2
64c RETAINING RING 2
65 RETAINING RING 2
67 HEX. SCREWS.GRIP M10 X 55 2
68 LH SPRING 1
69 RH SPRING 1
70 TIGE ACCEL. *LINK ROD 2
71 AXLE BAR (LONG) Model-LE 2
72 SCREW-HEX.FLANGE DIN.6921 (2.000 per pack) 2
74a REAR SHOCK Includes 74a to 74g 1
74b O-RING 1
74c PISTON RING 1
74d AIR VALVE 1
74e SCREW *VIS 1
74f O-RING 1
74g O-RING 1
75 BUSHING 1
76 CUSHION Model-LE & SE (2.000 per pack) 1
77 Hex. Flanged Screw M8 X 40 1
79a CENTER SHOCK ASS Y Includes 79a to 79g 1
79h BLACK SPRING 1
79i BLACK SPRING 1
79j SPRING STOPPER Model-EUROPE 1
79k Bushing Urethane 2
79l Bushing 1
79m COUSSINET URETH*CUSHION-URETH. 1
79n ADJUSTMENT KNOB 1
79o Allen Screw M3 X 0.5 X 10 1
79p SPRING SPACER 1
80 HEX. SCREW M10 X 50 (10.000 per pack) 1
82 CENTER SHOCK SHAFT 1
83 ENTRETOISE *SPACER 2
85 SOCKET HEAD SCREW M12 X 35 2
86 REAR AXLE 1
87 REAR SPACER 1
88 REAR WHEEL SPACER 4
89a BLACK WHEEL ASS Y 200 MM 2
91 LABYRINTH SEAL 2
93a WHEEL 200 BLACK Includes 600 to 600002 2
94 RONDELLE *WASHER (3.000 per pack) 2
95 CONICAL SPRING WASHER 10 MM (10.000 per pack) 2
96 HEX. SCREW WITH NYLON (10.000 per pack) 2
101a ROCKER 1
102 ROCKER SUPPORT 1
103 COUSSINET *CUSHION 1
105 FLANGED HEX. SCREW M10 X 55 1
106 Hex. Flanged Elastic Nut M10 1
107 Hex. Flanged Screw M8 X 30, Scotch Grip 4
