SKI-DOO MXZ SPORT 600 REV-XP MXZ SPORT 600 REV-XP 10- Electrical System _33M1412

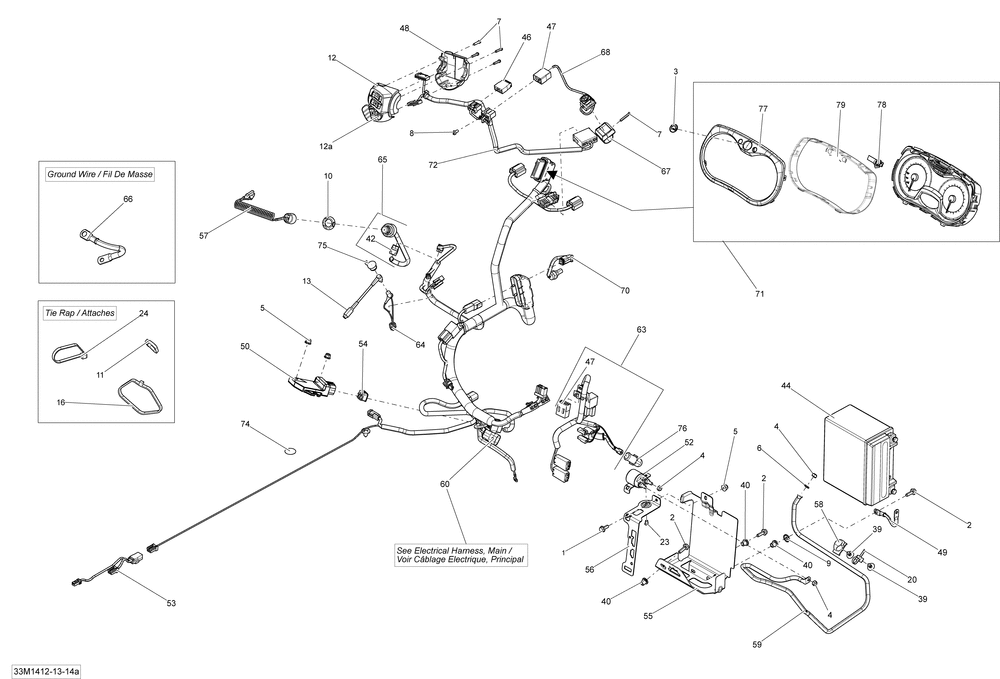

10- Electrical System _33M1412
№ Наименование Примечание Кол-во
1 Hex. Flanged Screw M6 X 16 1
2 Hex. Flanged Screw M6 X 20 0
3 BRP LOGO 20MM 1
4 Elastic Stop Nut M6 3
5 Hex. Flanged Elastic Nut M6 0
6 FLAT WASHER 6 MM (10.000 per pack) 1
7 TORX SCREW tahos_8-18 (10.000 per pack) 5
8 PAN SCREW FORMING 7500C 1
9 Lock Washer Serrated M6 0
10 Safety Nut (DESS Switch) 1
11 Tie-Rap 142 mm 1
12 LH HOUSING 1
12a START/RER BUTTON 1
16 Tie-Rap 350 mm 0
20 Tie-Rap 173 mm 1
23 Pop Rivet 3/16" 1
24 Tie-Rap 180 mm 0
39 DART GS Black A19N Model (10.000 per pack) 2
40 Insert 3
44 BATTERY ASS Y 18 AMPERES 1
46 MALE TERMINAL HOUSING 6 CIRCUITS 1
47 MALE TERMINAL HOUSING 8 CIRCUITS 1
48 HOUSING SWITCH PLATE 1
49 GROUND WIRE 1
50 VOLTAGE REGULATOR 1
52 STARTER RELAY 1
54 LOCK 1
55 BATTERY SUPPORT ASS Y 1
56 LANIERE BATTERI*STRIP-BATTERY 1
57 DESS CAP 1
58 CLIP 1
59 BATTERY WIRE 1
60 MAIN HARNESS ASS Y 600 1
63 ELECTRIC START HARNESS 1
65 DESS SWITCH Includes 6 To 9 1
66 GROUND WIRE 1
67 KILL SWITCH SUPPORT 1
68 KILL SWITCH Includes 43 To 44 1
70 TEMPERATURE SENSOR 1
71 SPEEDOMETER 1
72 STEERING WIRING HARNESS 1
74 ADHESIVE PATCH 1
76 PROTECTOR CAP 1
77 GAUGE RING 1
78 SPEEDOMETER BUTTON RS STD 1
79 Lens 1
