SKI-DOO MXZ SPORT 600 REV-XP MXZ SPORT 600 REV-XP 02- Carburetor _16M1412

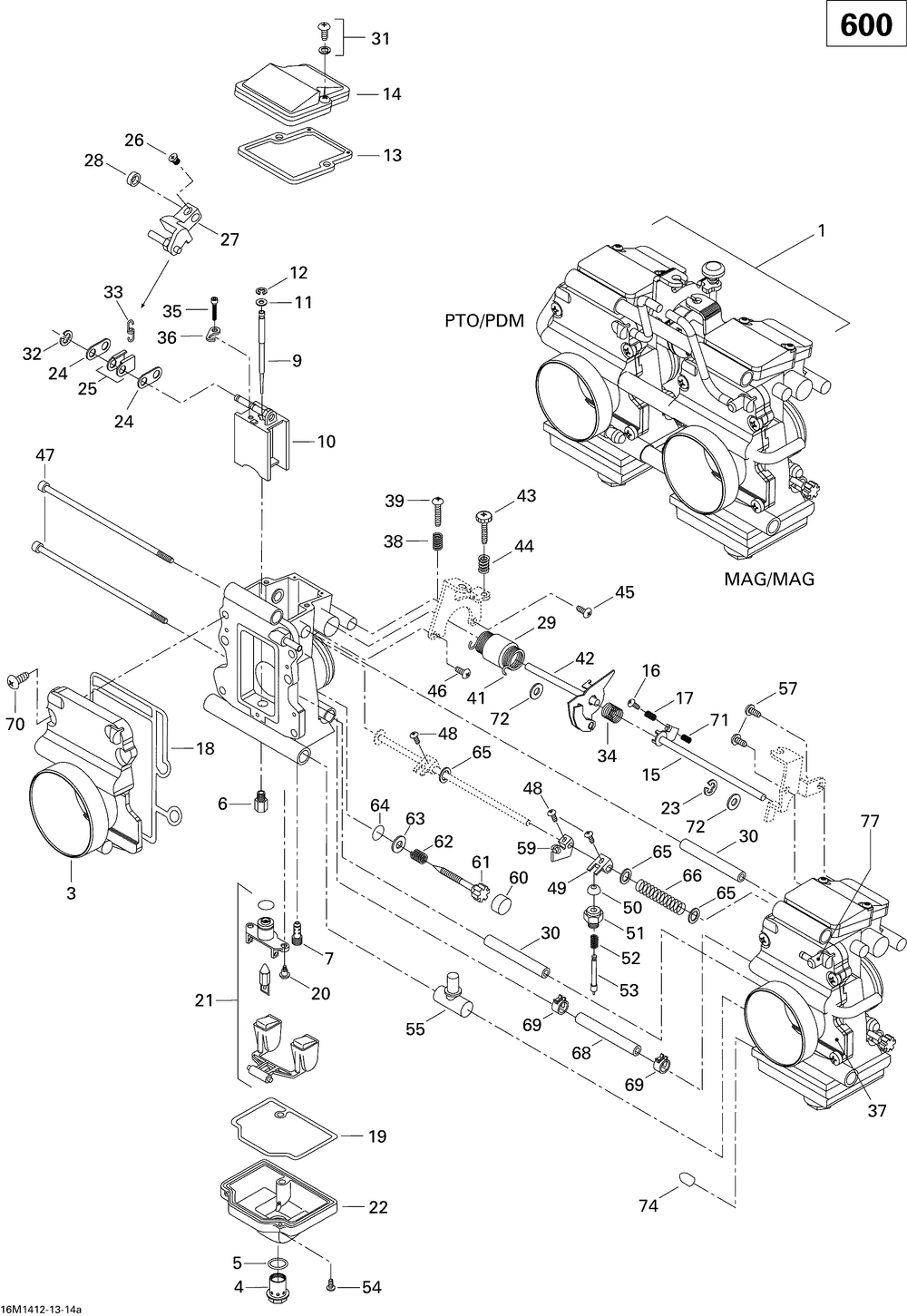

02- Carburetor _16M1412
№ Наименование Примечание Кол-во
1 CARBURETOR KIT TM40-B418 1
3 FUNNEL PTO 1
4 DRAIN SCREW 2
5 O-RING 2
6 MAIN JET MJ 390 (PTO) 2
7 PILOT JET 17.5 (10.000 per pack) 2
9 NEEDLE JET J8-9CEY02-58 2
10 VALVE PISTON 2.0 2
11 JOINT TAMPON *PACKING (10.000 per pack) 2
12 E-RING (5.000 per pack) 2
13 JOINT *GASKET 2
14 COVER 2
15 THROTTLE SHAFT 1
16 VIS *SCREW 1
17 ADJUSTMENT SPRING 1
18 O-RING 2
19 O-RING (2.000 per pack) 2
20 VIS *SCREW 4
21 FLOAT 2
22 BODY FLOAT ASS Y 2
23 E-RING 1
24 PLAQUE *PLATE 4
25 HOLDER 2
26 VIS *SCREW 2
27 LEVER 2
28 RING 2
29 RING 1
30 RING 2
31 VIS *SCREW 4
32 E-RING 2
33 SPRING 2
34 SPRING 1
35 VIS *SCREW 2
36 PLAQUE *PLATE 2
37 FUNNEL MAG 1
38 SPRING 1
39 VIS *SCREW 1
41 SPRING 1
42 THROTTLE SHAFT 1
43 ADJUSTMENT SCREW 1
44 SPRING 1
45 VIS *SCREW 1
46 VIS *SCREW 1
47 VIS *SCREW 2
48 VIS *SCREW 3
49 LEVER 1
50 CAP 2
51 GUIDE HOLDER 2
52 SPRING 2
53 PLUNGER ASS Y 2
54 VIS *SCREW (10.000 per pack) 2
55 NIPPLE 1
57 VIS *SCREW 2
59 STARTER LEVER 1
60 CAP 2
61 ADJUSTER 2
62 SPRING 2
63 RONDELLE *WASHER 2
64 PACKING 2
65 PACKING 3
66 SPRING 1
68 DURITE *HOSE 1
69 CLIP 2
70 VIS *SCREW 8
71 SPRING 1
72 JOINT TAMPON *PACKING 2
74 CAPUCHON OBTUR.*CAP-CLOSURE 2
77 ELBOW 90 1
