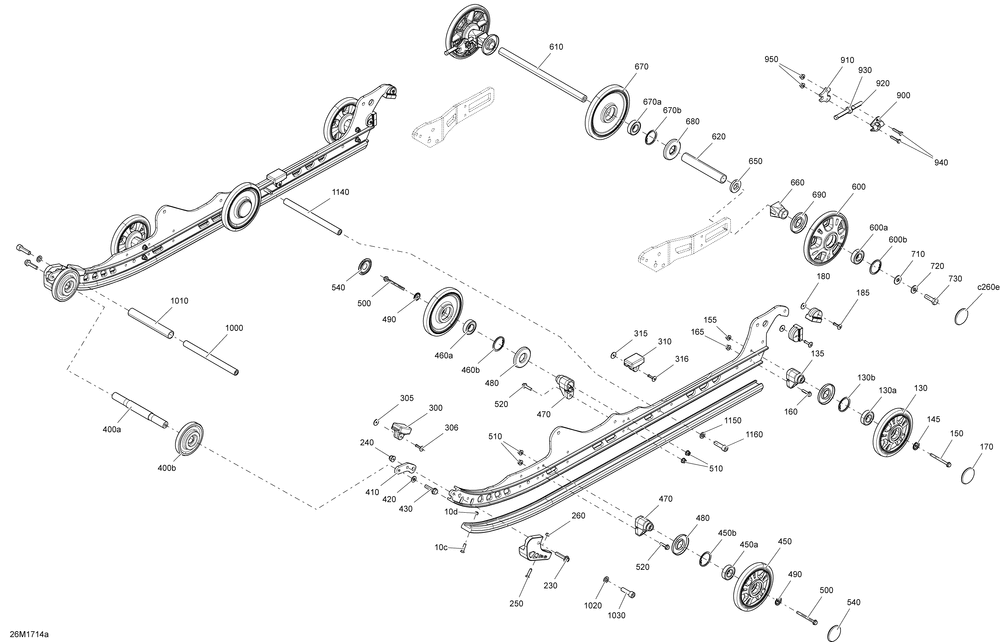

08- Rear Suspension - Inferior - All Models

Корзина пуста
SKI-DOO TUNDRA - 2-STROKE - XTREME TUNDRA - 2-STROKE - XTREME 08- Rear Suspension - Inferior - All Models
08- Rear Suspension - Inferior - All Models
№ Наименование Примечание Кол-во
10a RUNNER 2
10b BLACK SLIDER 154" 2
10c PHILLIPS SCREW M6 X 25 (4.000 per pack) 2
10d Elastic Stop Nut M6 2
130 DEEP BLACK WHEEL ASS Y 147 MM 2
130a BALL BEARING 1
130b RETAINING RING 1
135 CASTED SUPPORT 2
140 LABYRINTH SEAL 2
145 WHEEL CUP M6 2
150 HEX. FLANGE SCREW M6 X 70 2
155 Hex. Flanged Elastic Nut M6 2
160 HEX. FLANGE SCREW M6 X 25 2
170 BLACK WHEEL CAP 2
175 RUBBER STOPPER 4
180 RONDELLE * WASHER (6.000 per pack) 4
185 POP RIVET 3/16" (10.000 per pack) 4
200 RH PROTECTOR 1
200 LH PROTECTOR 1
200 RUNNER PROTECTOR 2
230 Hex. Flanged Screw M8 X 40 2
230 HEX. FLANGED SCREW M5 X 25 2
240 NUT-FLANGE ELASTIC DIN.6926 2
240 FLANGED ELASTIC NUT M5 (4.000 per pack) 2
300 RUBBER STOPPER 2
400a FRONT WHEEL AXLE 1
400b BLACK WHEEL ASS Y 100 MM 2
410 PLAQUE *PLATE 2
420 Washer 2
430 HEX. FLANGED SCREW M8 X 35 SCOTCH GRIP (4.000 per pack) 2
460 BLACK WHEEL ASS Y 147 MM 2
600 DEEP BLACK WHEEL ASS Y 165 MM 2
610 REAR AXLE 1
620 SPACER 1
650 RONDELLE *WASHER 1
660 REAR WHEEL SPACER 3
670 BLACK WHEEL ASS Y 165 MM 1
680 LABYRINTH SEAL 1
710 RONDELLE *WASHER (3.000 per pack) 2
720 CONICAL SPRING WASHER 10 MM (10.000 per pack) 2
730 SCREW-HEX.CAP WITH NYLON PATCH 2
900 TENSIONER 2
910 SPACER 2
920 HEX SCREW M10 X 100 2
930 Elastic Locking Nut M10 2
940 HEX. CAP SCREW M6 X 30 (2.000 per pack) 4
1000 AXLE STRAP 1
1010 SPACER 1
1020 Washer 2
1030 SOCKET HEAD SCREW M10 X 35 2
1140 AXLE STRAP 1
