| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| B | LOCTITE 243 10 ML | 0 | |
| P | LOCTITE 5910 300 ML | 0 | |

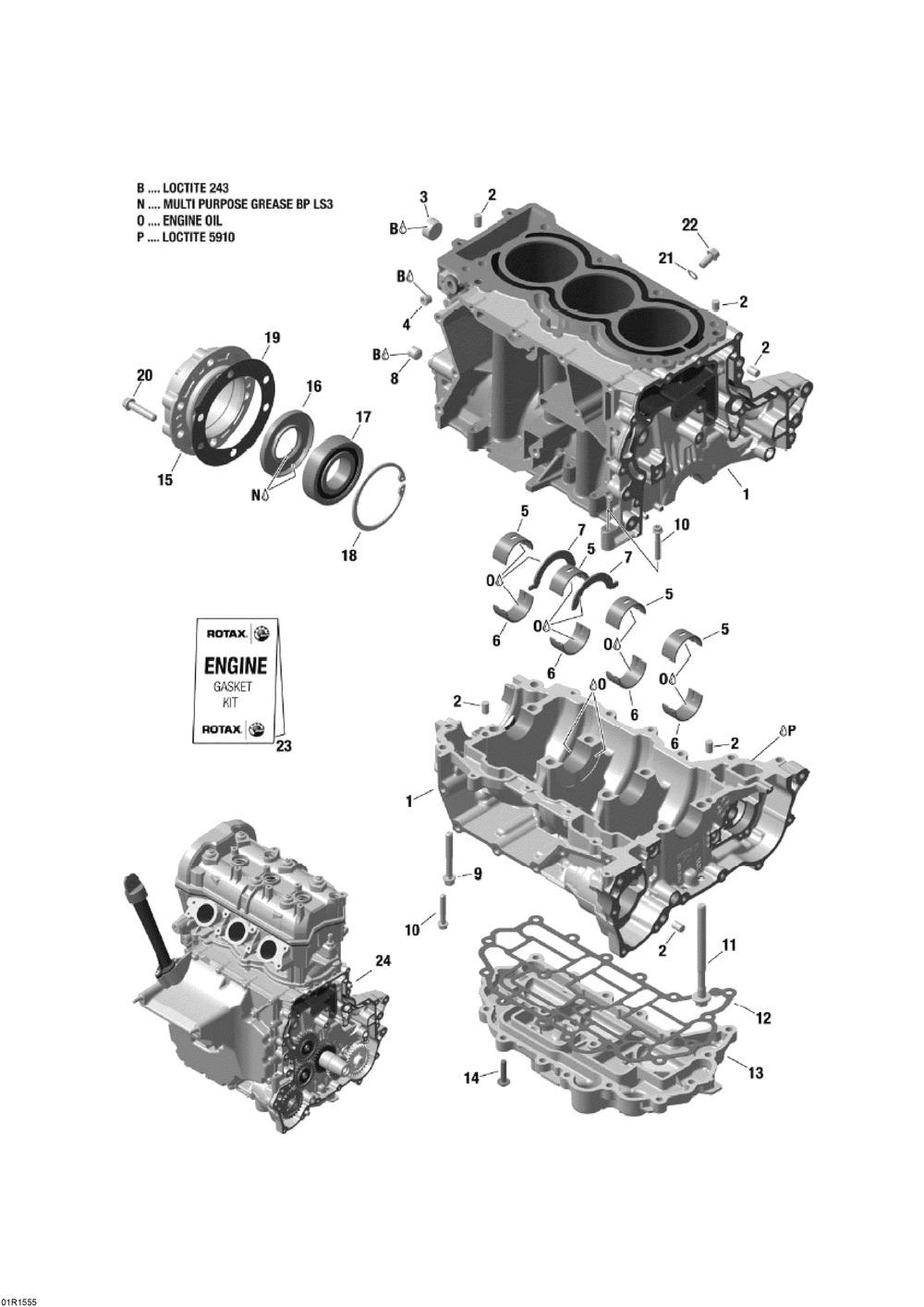

| 1 | CRANKCASE ASS Y Includes 1 To 6 | 1 | |
| 2 | Center Pin 8 X 12 | 4 | |
| 3 | Plug Screw M20 X 1.5 | 1 | |
| 4 | Plug Screw M10 X 1 | 1 | |
| 5 | Cushion | 4 | |
| 6 | Cushion | 4 | |
| 7 | Ring Half | 2 | |
| 8 | THREADED PIN Tightening Torque 9 Nm +/- 12% | 1 | |
| 9 | Flanged Torx Screw M8 X 55 | 2 | |
| 10 | FLANGED TORX SCREW M6 X 35 Tightening Torque 9 Nm +/- 12% (5.000 per pack) | 12 | |
| 11 | Flanged Torx Screw M9 X 113 | 8 | |
| 12 | Gasket | 1 | |
| 13 | OIL SUMP | 1 | |
| 14 | FLANGED TORX SCREW M6 X 25 Tightening Torque 9 Nm +/- 12% | 17 | |
| 15 | PTO COVER Includes 15 To 18 | 1 | |
| 16 | OIL SEAL | 1 | |
| 17 | Ball Bearing | 1 | |
| 18 | RETAINING RING | 1 | |
| 19 | Gasket | 1 | |
| 20 | Flanged Torx Screw M8 X 35 | 6 | |
| 21 | Sealing Ring | 1 | |
| 22 | Flanged Torx Screw M8 X 16 | 1 | |
| 23 | ENGINE GASKET SET | 1 | |
| 24 | LONG BLOCK 903 | 1 |
