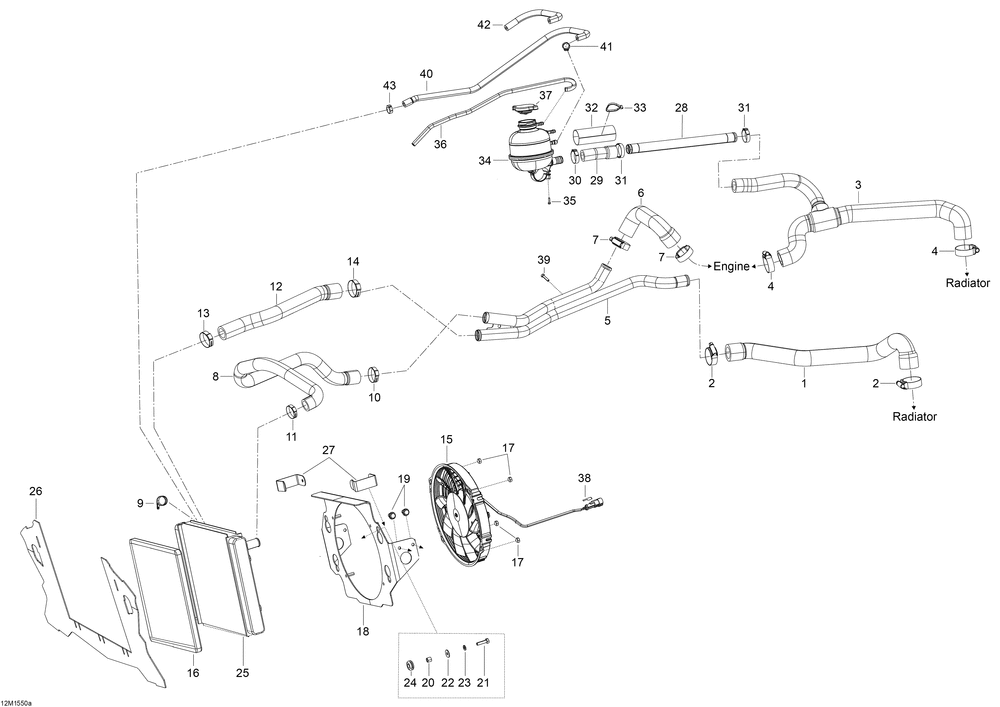

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOSE | 1 | |
| 2 | ABA GEAR CLAMP | 2 | |
| 3 | HOSE TUNNEL RAD.->ENGINE-FILLING | 1 | |
| 5 | WATER PIPE | 1 | |
| 6 | ENGINE OUTLET HOSE | 1 | |
| 8 | HOSE ENGINE->AIR RAD | 1 | |
| 9 | CLAMP WITH RUBBER D=30 | 1 | |
| 11 | Crimp Clamp | 1 | |
| 12 | HOSE FRONT AIR RAD->TUNNEL RAD | 1 | |
| 15 | COOLING FAN | 1 | |
| 16 | D- SEAL 9 X10 | 1 | |
| 17 | Hex. Flanged Elastic Nut M6 | 4 | |
| 18 | RADIATOR SUPPORT | 1 | |
| 19 | VIS*SCREW (10.000 per pack) | 4 | |
| 20 | BUSHING | 1 | |
| 21 | HEX. SCREW M6 X 20 (10.000 per pack) | 4 | |
| 22 | Flat Washer 6 mm | 2 | |
| 24 | Grommet | 4 | |
| 25 | RADIATOR | 1 | |
| 26 | AIR DEFLECTOR LTS | 1 | |
| 27 | DEFLECTOR CLIP | 2 | |
| 28 | TUYAU *PIPE | 1 | |
| 29 | HOSE | 1 | |
| 30 | Oetiker Gear Clamp | 1 | |
| 32 | PROTECTOR TUBE | 1 | |
| 33 | Tie-Rap 180 mm | 0 | |
| 34 | COOLANT TANK | 1 | |
| 35 | HEX. FLANGED SCREW K50 X 16 (5.000 per pack) | 1 | |
| 36 | HOSE 6 MM (15.000 per pack) | 1 | |
| 37 | Pressure Cap | 1 | |
| 38 | CLIP | 1 | |
| 39 | Hex. Flanged Screw M6 X 16, Scotch Grip | 1 | |
| 40 | BOYAU PURGE *BREATHER HOSE | 1 | |
| 41 | Crimp Clamp | 1 | |
| 42 | Tubing 13 mm (10.000 per pack) | 0 |
