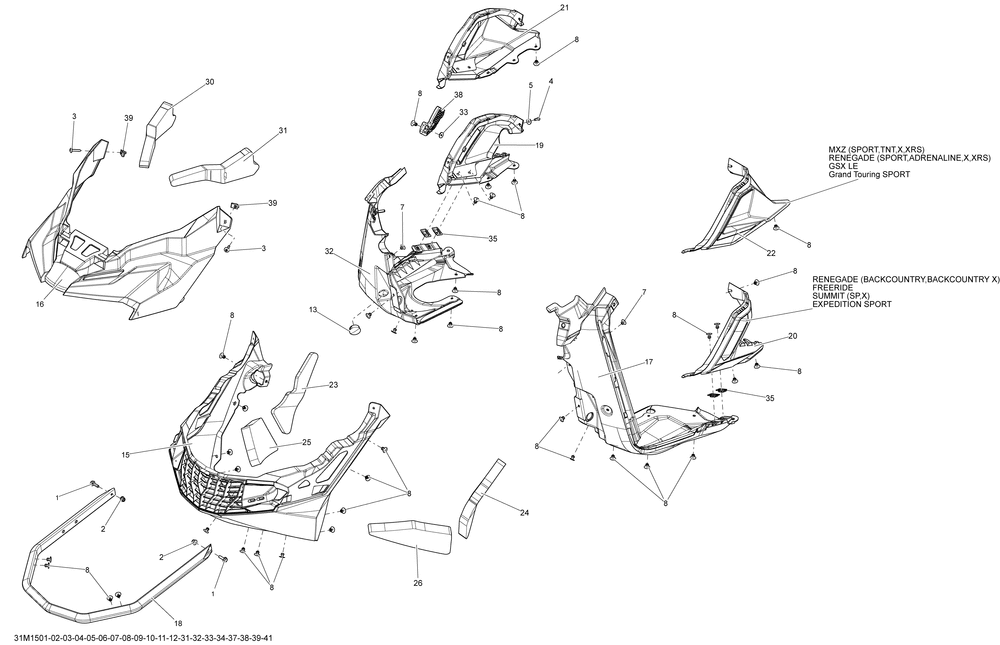

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | Hex. Flanged Screw M6 X 20 | 2 | |
| 2 | Hex. Flanged Elastic Nut M6 | 2 | |
| 3 | TORX SCREW M5 X 26 | 2 | |
| 4 | SOCKET SCREW M5 X 16 Circuit Yellow | 1 | |
| 5 | WASHER M5 (10.000 per pack) | 1 | |
| 7 | Black Pop Rivet 3/16" | 2 | |
| 8 | Pop Rivet 3/16" | 0 | |
| 13 | Nylon Cap | 1 | |
| 15 | DEEP BLACK FRONT BOTTOM PAN | 1 | |
| 15 | YELLOW FRONT BOTTOM PAN | 1 | |
| 16 | DEEP BLACK BOTTOM PAN CAP | 1 | |
| 16 | YELLOW BOTTOM PAN CAP | 1 | |
| 17 | DEEP BLACK LH BOTTOM PAN | 1 | |
| 18 | BLACK FRONT BUMPER | 1 | |
| 21 | DEEP BLACK RH SIDE BOTTOM PAN PANEL Except XM Platform | 1 | |
| 21 | RED RH SIDE BOTTOM PAN PANEL | 1 | |
| 22 | PANNEAU *PANEL Except XM Platform | 1 | |
| 22 | PANNEAU *PANEL | 1 | |
| 23 | RH BOTTOM PAN UPPER FOAM | 1 | |
| 24 | LH BOTTOM PAN UPPER FOAM | 1 | |
| 25 | RH BOTTOM PAN LOWER FOAM | 1 | |
| 26 | LH BOTTOM PAN LOWER FOAM | 1 | |
| 30 | RH BOTTOM PAN CAP FOAM | 1 | |
| 31 | LH BOTTOM PAN CAP FOAM | 1 | |
| 32 | COQUE DROITE *PAN-BOTTOM RH | 1 | |
| 33 | RONDELLE *WASHER (10.000 per pack) | 1 | |
| 35 | PLAQUE *PLATE | 4 | |
| 38 | STOPPER BUMPER | 1 | |
| 39 | PANEL NUT M5 X 0.8 (10.000 per pack) | 2 |
