SKI-DOO Expedition SE 600 E-TEC Expedition SE 600 E-TEC 10- Electrical System _38M1554

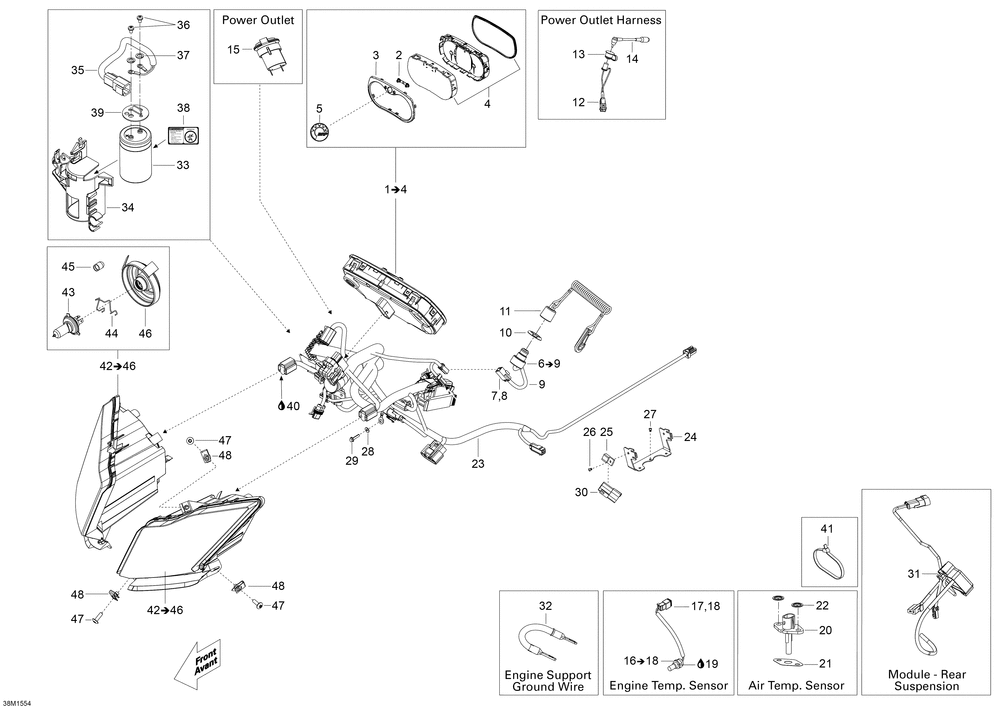

10- Electrical System _38M1554
№ Наименование Примечание Кол-во
1 SPEEDOMETER ASS Y Includes 1 To 4 1
5 BRP LOGO 20MM 1
6 DESS SWITCH Includes 6 To 9 1
7 MALE TERMINAL (10.000 per pack) 3
8 MALE HOUSING 3 CIRCUITS (5.000 per pack) 1
9 TUBING 12 MM 0
10 Safety Nut (DESS Switch) 1
11 DESS CAP 1
12 VISOR HARNESS 1
13 CAP 1
14 RALLONGE *EXTENSION 1
15 OUTLET DC 1
16 TEMPERATURE SENSOR 1
17 Female Terminal Housing, 2 Circuits 1
18 Female Terminal 2
20 AIR TEMPERATURE SENSOR 1
21 JOINT *RING 1
22 PUSH NUT (10.000 per pack) 2
23 MAIN HARNESS Includes 1 To WMS 1
25 Clip 1
26 AVDEL RIVET 3/16" (10.000 per pack) 1
27 Pop Rivet 3/16" 3
28 WASHER-LOCK HELICAL DIN.127B-A2 (5.000 per pack) 1
29 TORX SCREW M4 X 8 (10.000 per pack) 1
30 FEMALE TERMINAL HOUSING 6 CIRCUITS 1
31 COMPRESSOR MODULE Model-SE 1
32 GROUND WIRE 1
33 CAPACITOR 1
34 CAPACITOR SUPPORT 1
35 CAPACITOR HARNESS 1
36 SOCKET HEAD SCREW M10 X 32 (10.000 per pack) 2
37 WASHER-LOCK HELICAL tahos_10 2
38 CAPACITOR DECAL (ENGLISH) 1
39 CAP 1
41 Tie-Rap 94 mm 0
41 Tie-Rap 180 mm 0
41 Tie-Rap 350 mm 0
42 RH HEADLAMP ASS Y Includes 31 To 35 1
42 LH HEADLAMP ASS Y Includes 31 To 35 1
43 Halogen Bulb, 60/55 W, 12 V ( H4 ) 1
45 CAP 2
46 COVER 1
47 Torx Screw M6 X 20 6
48 Panel Nut M6 X 1.0 6
