SKI-DOO Skandic 500F/600 Skandic 500F/600 01- Cylinder Exhaust Manifold (593)

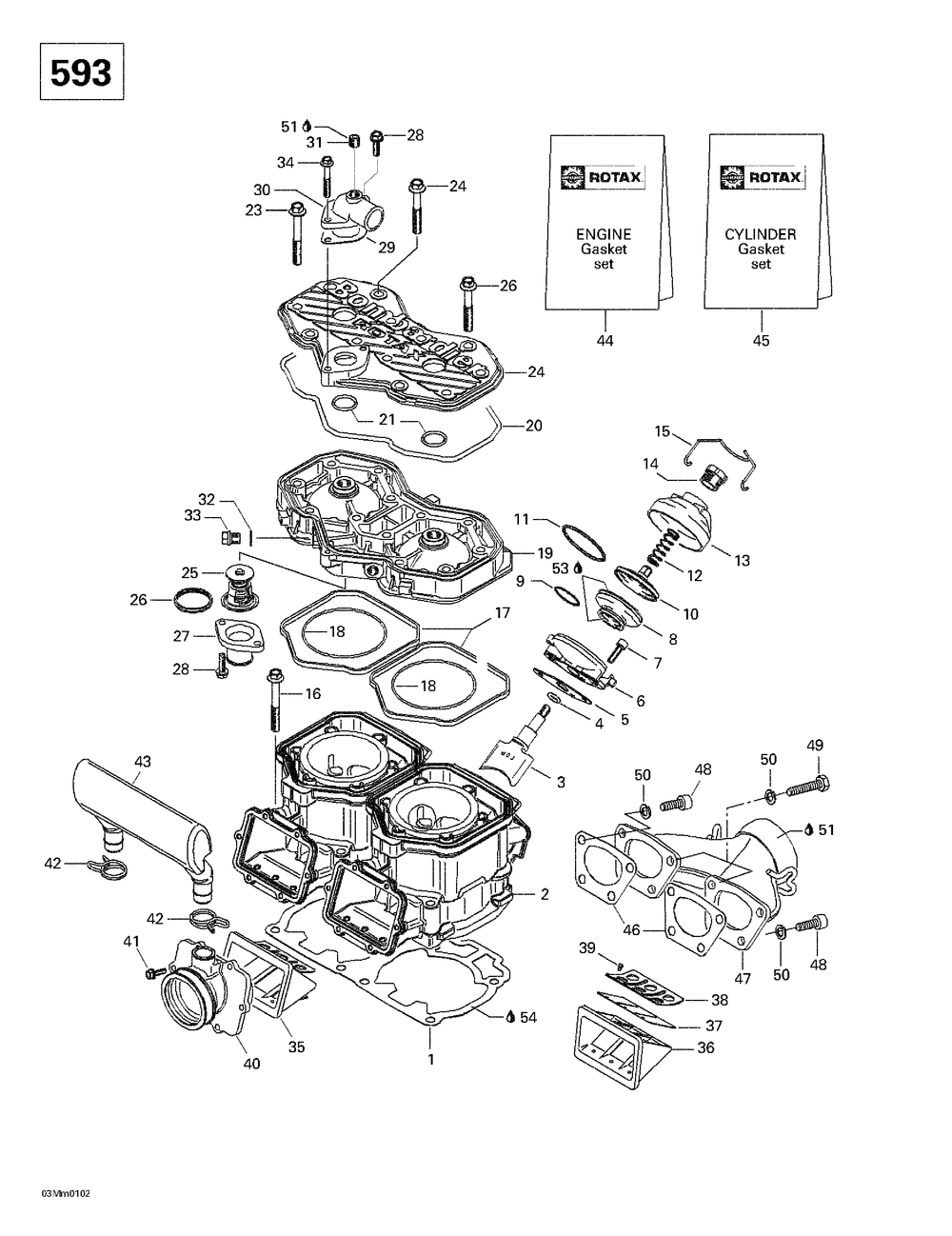

01- Cylinder Exhaust Manifold (593)
№ Наименование Примечание Кол-во
JOINT *GASKET 0.6MM 0
JOINT *GASKET 0.7MM 0
JOINT *GASKET 0.5MM 0
OIL SEAL (5.000 per pack) 2
1 JOINT *GASKET 0.8MM 0
2 CYLINDER WITH SLEEVE Skandic 600. 2
3 EXHAUST VALVE 2
4 O-RING (10.000 per pack) 2
5 JOINT *GASKET (5.000 per pack) 2
7 SOCKET HEAD SCREW M6 X 20 (10.000 per pack) 4
8 EXHAUST BELLOWS MX Z 500. MX Z 600. MX Z 700. 2
9 SPRING CLAMP (5.000 per pack) 2
10 EXHAUST VALVE MX-Z 600. 2
11 HOSE SPRING 2
13 VALVE COVER Legend 500. 2
14 ADJUSTER SCREW 2
15 SPRING CLIP Summit 600. (2.000 per pack) 2
17 RUBBER RING 2
18 O-RING 2
19 PLUG SCREW Skandic 600. 1
20 O-RING MX Z 500. MX Z 600. MX Z 700. 1
21 O-Ring 2
22 CYLINDER HEAD COVER 1
23 HEX. COLLAR SCREW M8 X 65 10
24 HEX. SCREW M8 X 56.5 2
25 THERMOSTAT Skandic 600. 1
26 SEALING RING 1
27 BENT OUTLET SOCKET 1
28 SCREW-TAPPING 3
29 JOINT *GASKET 1
30 BENT OUTLET SOCKET 1
31 PLUG SCREW 1
32 Washer Copper 1
33 PLUG SCREW M12 X 1.5 1
34 HEX. COLLAR SCREW M6 X 40 (5.000 per pack) 1
35 REED VALVE ASS Y Includes 23 to 27 2
37 REED PEDAL 6
38 REED PEDAL STOP 6
39 PHILLIPS SCREW M3 X 5 (10.000 per pack) 18
40 CARBURETOR SOCKET 2
41 TAPPING SCREW M5 X 16 (10.000 per pack) 12
42 CLAMP 2
43 INTAKE RESONATOR 1
44 ENS.JOINT ETANC*KIT-GASKET ENGINE MX-Z 600. 1
45 ENS.JOINT ETANC*SET-GASKET CYLINDER MX-Z 600. 1
46 JOINT *GASKET 2
47 Y-MANIFOLD 593 979633 SUV 600 1
48 SOCKET HEAD SCREW M8 X 30 (10.000 per pack) 6
49 HEX. SCREW M8 X 20 (10.000 per pack) 2
50 WASHER-LOCK DIN.127B (50.000 per pack) 8
51 SEALANT LOCTITE 80 ML Grand Touring 500. Grand Touring 600. 0
52 LOCTITE 243 10 ML 0
53 DOW CORNING 111*DOW CORNING 111 0
54 LOCTITE 518 50 ML 0
