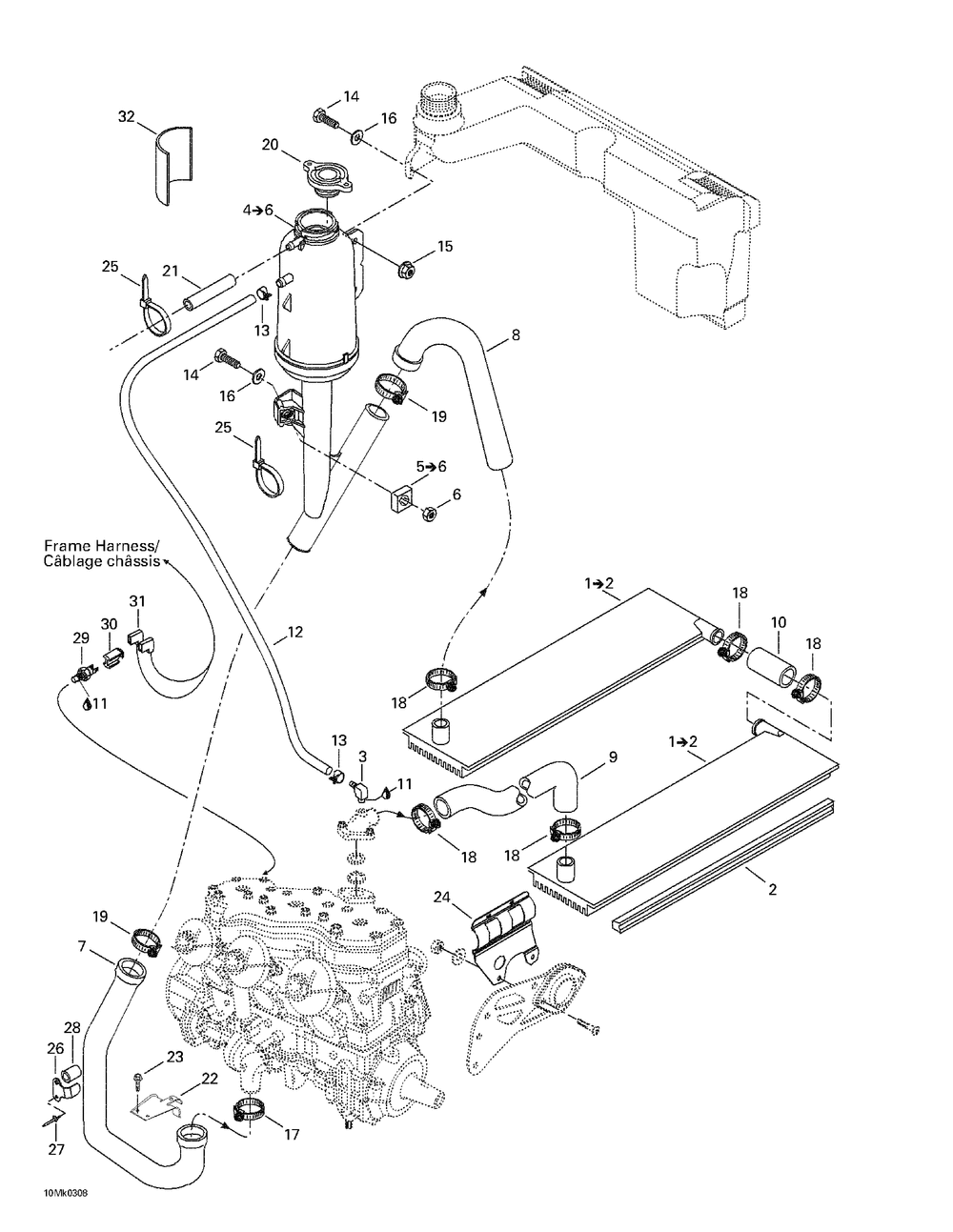

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 3 | ELBOW FITTING 90 | 1 | |
| 5 | M6 Nut Housing Ass'y | 1 | |
| 6 | Hex. Elastic Stop Nut M6 | 1 | |
| 7 | BOYAU ENTRE MOT*HOSE-INLET ENG | 1 | |
| 8 | BOYAU SORT.RAD.*HOSE-OUT.RAD. | 1 | |
| 9 | BOYAU ENTRE RAD*HOSE-INLET RAD | 1 | |
| 10 | HOSE | 1 | |
| 11 | LOCTITE 592 PIPE SEALANT 50 ML Package T | 0 | |
| 12 | BOYAU 8MM *HOSE-8MM (3.000 per pack) | 0 | |
| 13 | UNIVERSAL SPRING CLAMP (10.000 per pack) | 2 | |
| 14 | HEX. SCREW M6 X 25 (10.000 per pack) | 2 | |
| 15 | Hex. Flanged Elastic Nut M6 | 1 | |
| 16 | Flat Washer | 2 | |
| 17 | NORMA CLAMP | 1 | |
| 18 | TRIDON GEAR CLAMP (10.000 per pack) | 5 | |
| 19 | Oetiker Gear Clamp | 2 | |
| 20 | Pressure Cap | 1 | |
| 21 | Hose, Polyurethane | 0 | |
| 23 | HEX. FLANGED SCREW M5 X 11 (10.000 per pack) | 2 | |
| 25 | Tie-Rap 180 mm | 2 | |
| 27 | AVEX RIVET (50.000 per pack) | 1 | |
| 29 | CAPTEUR TEMP. *SENSOR-TEMP. | 1 | |
| 30 | TAMPON CONNECT.*PLUG-CONNECTOR | 1 | |
| 31 | FEMALE TERMINAL (10.000 per pack) | 2 |
