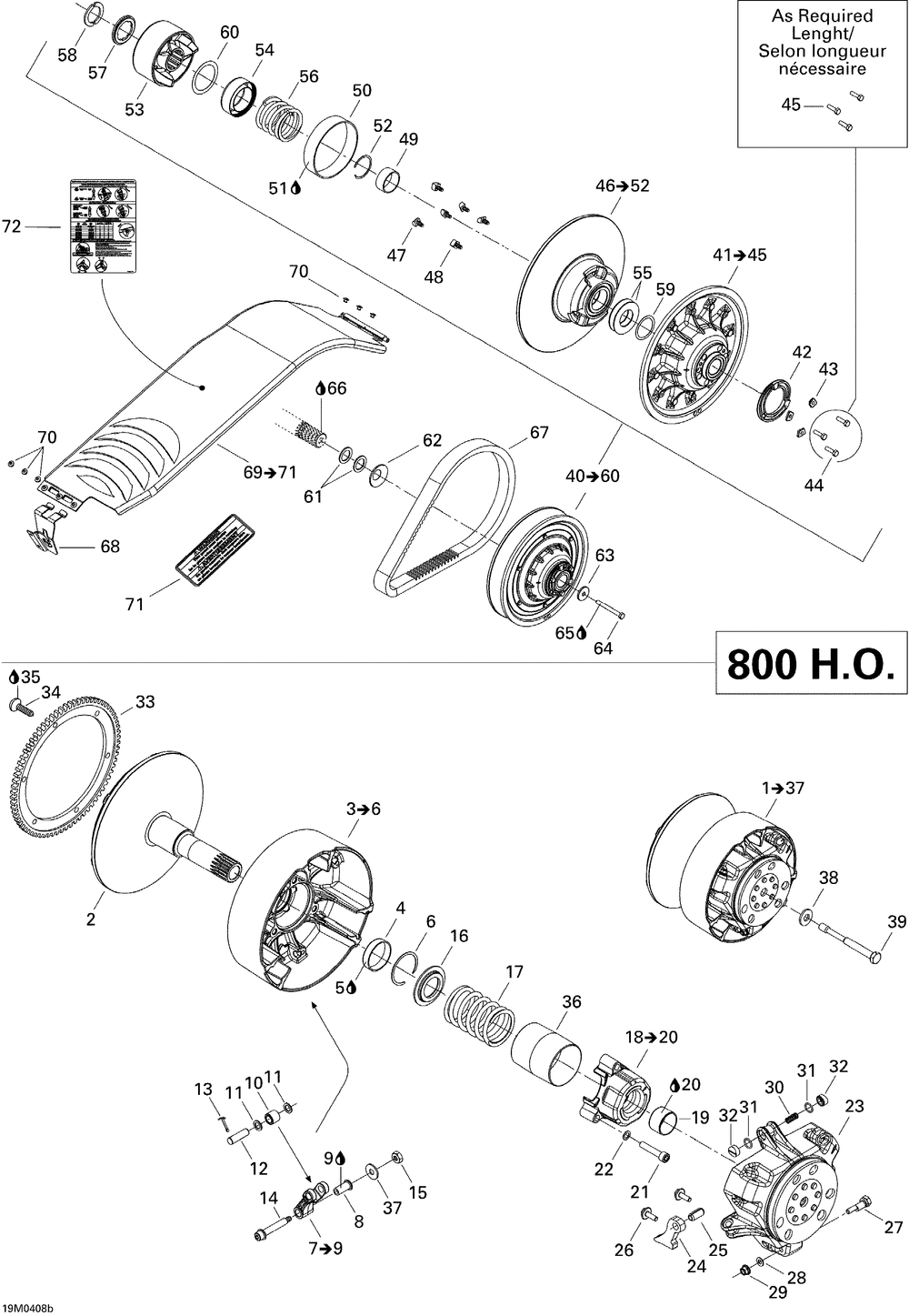

05- Pulley System (800)

SKI-DOO Legend 800 SDI Legend 800 SDI 05- Pulley System (800)

№	Наименование	Кол-во
2	FLASQUE FIXE AS*FLANGE-FIXE ASS.	1
3	SCREW-SOCKET HD.DIN.912 INCLUDES 3 TO 6 (25.000 per pack)	1
4	BUSHING	1
5	LOCTITE BLACK MAX 3 ML	0
6	CIRCLIP	1
7	LEVER	3
9	LOCTITE 609 10 ML	0
10	ROLLER (3.000 per pack)	3
11	STOPPER WASHER (6.000 per pack)	6
12	GOUPILLE *PIN Europe (3.000 per pack)	3
13	COTTER PIN (3.000 per pack)	3
14	SCREW ASS Y (3.000 per pack)	3
15	Elastic Stop Nut M6	3
16	SPRING SEAT	1
17	SPRING VIOLET/YELLOW	1
18	SPRING COVER ASS Y	1
19	BUSHING	1
21	SOCKET HEAD SCREW M8 X 40 Model-SE (5.000 per pack)	3
22	Lock Washer 8 mm	3
23	HEX. FLANGED ELASTIC NUT M6 (10.000 per pack)	1
24	RAMP 414 Package-Enduro (3.000 per pack)	3
25	SPRING PIN M10 X 22 (3.000 per pack)	3
26	FLANGED HEX. SCREW M6 X 18 SCOTCH GRIP (6.000 per pack)	6
27	CALIBRATION SCREW	3
28	RONDELLE *WASHER (6.000 per pack)	3
29	Hex. Flanged Nut M6	3
30	SPRING (6.000 per pack)	3
31	O-RING (6.000 per pack)	6
32	SLIDER SHOE (6.000 per pack)	6
33	HEX. SCREW M8 X 16 (10.000 per pack)	1
35	LOCTITE 271 10 ML	0
36	GUARD	1
37	FLAT WASHER 6 MM (10.000 per pack)	3
38	SPRING WASHER 14 MM (10.000 per pack)	1
39	DRIVE PULLEY BOLT	1
41	FIXED FLANGE ASS Y Includes 40 to 44	1
42	ADJUSTMENT RING	1
43	ADJUSTMENT SHIM	3
44	HEX. SCREW M6 X 25 (10.000 per pack)	3
45	HEX. SCREW M6 X 22	3
46	SLIDING FLANGE ASS Y Includes 45 to 51	1
47	REAR CAM SLIDER SHOE RED (10.000 per pack)	3
48	FRONT CAM SLIDER SHOE BLACK (10.000 per pack)	3
50	COUSSINET *COUSSINET	1
52	CIRCLIP (5.000 per pack)	1
53	CAM ASS Y	1
54	GUARD	1
55	STOPPER WASHER	2
56	SPRING BLACK	1
57	SPACER	1
58	HALF KEY	2
59	SHIM (10.000 per pack)	1
60	SWIVEL ABUTMENT	1
61	SPACER (5.000 per pack)	2
62	PROTECTOR	1
63	STRENGTH WASHER	1
64	HEX. SCREW M8 X 75 (10.000 per pack)	1
65	LOCTITE 243 10 ML	0
66	LOCTITE 767 ANTISEIZE LUBRICANT 8 OZ	0
67	Ремень приводной	1
68	ATTACHE *BRACKET	1
70	Pop Rivet 3/16"	6
71	WARNING DECAL SECURITY BELT GUARD	1
72	DECAL SUSPENSION ADJUSTMENT	1
