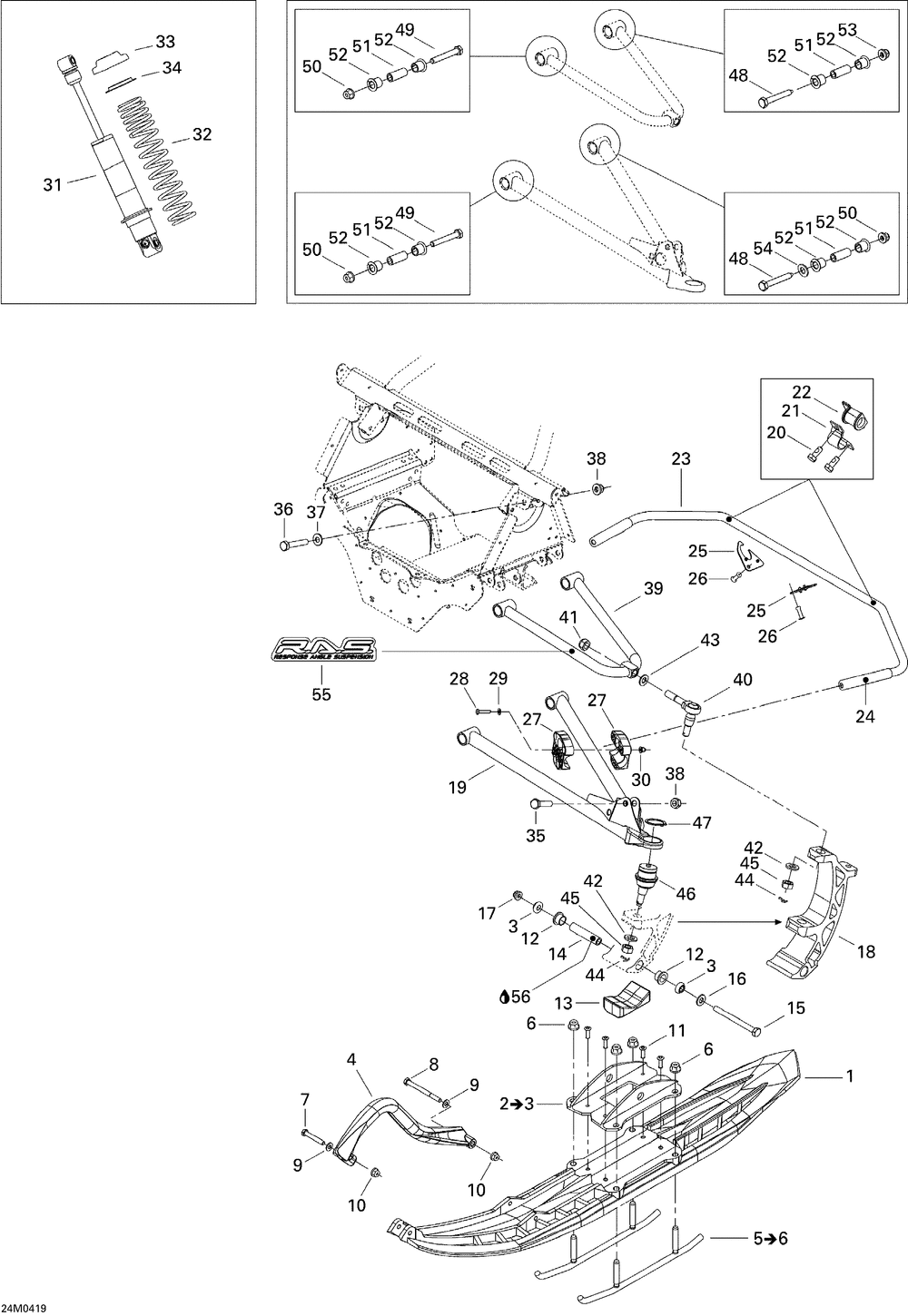

SKI-DOO MX Z 600 HO SDI Renegade, Early Intro MX Z 600 HO SDI Renegade, Early Intro 07- Front Suspension
07- Front Suspension
№ Наименование Примечание Кол-во
LH LOWER ARM ASS Y 1
LH SLIDER HALF 2
RH BUSHING 1
1 PRECISION SKI BLACK B-160 2
3 BUSHING (2.000 per pack) 4
4 BLACK HANDLE Model N 2
5 LISSES *CARBIDES Includes 5 to 6 1
6 HEX. FLANGED ELASTIC NUT M10 (10.000 per pack) 8
7 HEX. SCREW M8 X 50 (10.000 per pack) 2
8 HEX. SCREW M8 X 90 Model-LE (5.000 per pack) 2
9 Flat Washer 8 mm 4
10 Hex. Flanged Elastic Nut M8 4
11 POP RIVET 1/4" (10.000 per pack) 8
12 BUSHING 4
14 SPACER (2.000 per pack) 2
15 HEX. SCREW M10 X 110 (5.000 per pack) 2
16 RONDELLE *WASHER (25.000 per pack) 2
17 FLANGED NUT M10 (5.000 per pack) 2
18 SKI LEG 2
19 RH LOWER ARM ASS Y 1
20 HEX. SCREW WITH NYLON (10.000 per pack) 4
21 CLAMP (5.000 per pack) 2
22 LH BUSHING 1
23 STABILISATEUR P*STABILISATOR-P 1
24 STABILISATOR BOOT 2
25 PLUG 2
26 Black Pop Rivet 3/16" 2
27 RH SLIDER HALF 2
28 HEX. SCREW M5 X 25 (10.000 per pack) 8
29 FLAT WASHER (10.000 per pack) 8
30 FLANGED ELASTIC NUT M5 (4.000 per pack) 8
31 FRONT SHOCK 1
32 SPRING 1
33 SPRING STOPPER 1
34 CAP 1
35 HEX. SCREW M10 X 55 (5.000 per pack) 2
36 Hex. Screw M10 X 60 2
39 UPPER ARM 2
40 UPPER BALL JOINT 2
41 HEX. FLANGED ELASTIC NUT M12 2
42 FLAT WASHER 12 MM (10.000 per pack) 4
43 RONDELLE *WASHER (25.000 per pack) 2
44 COTTER PIN (50.000 per pack) 4
45 HEX. CASTELLATED NUT M12 (5.000 per pack) 4
47 Circlip 2
49 HEX. SCREW M10 X 70 (10.000 per pack) 4
51 BUSHING 8
52 COUSSINET *BUSHING (20.000 per pack) 16
53 ELASTIC LOCKING NUT M10 SE5 Electronic A29H A29J A29K A29L A29M A29N (10.000 per pack) 1
54 RONDELLE *WASHER (10.000 per pack) 2
55 R.A.S. SUSPENSION DECAL 2
56 SUSPENSION GREASE 10 X 400 G 0
