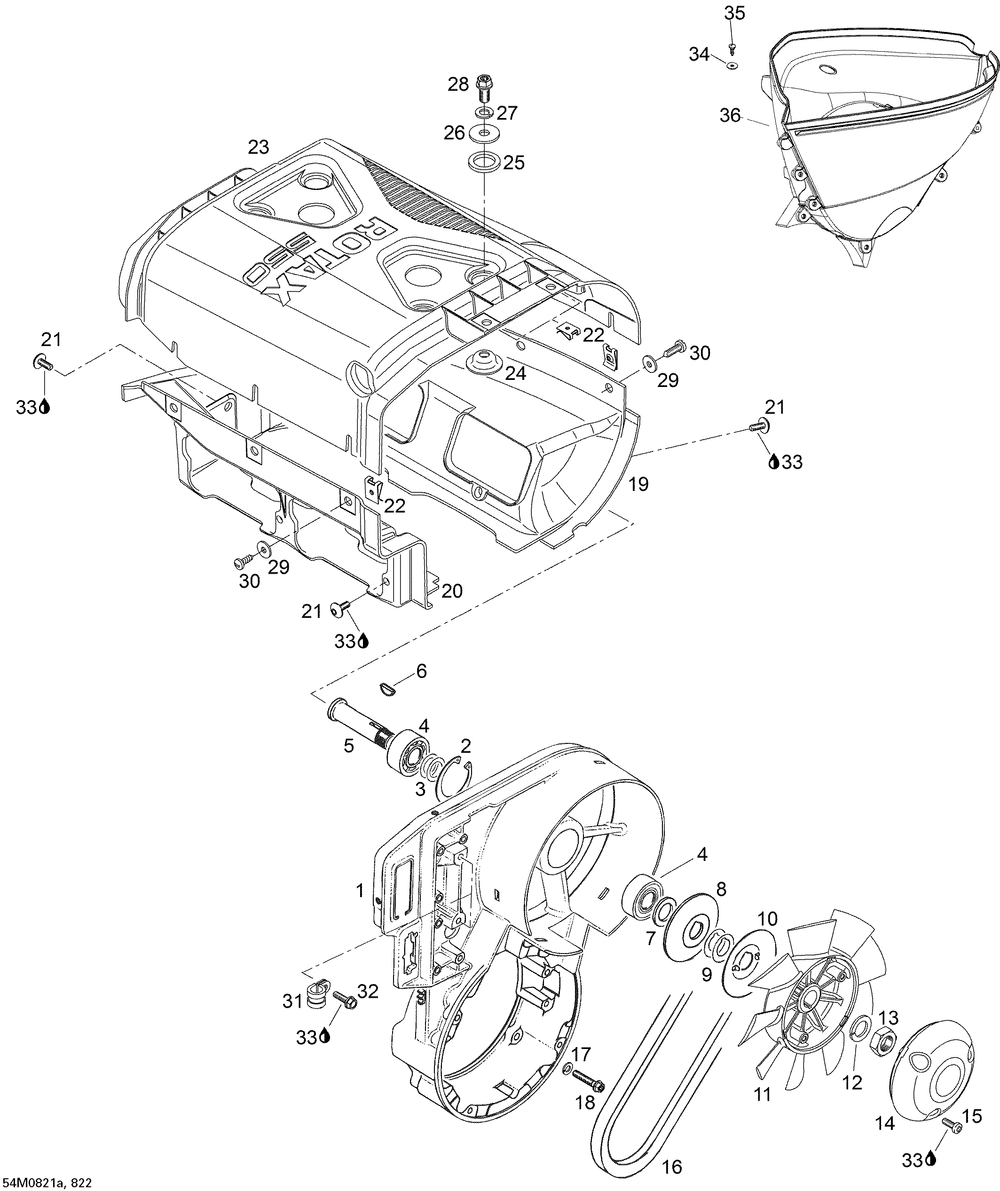

01- Fan 550F

№	Наименование	Кол-во
1	FAN HOUSING	1
2	LOCK RING (10.000 per pack)	1
3	SHIM (10.000 per pack)	2
4	BALL BEARING	2
5	FAN AXLE	1
6	WOODRUFF KEY (10.000 per pack)	1
7	SPACER BUSHING	1
8	FLANGE	1
9	SHIM 0.5 MM (10.000 per pack)	4
9	SHIM 0.2 MM (5.000 per pack)	1
10	PROTECTION WASHER	1
11	FAN	1
12	RONDELLE-FREIN *WASHER-LOCKtahos_16 (5.000 per pack)	1
13	NUT M16	1
14	FAN COVER	1
15	SCREW Tightening Torque 4-5 Nm (5.000 per pack)	3
16	COURROIE VENT. *BELT-V	1
17	WASHER-LOCK DIN.128 (10.000 per pack)	4
18	TORX FLANGED SCREW M6 X 30	4
19	LOWER COWLING	1
20	LOWER COWLING	1
21	TORX SCREW M6 X 16	6
22	SPRING NUT 4.8 (2.000 per pack)	7
23	CYLINDER COWL	1
24	CUP WASHER	4
25	RUBBER WASHER (10.000 per pack)	4
26	RONDELLE *WASHER (5.000 per pack)	4
27	WASHER-LOCK DIN.128 (10.000 per pack)	4
28	Flanged Torx Screw M8 X 16	4
29	RONDELLE *WASHER	7
30	TAPPING SCREW M4.8 X 16 Tightening Torque 2-3 Nm (10.000 per pack)	7
31	CLAMP	1
32	TAPPING SCREW M5 X 16 (10.000 per pack)	1
33	LOCTITE 243 10 ML	0
34	SLOTTED INDENTED HEX. SCREW tahos_10 X 5/8 (5.000 per pack)	2
35	RONDELLE *WASHER (50.000 per pack)	2
36	COOLING CHANNEL ASS Y	1
