SKI-DOO RENEGADE - 2-STROKE RENEGADE - 2-STROKE 07- Front Suspension And Ski - 146 Model

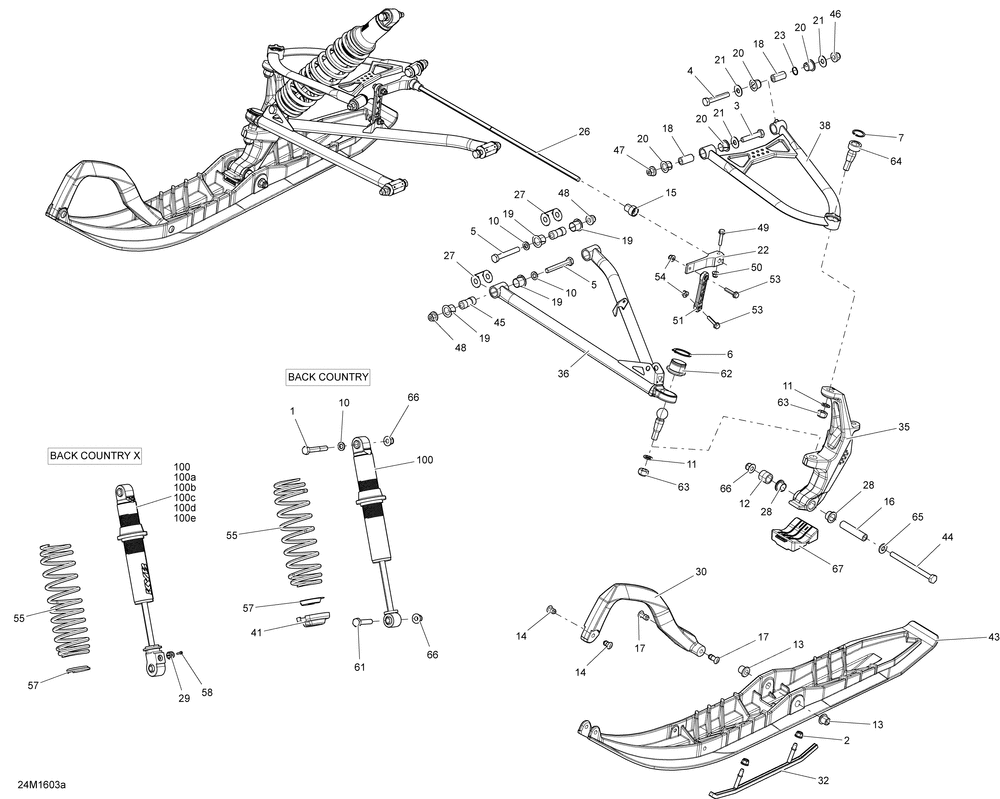

07- Front Suspension And Ski - 146 Model
№ Наименование Примечание Кол-во
1 HEX. SCREW M10 X 65 (5.000 per pack) 2
2 Hex. Flanged Elastic Nut M8 6
3 SCREW HEX. M10 X 50 (4.000 per pack) 2
4 SCREW HEX. M10 X 60 (5.000 per pack) 2
5 SCREW HEX. M10 X 70 4
6 Circlip 2
7 CIRCLIP (2.000 per pack) 2
10 RONDELLE *WASHER (10.000 per pack) 6
11 RONDELLE *WASHER (5.000 per pack) 4
12 SPACER 2
13 CUSHION 2
14 RETAINER (16.000 per pack) 2
15 COUSSINET *BUSHING 2
16 SPACER (2.000 per pack) 2
17 RETAINER 2
18 BUSHING 4
18 BUSHING 4
19 COUSSINET *BUSHING 8
20 COUSSINET *BUSHING 8
21 RONDELLE *WASHER (5.000 per pack) 6
22 STABILISATOR LEVER 2
23 O-RING 2
26 STABILISATEUR *STABILISATOR 1
27 WEAR PLATE 4
28 BUSHING 4
29 ADJUSTMENT KNOB 1
30 RED HANDLE 1
32 CARBIDE RUNNER KIT Includes 3 To 4 1
35 LH SKI LEG Model-SE 1
35 RH SKI LEG Model-SE 1
36 LOWER LH ARM 1
36 LOWER RH ARM 1
38 BRAS SUP. *ARM-UPPER 1
38 BRAS SUP. *ARM-UPPER 1
41 Cap 1
42 Spring Stopper 1
43 BLACK DS SKI 2 Includes 1 To 2 1
44 HEX. SCREW M10 X 130 2
46 Hex. Flanged Elastic Nut M10 8
49 HEX FLANGED SCREW M6 X 30 6
50 Hex. Flanged Elastic Nut M6 6
51 Sway Bar Double Joint Link 2
55 DEEP BLACK SPRING Package Backcountry X 1
55 DEEP BLACK SPRING Package Backcountry 1
57 BUTEE RESSORT *STOPPER-SPRING Package Backcountry X 1
58 SOCKET SCREW M3 X 10 Package Backcountry X (5.000 per pack) 1
61 HEX SCREW M10 X 55 2
62 JOINT ROTULE *BALL JOINT 2
63 Hex Elastic Nut M12 X 1.25 4
64 UPPER BALL JOINT 2
65 Washer 2
66 Hex. Elast. Flanged Nut M10 6
67 SKI STOPPER 2
100 FRONT SHOCK Package Backcountry X Europe Model 1
100 FRONT SHOCK Package Backcountry 1
100 FRONT SHOCK Package Backcountry X North America Model 1
100a O-RING (5.000 per pack) 1
100b O-RING 1
100c PISTON RING 1
100e AIR VALVE 1
100f SCREW *VIS 1
