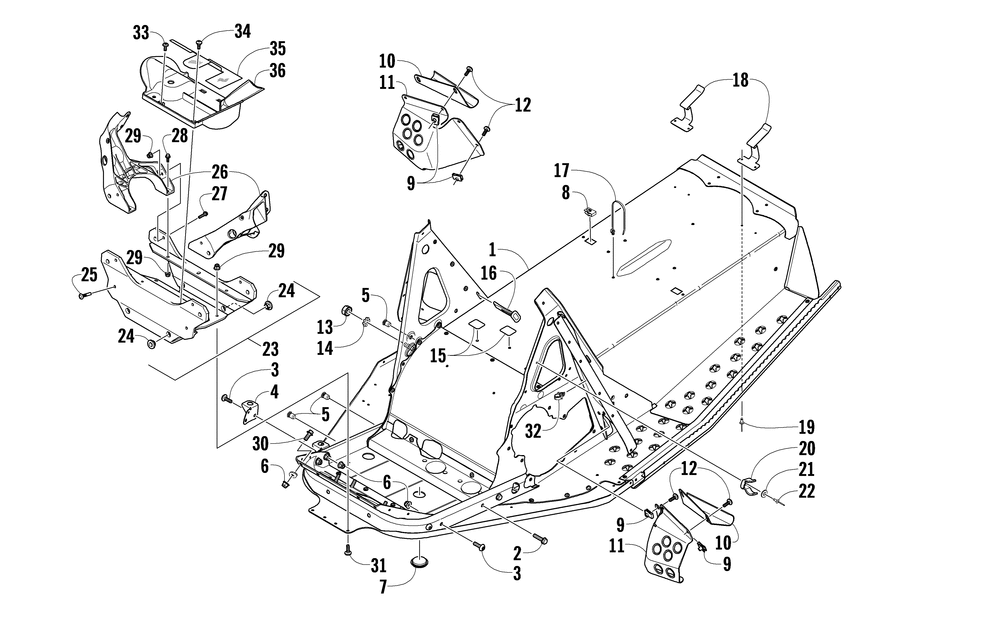

Arctic Cat Z1 TURBO BLACK Z1 TURBO BLACK CHASSIS ASSEMBLY
CHASSIS ASSEMBLY
№ Наименование Примечание Кол-во
1 CHASSISTURBO-TPT SPR ASSY (inc. 2-5 and four No. 6) 1
2 SCREWCAP-HFH M8 X 1.25 X 40 TRILOBE Z&Y (4 per pack) 4
3 SCREWMACH-TSTRH M8X1.25X35 Z&Y (4 per pack) 4
4 BRKT RESONATOR MTG-PTD Included in Chassis Assembly 1
5 INSERTM6X1.0-AL SERIES ALS4-610-4.2 3
6 NUTHEX FLG-NYL LOCK M8X1.25 CL8 Z&Y 8
7 PLUGCENTER PAN 4
8 CLIPU-NUT (M5) (4 per pack) 2
9 CLIPU-NUT M6 (5 per pack) 14
10 BRKT TOE HOOK-LH 1
10 BRKT TOE HOOK-RH 1
11 SHIELD TOE-LH 1
11 SHIELD TOE-RH 1
12 SCREWMACH-TSPNH M6X1.0X16 CL8.8 Z&BLK (5 per pack) 12
13 NUTHEX M6 Z&Y-SEMS (W/WASHER) (5 per pack) 1
14 WASHERLOCK-1/4 EXT TOOTH TYP A Z&Y (5 per pack) 1
15 FOIL PROTECTIVE (4 per pack) 2
16 STRAPHOLDDOWN-UPR PANEL-RH 1
16 STRAPHOLDDOWN-UPR PANEL-LH 1
17 CABLE TIEPUSH MOUNT-X MAS CLIP (5 per pack) 0
18 BRKTSEAT RETAINER-PTD BLK 2
19 RIVET BLIND-DH SS53 ZINC (10 per pack) 4
20 BRKTFUEL FILTER-F3 1
21 WASHERFLAT- tahos_10 X .500 X .049 Z&Y (20 per pack) 1
22 RIVET BLIND-LF SS66 BLACK (10 per pack) 1
23 BRKTFRT SUSP MTG-W/BUSHINGS (inc. 14-15) 1
24 BUSHINGLWR A-ARM (4 per pack) 4
25 BOLT RIBBED NECK M6 X 35 Z&Y (4 per pack) 2
26 FRAME UPPER-SHOCK MTG-RH 1
26 FRAME UPPER-SHOCK MTG-LH 1
27 SCREWCAP-HFH M6X1.0X25 CL8.8 Z&Y 2
28 SCREWCAP-HFH M6X1.0X20 CL8.8 Z&Y (4 per pack) 4
29 NUTHEX FLG-NYL LOCK M6X1.0 CL8 Z&Y (5 per pack) 10
30 SCREWCAP-HFH M8X1.25X20 CL8.8 Z&Y (4 per pack) 4
31 SCREWMACH-TSTRH M6X1.0X20 Z&Y (5 per pack) 4
32 ROUTING CLIPSNAP-IN Optional Optional (5 per pack) 2
33 SCREWMACH-TSTRH M6X1.0X16 Z&Y (5 per pack) 1
34 SCREWSHLDR-TSPH M6-1.0X18MM Z&Y W/2353 (5 per pack) 1
35 FOILCLOSE OFF PANEL 1
36 CLOSE OFFCOVER-FRONT END 1
