Arctic Cat CF6 EFI GREEN CF6 EFI GREEN IDLER WHEEL ASSEMBLY

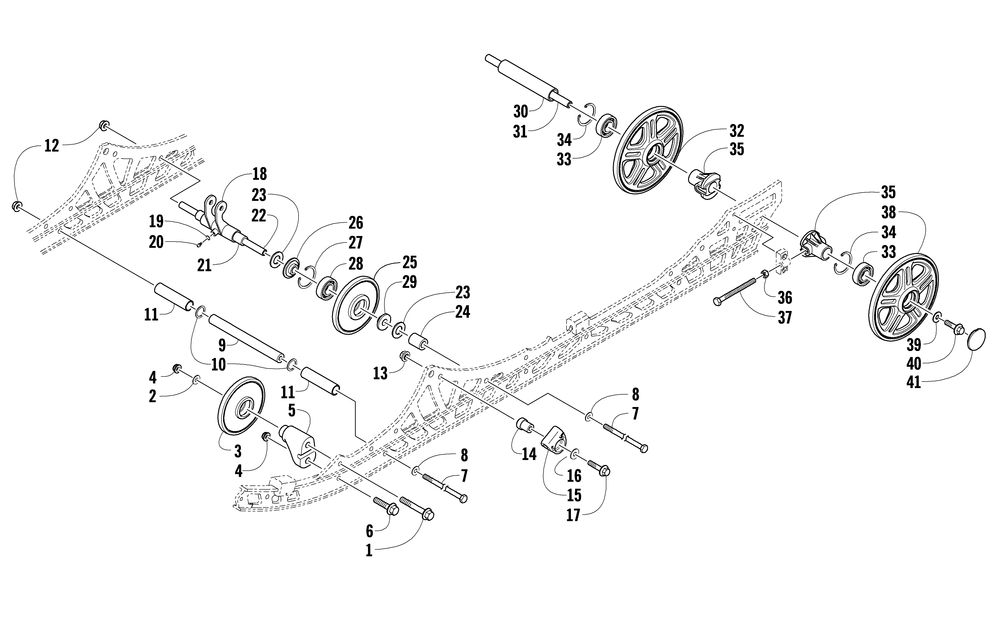

IDLER WHEEL ASSEMBLY
№ Наименование Примечание Кол-во
1 SCREWCAP-HFH 5/16-18 X 3.25 G5 Z&Y (2 per pack) 2
2 WASHERFLAT-M8-9.12 X 25.40 X 2.30Z&Y (8 per pack) 2
3 WHEELIDL-5.63 OD X .787"ID-BLK (NO SPK) (inc. 5-6) 2
4 NUTHEX FLG-NY LOCK 5/16-18 GR F Z&Y (10 per pack) 4
5 BLOCKMTG-IDLER WHEEL(DIE CAST) 2
6 SCREWCAP-HFH 5/16-18 X 1.25 G5 Z&Y (5 per pack) 2
7 SCREW CAP-HH 3/8-16X10 GD 8 Z&Y (2 per pack) 2
8 WASHER FLAT .375X.625X.064 (5 per pack) 2
9 AXLE ALUM-.875 DIA X 8.750 1
10 WASHERFLAT-.890 X 1.19 X .060 Z&Y (5 per pack) 2
11 SPACERFRONT ARM SHOCK 2
12 NUTHEX FLG-NY LOCK 3/8-16 GR G Z&Y (10 per pack) 2
13 NUTHEX FLG-NY LOCK 3/8-16 GR F Z&Y (5 per pack) 2
14 BLOCKSLIDE-SPRING-1.53" 2
15 SLIDE SPRING-SHORT (2 per pack) 2
16 WASHERFLAT- 3/8 X 1.000 X .063 Z&Y (10 per pack) 2
17 SCREWCAP-HFH 3/8-16 X 2.50 Z&Y (2 per pack) 2
18 PIVOTREAR SHOCK-FABR (inc. 23-24) 1
19 WASHER- GREASE FITTING (5 per pack) 1
20 FITGREASE-1/4-28 UNF-SELF THREAD (5 per pack) 1
21 SPACERAUX WHEEL-INSIDE 1
22 AXLESTEEL-8.75 (THRU BOLT) 1
23 WASHER FLAT-.641 X 1.187 X .060 Z&Y (10 per pack) 4
24 SPACERALUM-THK WALL 1.410 2
25 WHEELIDLER-5.63(2-5/8DIA INSR) (inc. 27-30) 2
26 INSERT5/8 BORE X 2 OD (SHORT) (2 per pack) 2
27 RING INTERNAL RETAINING (5 per pack) 2
28 BEARINGBALL-25MM 2
29 INSERT5/8 BORE X 1.580 OD (2 per pack) 2
30 SPACERREAR WHEEL-CTR 1
31 AXLEXBRC-.785X13.518 (3/8-16) 1
32 WHEELIDL-8.00 W.787"ID BLK (OPEN) (inc. two No. 11-12) 2
33 BEARINGWHL-NSK CHINA 6004-W/ENS GREASE 4
34 RINGINTERNAL RETAINING-tahos_165 4
35 BUSHINGADJUSTER-MACH 4
36 NUTJAM 3/8-16 (20 per pack) 2
37 HHCS 3/8-16X4.0 THREADED GR5 Z&Y (4 per pack) 2
38 WHEELIDL-8.00 W.787"ID PRL CAT GRN Green (inc. two No. 11-12) 2
39 WASHERFLAT 1.00X.390X.164 Z&Y (5 per pack) 2
40 SCREWCAP-HFH 3/8-16X1.125 W/2353 (5 per pack) 2
41 CAPIDL WHL-BLACK 2
