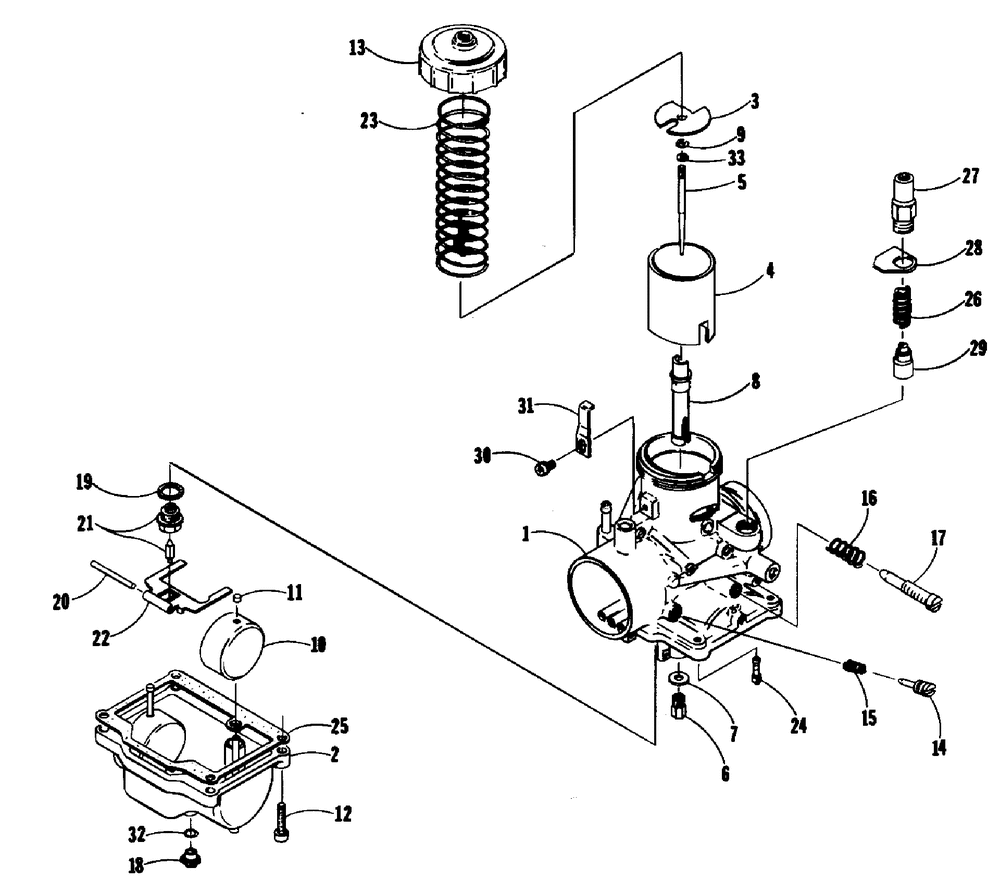

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| CARBURETOR VM30 | 1 | ||
| 2 | BODY ASSY FLOAT CHAMBER | 1 | |
| 3 | PLATE | 1 | |
| 4 | SLIDE3.0 CUTAWAY | 1 | |
| 5 | NEEDLE JET 5DP7 | 1 | |
| 6 | JET MAIN 300 | 1 | |
| 7 | WASHERJET MAIN (3 per pack) | 1 | |
| 8 | NEEDLE JET P4-169 | 1 | |
| 9 | E-RING (5 per pack) | 1 | |
| 10 | FLOAT | 2 | |
| 11 | CAP (5 per pack) | 2 | |
| 12 | SCREWCROSS W/WASHER (5 per pack) | 4 | |
| 13 | CHAMBERMIXING TOP | 1 | |
| 14 | SCREWAIR | 1 | |
| 15 | SPRINGSCREW AIR | 1 | |
| 16 | SPRING | 1 | |
| 17 | SCREW THROTTLE STOP | 1 | |
| 18 | SCREW DRAIN | 1 | |
| 19 | WASHERSEAT VALVE (5 per pack) | 1 | |
| 20 | PINFLOAT ARM | 1 | |
| 21 | VALVENEEDLE | 1 | |
| 22 | ARM FLOAT | 1 | |
| 23 | SPRINGPISTON VALVE | 1 | |
| 24 | JET PILOT 25 (International) | 1 | |
| 25 | GASKET (2 per pack) | 1 | |
| 26 | SPRINGSTARTER PLUNGER (5 per pack) | 1 | |
| 27 | CAPSTARTER PLUNGER | 1 | |
| 28 | WASHER | 1 | |
| 29 | PLUNGERSTARTER | 1 | |
| 30 | SCREW (W/SPRING WASHER) (5 per pack) | 1 | |
| 31 | PLATE | 1 | |
| 32 | O-RING PLUG CARBURETOR (2 per pack) | 1 | |
| 33 | WASHER E-RING NYLON (5 per pack) | 1 |
