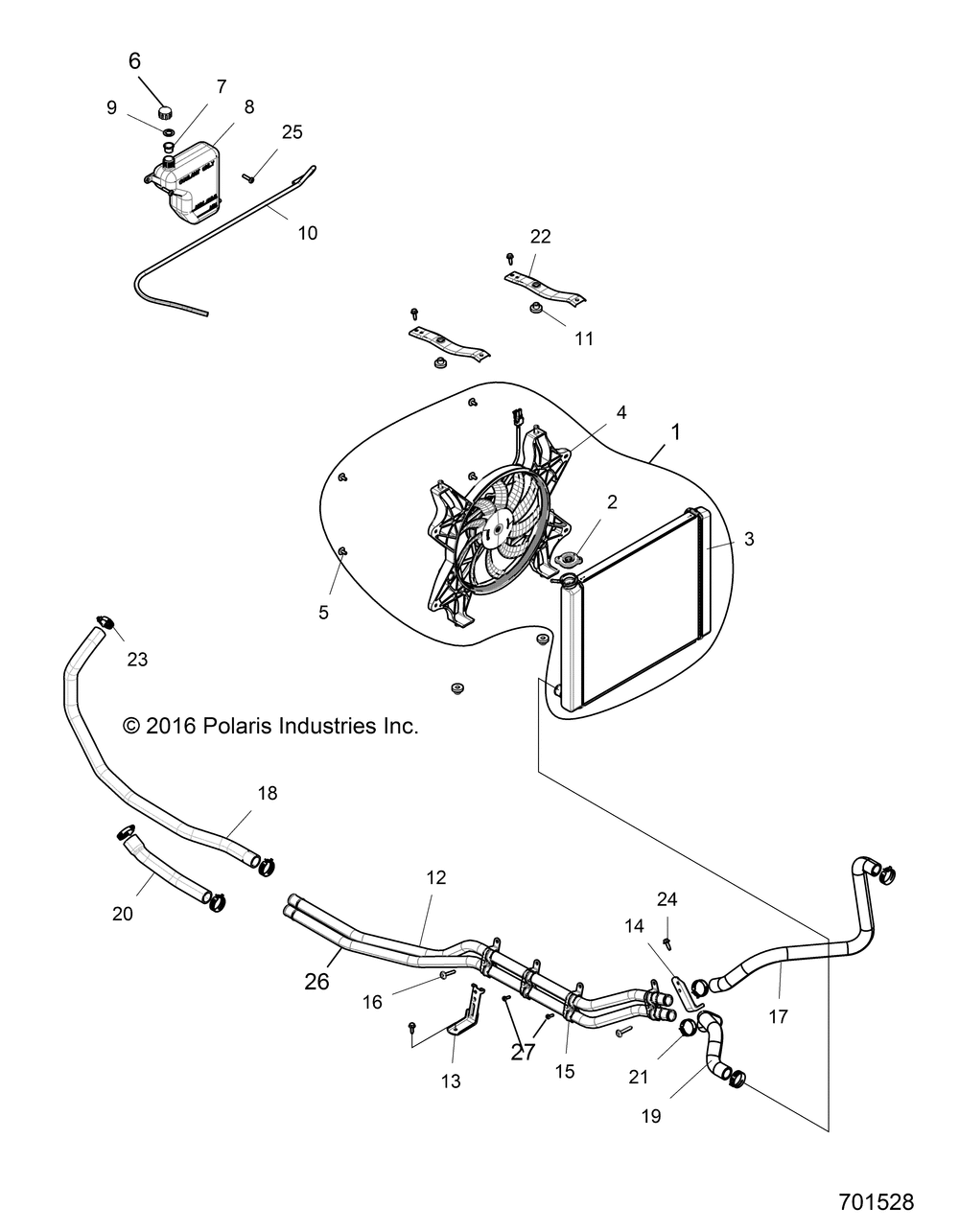

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | ASM. RADIATOR | 1 | |
| 2 | CAP | 1 | |
| 3 | ASM. RADIATOR CORE | 1 | |
| 4 | FAN ASM. | 1 | |
| 5 | BOLT-M6X15MM | 4 | |
| 6 | CAP OVERFLOW | 1 | |
| 7 | CAPPLUG9X(GRN)FLEX TEMP(10) | 1 | |
| 8 | TANK-SURGE | 1 | |
| 9 | GASKET (10) (10 per pack) | 1 | |
| 10 | LINEFUEL1/4 ID(1525 CM.) [BULK SVC] | 0 | |
| 11 | GROMMET | 4 | |
| 13 | BRACKET COOLANT TUBE BLACK | 1 | |
| 14 | BRACKET COOLANT TUBE BLACK | 1 | |
| 15 | BRACKET-COOLANT TUBE | 4 | |
| 16 | SCR-M6X1X40TR/TX-M | 2 | |
| 17 | HOSE UPPER RADIATOR | 1 | |
| 18 | HOSE ENGINE OUTLET REAR | 1 | |
| 19 | HOSE LOWER RADIATOR LONG | 1 | |
| 20 | HOSE-ENGINE INLET | 1 | |
| 21 | CLAMPSPRINGBAND 35/12BLK | 6 | |
| 22 | BRACKET UPPER RADIATOR MOUNT BLACK | 2 | |
| 23 | CLAMP-HOSE(WORM DR)25-40MM (Worm Drive) | 2 | |
| 24 | SCR-M6X1.0X20HXHDFLGTDFMBL( | 4 | |
| 25 | SCR-tahos_14X1 HI/LO-PH-PN TRX-M | 2 | |
| 27 | SCREW(10) (10 per pack) | 2 |
