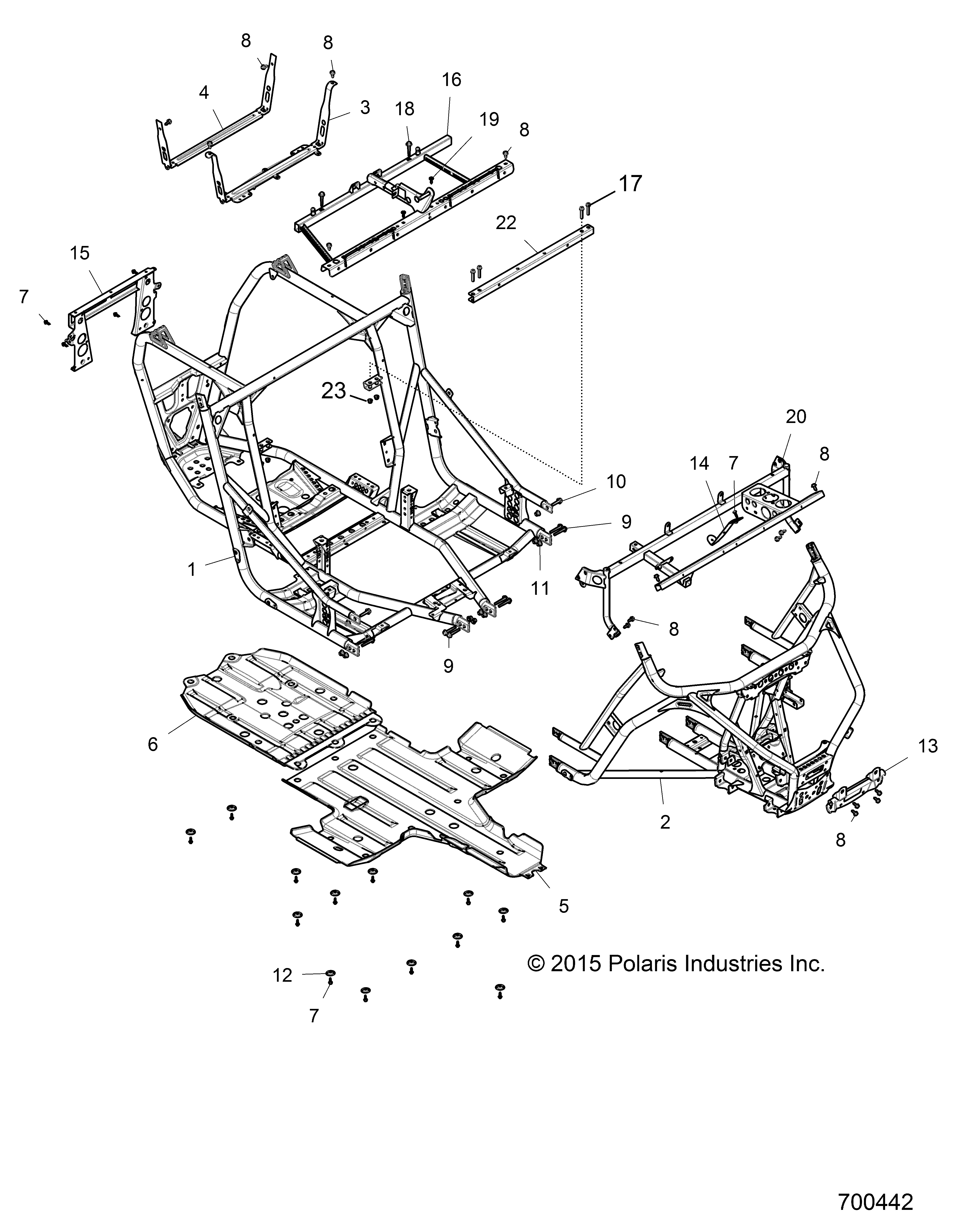

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRAME MAIN BLACK | 1 | |
| 2 | FRAME MAIN FRONT BLACK | 1 | |
| 3 | BRACKET BOX STRAP BLACK | 1 | |
| 4 | BRACKET BOX SUPPORT REAR BLACK | 1 | |
| 5 | PLATE SKID BLACK | 1 | |
| 6 | PLATE SKID REAR BLACK | 1 | |
| 7 | SCR-M6X1.0X20HXHDFLGTDFMBL( | 18 | |
| 8 | BOLT-M8X1.25X20HXFLGTAP/R-OD | 16 | |
| 9 | SCR-HXFL-M10X1.25X55 10.9 ZOD | 8 | |
| 10 | SCR-HXFL-M10X1.25X40 8.8 ZOD | 4 | |
| 11 | NUT-M10X1.25FLGNYLOC-OLIVE D( | 10 | |
| 12 | WASHER SKID PLATE | 13 | |
| 13 | BRKT-SUSP MNTFRTM.BLK | 1 | |
| 14 | BRACKET DIN. MOUNT BLACK | 1 | |
| 15 | SUPPORT REAR BLACK | 1 | |
| 16 | SEAT BASE BLACK | 1 | |
| 17 | SCREW(10) (10 per pack) | 4 | |
| 18 | BOLT-M10X1.5X55HX HD FLG | 2 | |
| 19 | SCR-TXTH-M6X1.0X25 RIE(10) (10 per pack) | 2 | |
| 20 | DASH E-COAT BLACK | 1 | |
| 22 | BRKT-CLOSE OFF SUPPORTBLK | 1 | |
| 23 | NUT-M8X1.25FLGNYLOC-OLIVE D | 4 |
