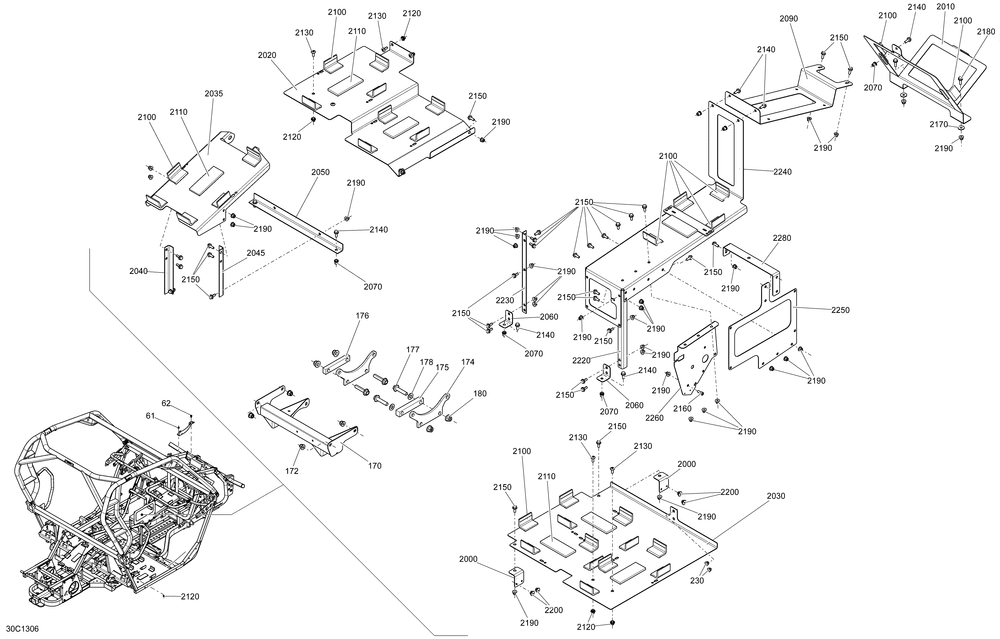

Can-Am Commander (Electric 9Kw) STD, XT, LSV Commander (Electric 9Kw) STD, XT, LSV 09- Frame
09- Frame
№ Наименование Примечание Кол-во
61 Hex. Flanged Elastic Nut M8 1
62 HEX. FLANGED SCREW M8 X 16 SCOTCH GRIP (2.000 per pack) 1
170 REAR DIFFERENTIAL SUPPORT 1
174 INFERIOR DIFFERENTIAL SUPPORT 2
175 RH INFERIOR DIFFERENTIAL SUPPORT 1
176 LH INFERIOR DIFFERENTIAL SUPPORT 1
177 HEX. FLANGED SCREW M10 X 45 (10.000 per pack) 4
178 Flat Washer 10 mm 2
180 Hex. Flanged Elastic Nut M10 4
230 HEMLOCK RIVET 6.5 MM (5.000 per pack) 2
2000 BATTERY TRAY BRACKET 2
2010 FRONT SUPPORT BATTERY 1
2020 LH TRAY BATTERY 1
2030 RH TRAY BATTERY 1
2035 REAR TRAY BATTERY 1
2040 LH REAR BRACKET 1
2045 RH REAR BRACKET 1
2050 REAR BRACKET 1
2060 FRONT BRACKET 2
2070 INSERT 7
2090 SUPPORT 1
2100 SLIDER SHOE BATTERY 31
2110 PAD 7
2120 INSERT Except XMR 7
2130 Torx Truss Screw M6 X 16 6
2140 Hex. Flanged Screw M6 X 16, Scotch Grip 7
2150 Hex. Flanged Screw M6 X 16 31
2160 SOCKET SCREW M6 X 16 (10.000 per pack) 1
2170 FLAT WASHER (10.000 per pack) 2
2180 Hex. Flanged Screw M6 X 20 2
2190 Hex. Flanged Elastic Nut M6 34
2200 Pop Rivet 3/16" 4
2220 RH SIDE ANGLE 1
2230 LH SIDE ANGLE 1
2240 PLATEAU CENTRAL*BASE PLATE 1
2250 SUPPORT 1
2260 SUPPORT 1
2280 SUPPORT 1
