Can-Am Maverick MAX 1000_STD_XRS-DPS Maverick MAX 1000_STD_XRS-DPS 09- Body And Accessories _31C1509

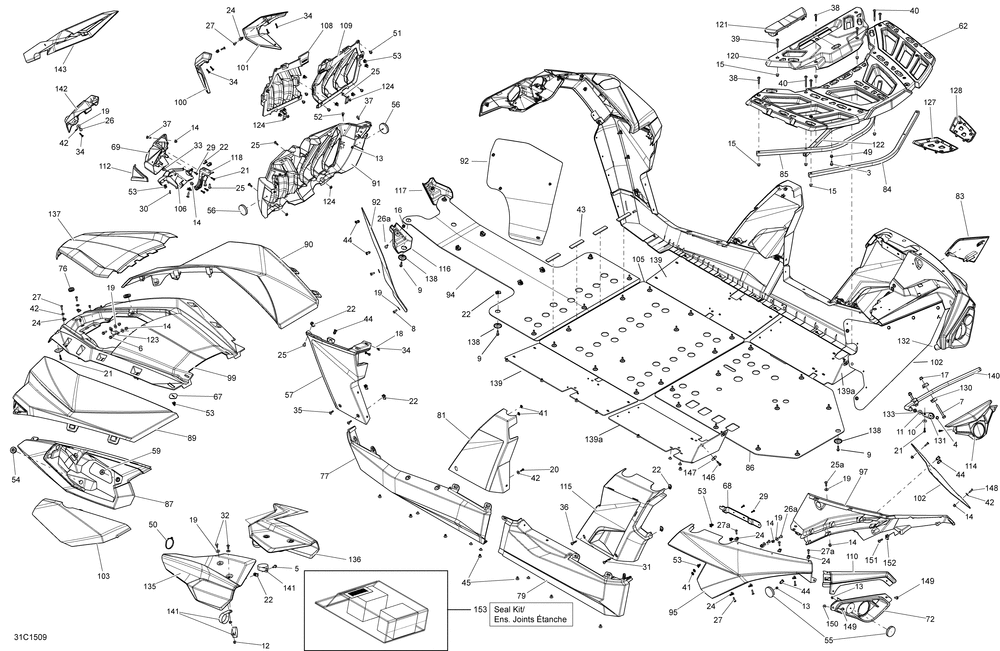

09- Body And Accessories _31C1509
№ Наименование Примечание Кол-во
3 Hex. Flanged Screw M6 X 16, Scotch Grip 2
4 Hex. Flanged Screw M6 X 25 2
5 HEX. FLANGED SCREW M6 X 20 (5.000 per pack) 2
6 HEX. FLANGED SCREW M6 X 20 (10.000 per pack) 2
7 HEX. FLANGED SCREW M8 X 70 2
8 HEX. FLANGED SCREW M6 X 16 (10.000 per pack) 4
9 HEX. FORMING SCREW M6 X 20 (10.000 per pack) 34
10 Flat Washer 2
11 FLAT WASHER (10.000 per pack) 2
12 Hex. Flanged Nut M6 4
13 Elastic Flanged Nut M5 0
14 Hex. Flanged Elastic Nut M6 0
15 FLANGED ELASTIC NUT M6 (8.000 per pack) 0
16 Hex. Elastic Flanged Nut M6 2
17 Hex. Flanged Elastic Nut M8 2
18 FLAT WASHER M5 (10.000 per pack) 4
19 Flat Washer, Stainless 0
20 HEX. FLANGED SCREW K50 X 16 (5.000 per pack) 2
21 HEX. FLANGED SCREW K50 X 20 (5.000 per pack) 0
22 Panel Nut M6 X 1.0 0
24 PANEL NUT M5 X 0.8 (10.000 per pack) 0
25 TORX SCREW M6 X 20 Model-RT STD 0
25a Torx Screw M6 X 20 2
27 TORX SCREW M5 X 20 (10.000 per pack) 0
29 TRUSS HEAD TORX SCREW K50 X 16 (5.000 per pack) 6
30 SELF TAPPING SCREW tahos_8 X 5/8 (5.000 per pack) 2
31 TORX SCREW M6 X 45 1
32 TORX SCREW M6 X 16 (12.000 per pack) 4
33 TORX SCREW M6 X 25 2
34 TRUSS HEAD TORX SCREW K50 X 20 10
34 TORX SCREW M6 X 20 8
35 Torx Truss Screw M6 X 20 4
36 Torx Truss Screw M6 X 30 2
37 Torx Truss Screw M6 X 20 2
38 TORX SCREW M6 X 35 BZN Model Jet Black 8
39 TORX SCREW M6 X 45 Engine 1000R 2
40 TORX SCREW M6 X 60 2
41 PUSH NUT (2.000 per pack) 7
42 WASHER M5 (10.000 per pack) 8
43 PAD 4
44 Tuflok Plastic Rivet 12
45 Pop Rivet 3/16" 0
49 INSERT Except XMR 2
50 Tie-Rap 350 mm 2
51 Rubber Bumper 5
52 DART GS Black A19N Model (10.000 per pack) 2
53 Edge Clip 0
54 RONDELLE *GROMMET 2
55 Red Reflector 0
56 AMBER REFLECTOR Except Europe Model 2
57 WHITE LH FRONT LATERAL PANNEL Package XC STD White Model 1
57 WHITE RH FRONT LATERAL PANNEL Package XC STD White Model 1
57 RED LH FRONT LATERAL PANNEL Red Model 1
57 RED RH FRONT LATERAL PANNEL Red Model 1
57 YELLOW RH FRONT LATERAL PANNEL Yellow Model 1
57 YELLOW LH FRONT LATERAL PANNEL Yellow Model 1
59 GROMMET 2
62 REAR RACK KIT 1
67 SUPPORT PLATE 11
68 LH REAR FENDER SUPPORT 1
68 RH REAR FENDER SUPPORT 1
69 LH FRONT FACIA 1
69 RH FRONT FACIA 1
72 LH REAR FACIA Except Europe Model 1
72 RH REAR FACIA Except Europe Model 1
76 OVAL WASHER 2
77 BLACK LH LOWER PANEL Package DPS 1
77 BLACK RH LOWER PANEL 1
79 BLACK LH REAR LOWER PANEL 1
79 BLACK RH REAR LOWER PANEL 1
81 YELLOW LH CENTER CAGE PANEL Yellow Model 1
81 YELLOW RH CENTER CAGE PANEL Yellow Model 1
81 WHITE LH CENTER CAGE PANEL 1
81 WHITE RH CENTER CAGE PANEL 1
81 RED RH CENTER CAGE PANEL 1
81 RED LH CENTER CAGE PANEL 1
83 YELLOW RH PANEL COVER Yellow Model 1
83 WHITE RH PANEL COVER 1
83 RED RH PANEL COVER 1
84 TUBE *TUBE Except XMR 1
85 TUBE *TUBE Except XMR 1
86 REAR SKID PLATE 1
87 YELLOW LH FRONT FENDER 1
87 YELLOW RH FRONT FENDER 1
87 BLACK LH FRONT FENDER Black Model 1
87 BLACK RH FRONT FENDER Black Model 1
87 RED LH FRONT FENDER Red Model 1
87 RED RH FRONT FENDER Red Model 1
89 CAPOT *HOOD Model-Black/Yellow 1
89 CAPOT *HOOD Package XC STD White Model 1
89 CAPOT *HOOD Red Model 1
90 CAPOT *HOOD Model-Black/Yellow 1
90 CAPOT *HOOD Package XC STD White Model 1
90 CAPOT *HOOD Red Model 1
91 FRONT RADIATOR GRILL 1
92 INNER FENDER 2
94 FRONT SKID PLATE 1
95 YELLOW LH REAR FENDER 1
95 YELLOW RH REAR FENDER 1
95 BLACK LH REAR FENDER Black Model 1
95 BLACK RH REAR FENDER Black Model 1
95 ROUGE CAN-AM LH REAR FENDER Red Model 1
95 ROUGE CAN-AM RH REAR FENDER Red Model 1
97 LH REAR INNER FENDER 1
97 INNER FENDER 1
99 FIXE CENTER HOOD Except Package XMR 1
100 YELLOW LH BUMPER CAP Model-Black/Yellow 1
100 RED LH BUMPER CAP Package DPS Quarry Gray Model 1
100 RED LH BUMPER CAP Red Model 1
101 YELLOW RH BUMPER CAP Model-Black/Yellow 1
101 RED RH BUMPER CAP Package DPS Quarry Gray Model 1
101 RED RH BUMPER CAP Red Model 1
102 DEFLECTOR Package XC XXC XMR 2
103 YELLOW LH COVER FRONT FENDER 1
103 YELLOW RH COVER FRONT FENDER 1
103 BLACK LH COVER FRONT FENDER Package XMR White 1
103 BLACK RH COVER FRONT FENDER Package XMR White 1
103 RED LH COVER FRONT FENDER Red Model 1
103 RED RH COVER FRONT FENDER Red Model 1
105 PLAQUE *SKID PLATE 1
106 YELLOW LH FRONT FENDER TRIM 1
106 YELLOW RH FRONT FENDER TRIM 1
106 BLACK LH FRONT FENDER TRIM Package XXC White 1
106 BLACK RH FRONT FENDER TRIM Package XXC White 1
106 RED LH FRONT FENDER TRIM Red Model 1
106 RED RH FRONT FENDER TRIM Red Model 1
108 LH REAR RADIATOR GRILL 1
109 RH REAR RADIATOR GRILL 1
110 YELLOW LH REAR FACIA TRIM 1
110 YELLOW RH REAR FACIA TRIM 1
110 BLACK LH REAR FACIA TRIM Black Model 1
110 BLACK RH REAR FACIA TRIM Black Model 1
110 RED LH REAR FACIA TRIM Red Model 1
110 RED RH REAR FACIA TRIM Red Model 1
112 LH FRONT FACIA TRIM 1
112 RH FRONT FACIA TRIM 1
114 LOGO SUPPORT 1
115 WHITE LH REAR LATERAL PANEL Package XC STD White Model 1
115 RED LH REAR LATERAL PANEL Red Model 1
115 RH REAR LATERAL PANEL RED 1
115 WHITE RH REAR LATERAL PANEL 1
115 YELLOW LH REAR LATERAL PANEL Model-Black/Yellow 1
115 YELLOW RH REAR LATERAL PANNEL 1
116 LH BUMPER SKID CAP Europe Model Black Carbon 1
117 RH BUMPER SKID CAP Europe Model Black Carbon 1
118 LH FRONT FACIA SUPPORT 1
118 RH FRONT FACIA SUPPORT 1
120 BAGAGE CENTRAL RACK Engine 1000R 1
121 CENTRAL BAGAGE RACK CAP Engine 1000R 1
122 BAGAGE RACK TUBE Engine 1000R 1
123 CLAMP 1
124 RADIATOR GRILL BRACKET 2
127 LH BAGAGE RACK COVER 1
128 RH BAGAGE RACK COVER 1
130 REAR SUPPORT FACIA CLIP 4
131 LH REAR FACIA SUPPORT 1
132 RH REAR FACIA SUPPORT 1
133 TUBE CONNECTOR 2
135 YELLOW LH TOP CENTER CAGE COVER Yellow Model 1
135 BLACK LH TOP CENTER CAGE COVER Except Yellow Model 1
135 RED LH TOP CENTER CAGE COVER 1
136 YELLOW RH TOP CENTER CAGE COVER Yellow Model 1
136 BLACK RH TOP CENTER CAGE COVER Except Yellow Model 1
136 RED RH TOP CENTER CAGE COVER 1
137 BLACK REMOVABLE HOOD Package DPS 1
138 CUP Model Hunter 34
139 SIDE PROTECTOR PLATE 2
139a LATERAL SKID PLATE Except Package Hunter 2
140 BODY TUBE 1
141 ATTACHE *"P" CLAMP 6
142 LH BUMPER GRILL Package DPS Except Europe Model 1
143 RH BUMPER GRILL Package DPS Except Europe Model 1
146 Washer Head Hexagonal Screw 4
147 FLAT WASHER (25.000 per pack) 4
148 Torx Screw M5 X 20 4
