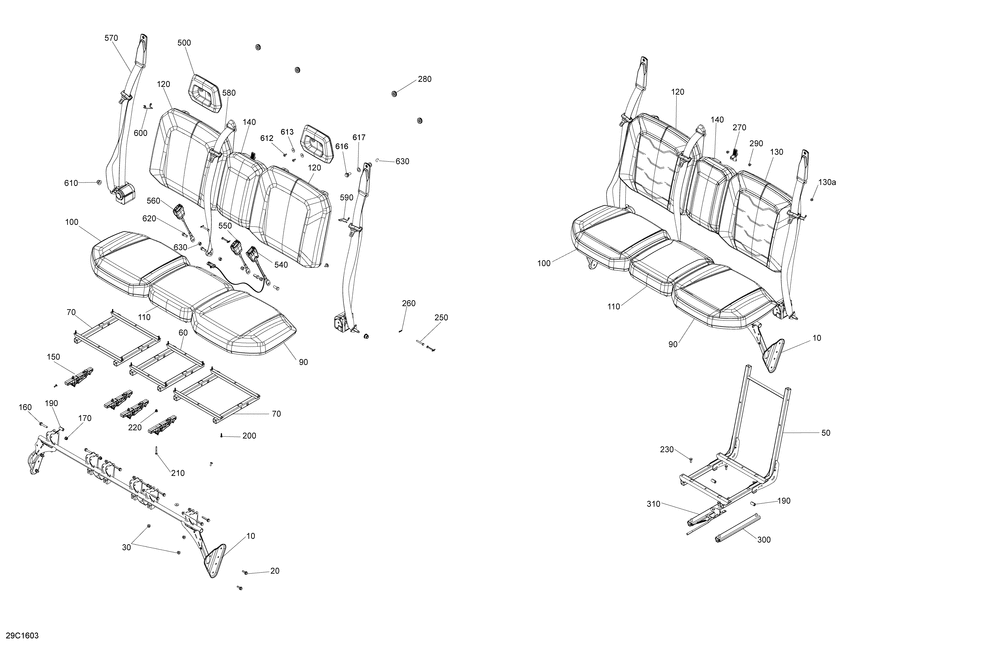

09- Seat

№	Наименование	Кол-во
10	SEAT MEMBER Package XT Cab	1
10	SEAT MEMBER Except Package XT Cab	1
20	Hex. Flanged Screw M8 X 25	4
30	Hex. Flanged Elastic Nut M8	6
50	FRAME Package XT Cab	1
60	FRAME	1
70	FRAME Except Package XT Cab	2
90	SEAT BASE ASSY Package XT Cab	1
90	SEAT BASE ASSY Except Package XT Cab	1
100	SEAT BASE ASSY Package XT Cab	1
100	SEAT BASE ASSY Except Package XT Cab	1
110	SEAT BASE ASSY Package XT Cab	1
110	SEAT BASE ASSY Except Package XT Cab	1
120	BACKREST ASSY Package XT Cab	1
120	BACKREST ASSY Except Package XT Cab	2
130>130a	BACKREST ASSY Package XT Cab	1
130a	Rubber Bumper	2
140	BACKREST ASSY Package XT Cab	1
140	BACKREST ASSY Except Package XT Cab	1
150	ATTACHE BASE *BASE BRAKET	4
160	HEX. FLANGED SCREW M8 X 45 (10.000 per pack)	4
190	DOUILLE *BUSHING	4
200	Torx Screw Truss Head K50X20 T20	12
210	HEX. SCREW M6 X 45 (10.000 per pack)	4
220	Hex. Flanged Elastic Nut M6	4
230	HEX. SCREW M8 X 20 (10.000 per pack)	4
250	GOUPILLE *CLEVIS PIN	2
260	GOUPILLE RESSOR*HAIRPIN CUTTER (4.000 per pack)	2
270	LATCH (2.000 per pack)	1
280	RONDELLE *GROMMET	2
300	LH RAIL	1
310	GLISSIERE *RH.RAIL Package XT Cab	1
320	STOPPER Package XT Cab	2
500	APPUIE-TETE *HEADREST	2
540	DRIVER BUCKLE	1
550	MIDDLE BUCKLE	1
560	BUCKLE	1
570	SAFETY BELT	2
580	SAFETY BELT	1
605	HEX. SCREW M12 X 80	2
606	FLAT WASHER M12 (5.000 per pack)	2
610	ELASTIC FLANGE NUT M12 (5.000 per pack)	2
612	Torx Screw	4
613	WASHER-FLAT M6.6 X 22	4
616	SAFETY BELT SCREW	3
617	POSITION WASHER	5
620	HEX. CAP SCREW 7/16 X 1 (2.000 per pack)	4
630	NYLON INSERT HEX. LOCK NUT 7/16-20	4
