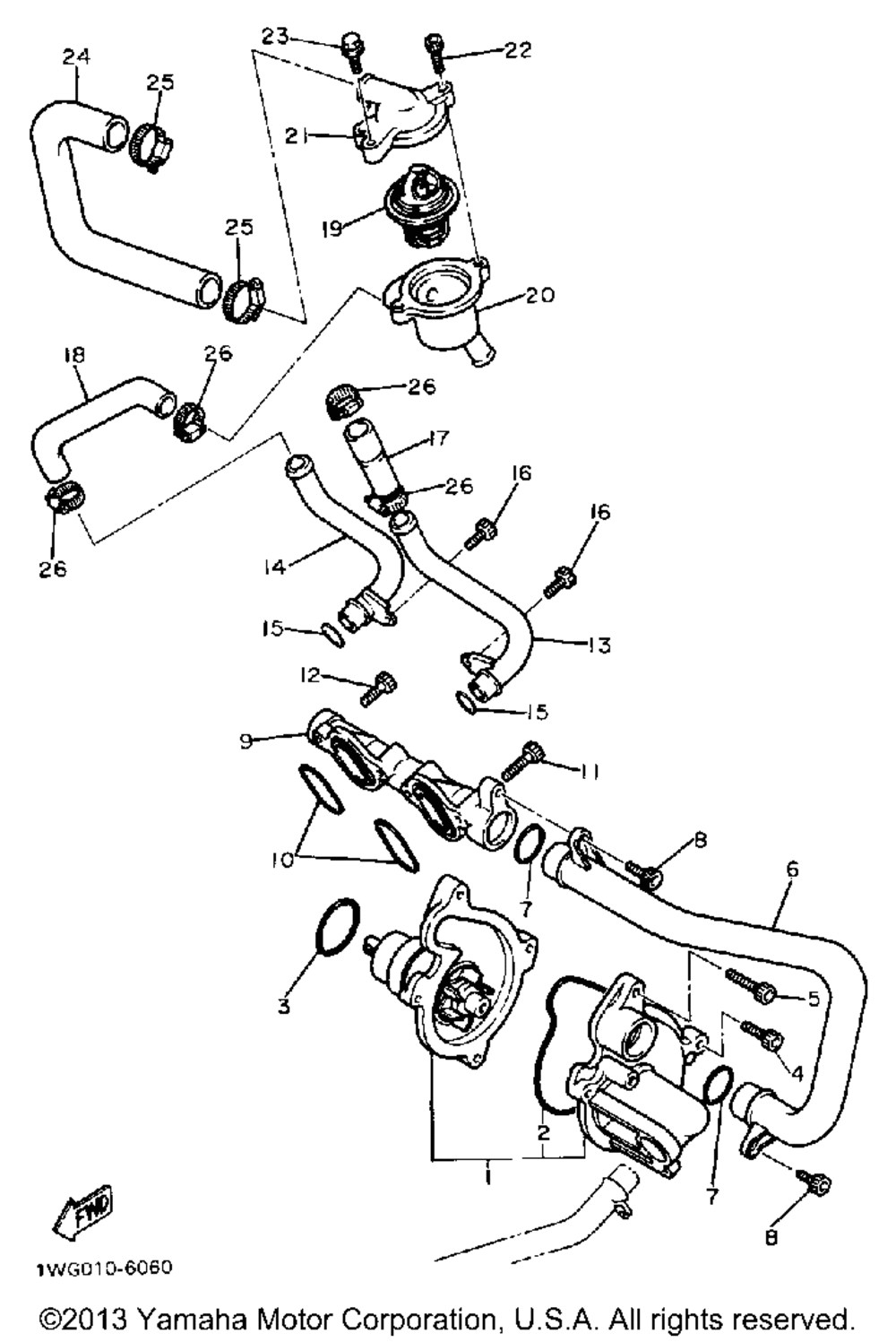

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | WATER PUMP ASSY | 1 | |
| 2 | O-RING | 1 | |
| 3 | O-RING | 1 | |
| 4 | BOLT HEXAGON SOCKET HEAD | 2 | |
| 5 | BOLT (4MY) | 2 | |
| 6 | PIPE 1 | 1 | |
| 7 | O-RING (5 per pack) | 2 | |
| 8 | BOLT (4MY) | 2 | |
| 9 | JOINT | 1 | |
| 10 | O-RING | 2 | |
| 11 | BOLT (4MY) | 3 | |
| 13 | PIPE 2 | 1 | |
| 14 | PIPE 3 | 1 | |
| 15 | O-RING (5 per pack) | 2 | |
| 17 | HOSE 1 | 1 | |
| 18 | HOSE 2 | 1 | |
| 19 | THERMOSTAT ASSY | 1 | |
| 20 | HOUSINGTHERMOSTAT | 1 | |
| 21 | COVER THERMOSTAT | 1 | |
| 22 | BOLT (4FL) | 2 | |
| 23 | BOLT FLANGE | 1 | |
| 24 | HOSE4 | 1 | |
| 25 | HOSE CLAMP ASSY | 2 | |
| 26 | HOSE CLAMP ASSY | 4 |
