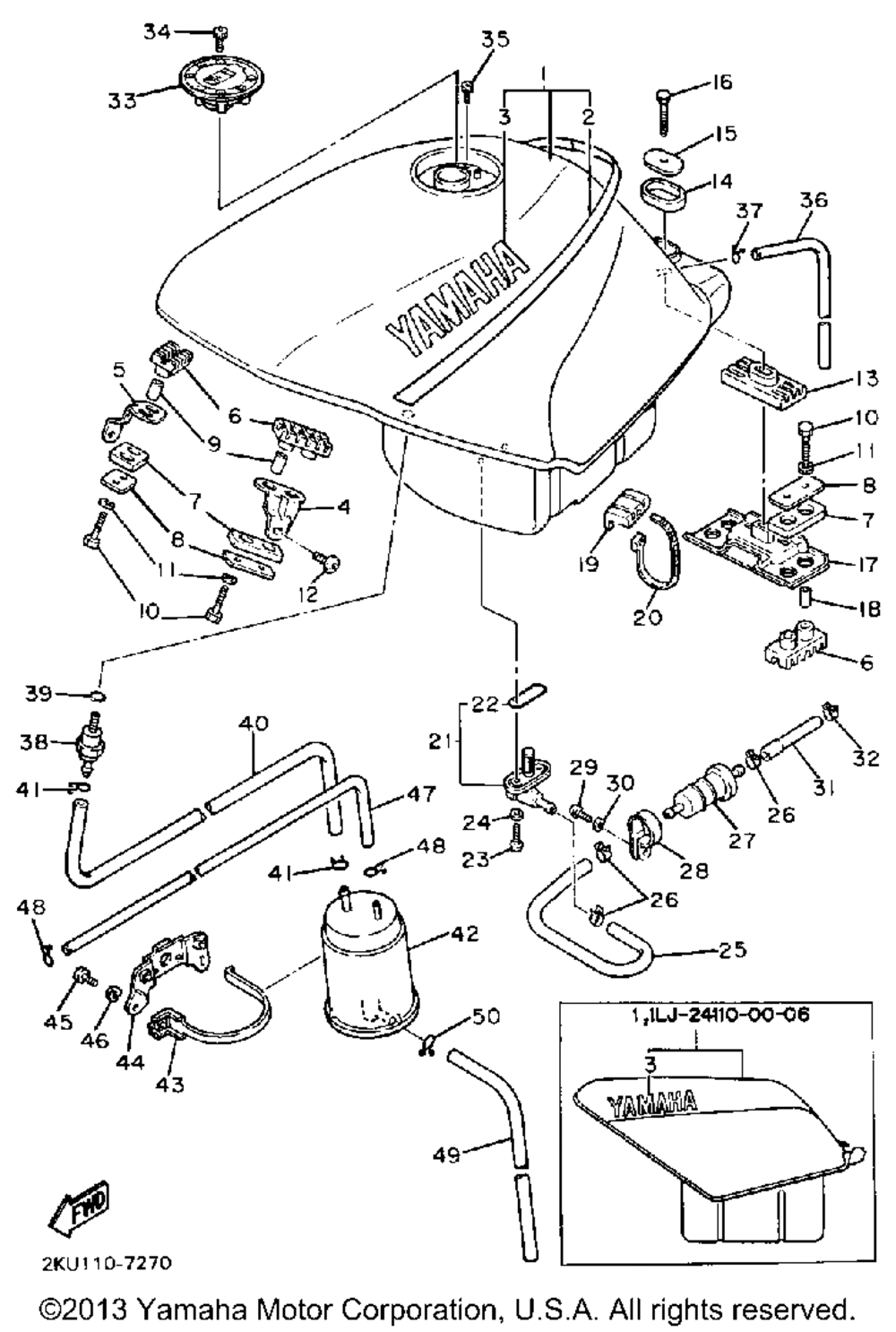

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK UR SILKY WHT/DYNASTY BLUE | 1 | |
| 2 | GRAPHIC SET FOR SW/DYB | 1 | |
| 3 | EMBLEMYAMAHA (DPBSE | 2 | |
| 4 | BRACKETFUEL TNK 1 | 1 | |
| 5 | BRACKETFUEL TNK 2 | 1 | |
| 6 | DAMPERLOCATING 1 | 4 | |
| 7 | DAMPERLOCATING 3 | 4 | |
| 8 | WASHERSPECIAL | 4 | |
| 9 | COLLAR | 4 | |
| 10 | BOLT(3RV) | 9 | |
| 11 | WASHER (5 per pack) | 8 | |
| 12 | BOLT | 2 | |
| 13 | DAMPER LOCATING 3 | 1 | |
| 14 | DAMPERLOCATING 3 | 1 | |
| 15 | WASHERSPECIAL | 1 | |
| 16 | BOLTHEXAGON (97001-08030-00) | 1 | |
| 19 | DAMPERLOCATING 2 | 2 | |
| 20 | Хомут | 2 | |
| 21 | FUEL COCK ASY 1 | 1 | |
| 22 | GASKET | 1 | |
| 23 | SCREWSPEC'L SHAPE | 2 | |
| 24 | WASHERPLATE | 2 | |
| 25 | PIPEFUEL 1 | 1 | |
| 26 | CLIPSCISSOR | 3 | |
| 27 | FILTER ASSY (FUEL) | 1 | |
| 28 | CLAMPFUEL PIPE 1 | 1 | |
| 29 | SCREWPAN HEAD | 1 | |
| 31 | PIPE 5 | 1 | |
| 32 | CLIPSCISSOR | 1 | |
| 33 | CAP ASSY | 1 | |
| 34 | BOLTHEX SKT HEAD | 3 | |
| 35 | BOLT SCKT HD | 1 | |
| 36 | HOSE (L730) | 1 | |
| 37 | CLIP | 1 | |
| 38 | ROLL OVER VLV ASSY FOR CAL | 1 | |
| 39 | O-RING FOR CAL | 1 | |
| 40 | HOSE | 1 | |
| 49 | HOSE (L125) | 1 | |
| 50 | CLIP | 1 |
