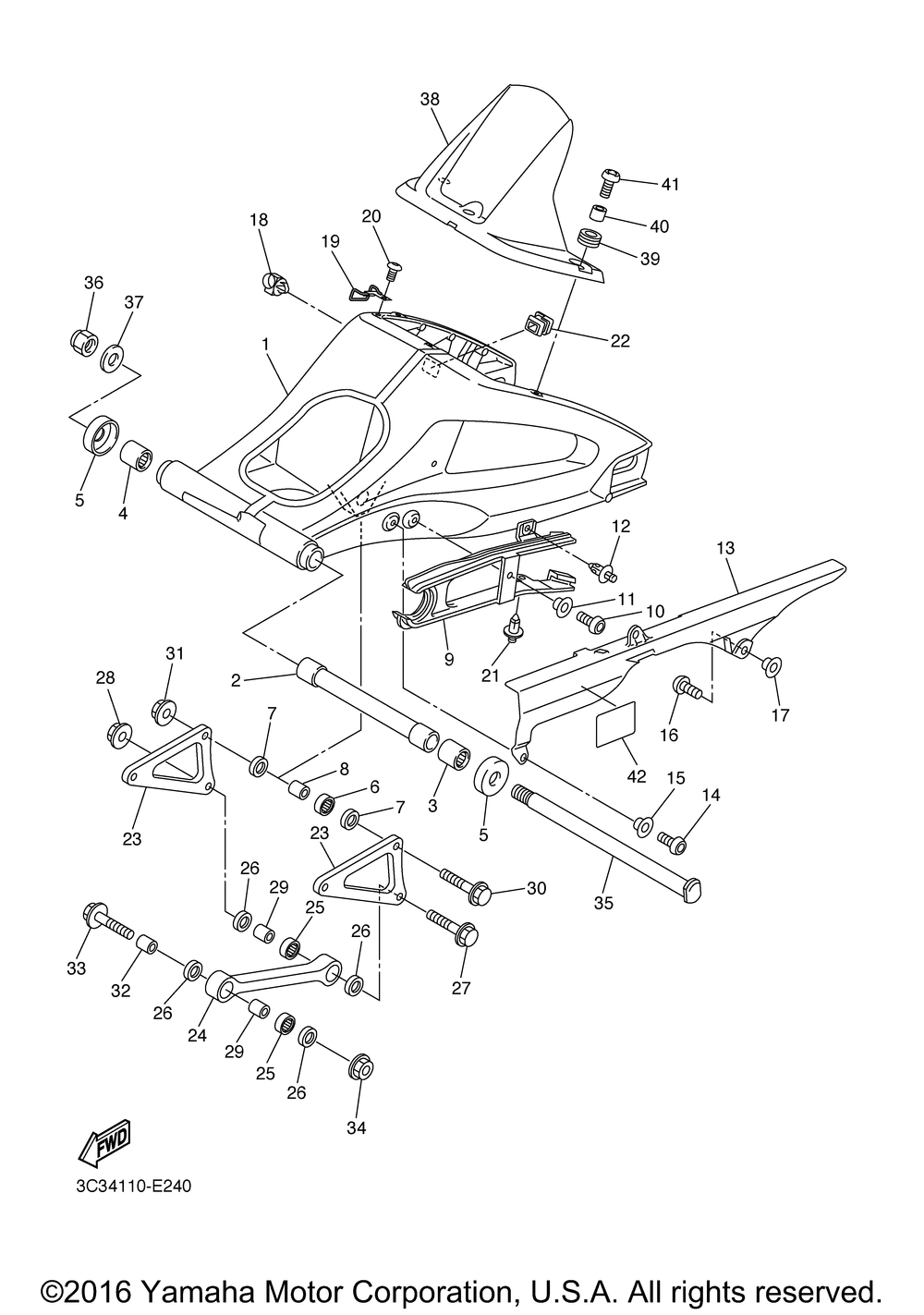

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | REAR ARM COMP. | 1 | |
| 2 | BUSH | 1 | |
| 3 | BEARING | 1 | |
| 4 | BEARINGCYL.tahos_15 | 1 | |
| 5 | COVER THRUST 1 | 2 | |
| 6 | BEARING | 1 | |
| 7 | OIL SEAL | 2 | |
| 8 | COLLAR | 1 | |
| 9 | SEAL GUARD | 1 | |
| 10 | BOLT BUTTON HEAD | 1 | |
| 11 | COLLAR | 1 | |
| 12 | RIVET | 1 | |
| 13 | CASE CHAIN | 1 | |
| 16 | BOLTHEX SKT HEAD | 2 | |
| 17 | COLLAR | 2 | |
| 18 | CLAMP | 1 | |
| 19 | HOLDER BRAKE HOSE | 1 | |
| 21 | RIVET | 1 | |
| 22 | CAP | 1 | |
| 23 | ARM RELAY | 2 | |
| 24 | ARM 1 | 1 | |
| 25 | BEARING | 2 | |
| 27 | BOLT FLANGE | 1 | |
| 28 | NUTSELF-LOCKING | 1 | |
| 32 | COLLAR | 1 | |
| 33 | BOLTWASHER BASED | 1 | |
| 35 | SHAFT PIVOT | 1 | |
| 36 | NUT SELF-LOCKING | 1 | |
| 37 | WASHER PLATE | 1 | |
| 38 | REAR FENDER COMP. | 1 | |
| 39 | GROMMET | 3 | |
| 40 | COLLAR | 3 | |
| 41 | SCREWSPEC'L SHAPE | 3 | |
| 42 | LABEL TIRE | 1 |
