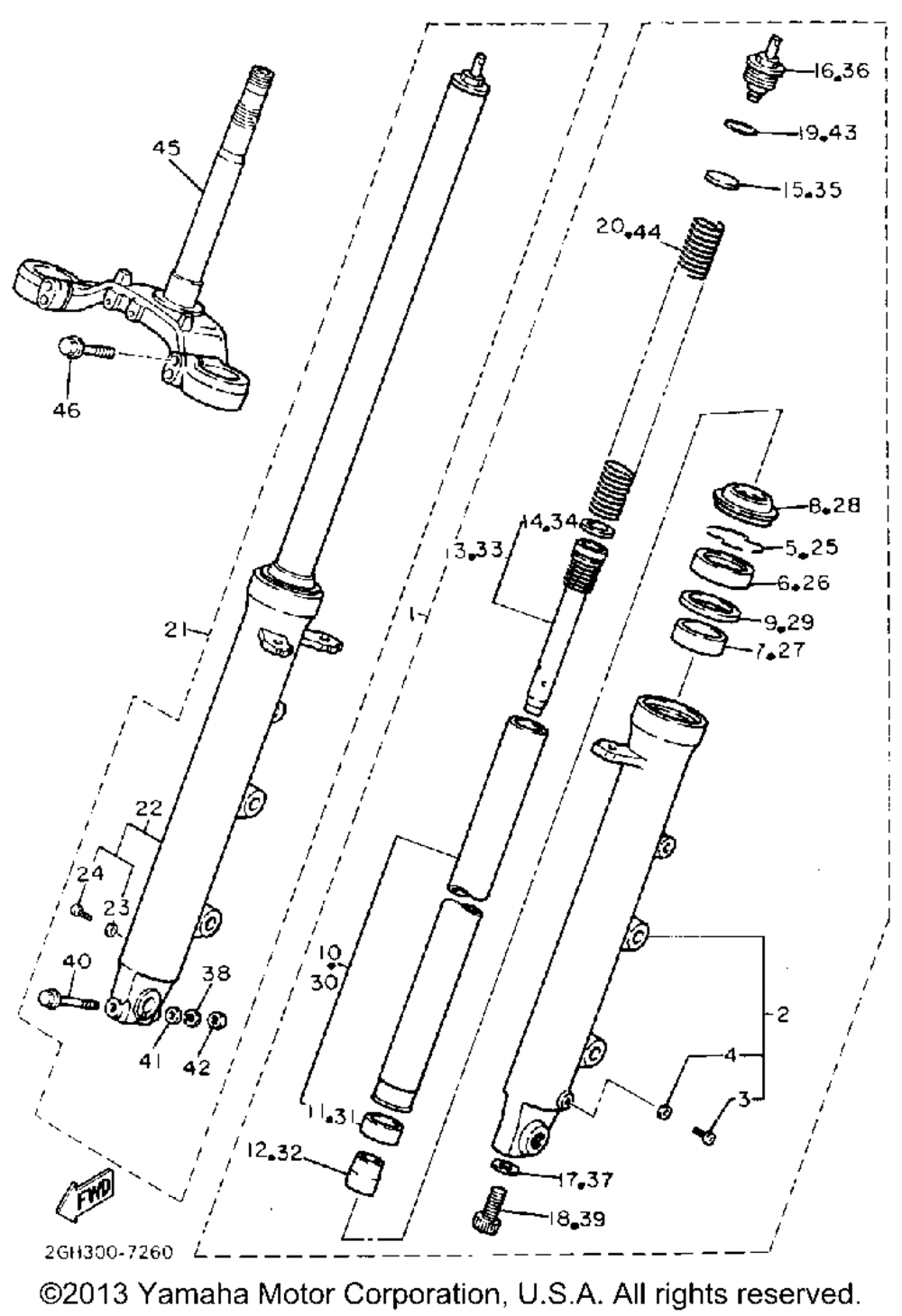

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRONT FORK ASY L | 1 | |
| 2 | TUBE OUTER 1 | 1 | |
| 3 | SCREWPAN HEAD | 1 | |
| 4 | GASKETDRAIN PLUG | 1 | |
| 5 | CLIPOIL SEAL | 1 | |
| 6 | OIL SEAL | 1 | |
| 7 | METALSLIDE 1 | 1 | |
| 8 | SEALDUST | 1 | |
| 9 | WASHEROIL SEAL | 1 | |
| 10 | INNER TUBE 1 | 1 | |
| 11 | PISTONFRONT FORK | 1 | |
| 13 | CYLINDERFRTFRK | 1 | |
| 14 | RINGPISTON FRTFRK | 1 | |
| 15 | WASHERSPRING UPR | 1 | |
| 16 | BOLTCAP | 1 | |
| 17 | GASKET | 1 | |
| 18 | BOLTHEX SCKT HEAD | 1 | |
| 19 | O-RING | 1 | |
| 20 | SPRINGFRONT FORK | 1 | |
| 21 | FRONT FORK ASY R | 1 | |
| 22 | TUBE OUTER 2 | 1 | |
| 38 | WASHERSPRING | 1 | |
| 40 | BOLTAXLE HOLDER | 1 | |
| 41 | WASHER (5 per pack) | 1 | |
| 42 | NUT (6L2) | 1 | |
| 45 | UNDER BRACKET | 1 | |
| 46 | BOLT FLANGE | 4 |
