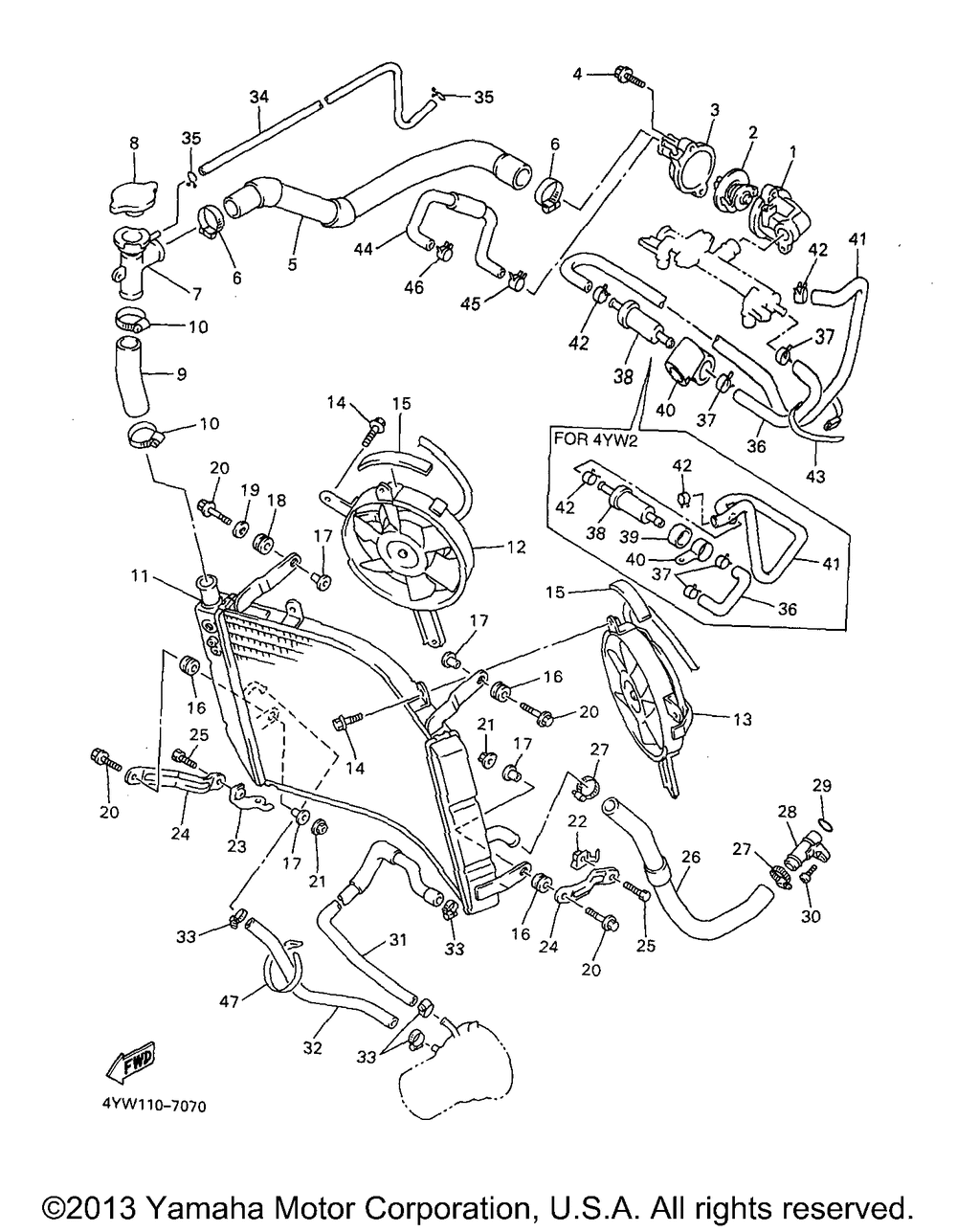

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HOUSINGTHERMOSTAT | 1 | |
| 2 | THERMOSTAT ASSY | 1 | |
| 3 | COVER ASSYTHERMO. | 1 | |
| 4 | BOLT WASHER (4KG) | 2 | |
| 5 | HOSE 1 | 1 | |
| 6 | HOSE CLAMP ASSY | 2 | |
| 7 | SUPT FILLER NECK | 1 | |
| 8 | CAP RADIATOR | 1 | |
| 9 | HOSE 2 | 1 | |
| 11 | RADIATOR ASSY | 1 | |
| 12 | BLOWER ASSY | 1 | |
| 13 | BLOWER ASSY | 1 | |
| 14 | BOLTFLANGE | 6 | |
| 15 | DAMPER 1 (USA) (5 per pack) | 2 | |
| 16 | GROMMET | 3 | |
| 17 | COLLAR | 4 | |
| 18 | GROMMET | 1 | |
| 19 | WASHER PLATE | 1 | |
| 20 | BOLTFLANGE | 4 | |
| 21 | NUTFLANGE (4MV) | 2 | |
| 22 | BRACKET 1 | 1 | |
| 23 | BRACKET 1 | 1 | |
| 24 | STAY RADIATOR | 2 | |
| 25 | BOLT | 2 | |
| 26 | HOSE 4 | 1 | |
| 28 | PIPE 4 | 1 | |
| 29 | O'RING | 1 | |
| 30 | BOLTHEX SKT HEAD | 1 | |
| 31 | HOSE 5 | 1 | |
| 32 | HOSE 6 | 1 | |
| 33 | HOSE CLAMP ASSY | 4 | |
| 34 | HOSE (L960) | 1 | |
| 35 | CLIPSCISSOR | 2 | |
| 36 | HOSE 7 CA ONLY | 1 | |
| 36 | HOSE 7 NON-CA | 1 | |
| 37 | CLIPSCISSOR | 2 | |
| 38 | THERMOSTAT COVER A | 1 | |
| 38 | THERMOSTAT COVER A CA ONLY | 1 | |
| 39 | PROTECTOR CA ONLY | 1 | |
| 40 | CLAMP 1 CA ONLY | 1 | |
| 40 | Adapter | 1 | |
| 41 | HOSE 8 CA ONLY | 1 | |
| 41 | Hose 8 NON-CA | 1 | |
| 43 | Хомут | 1 | |
| 44 | HOSE 2 | 1 | |
| 45 | CLIPSCISSOR | 1 | |
| 46 | CLIP FOR CAL | 1 | |
| 47 | BANDSWITCH CORD | 1 |
