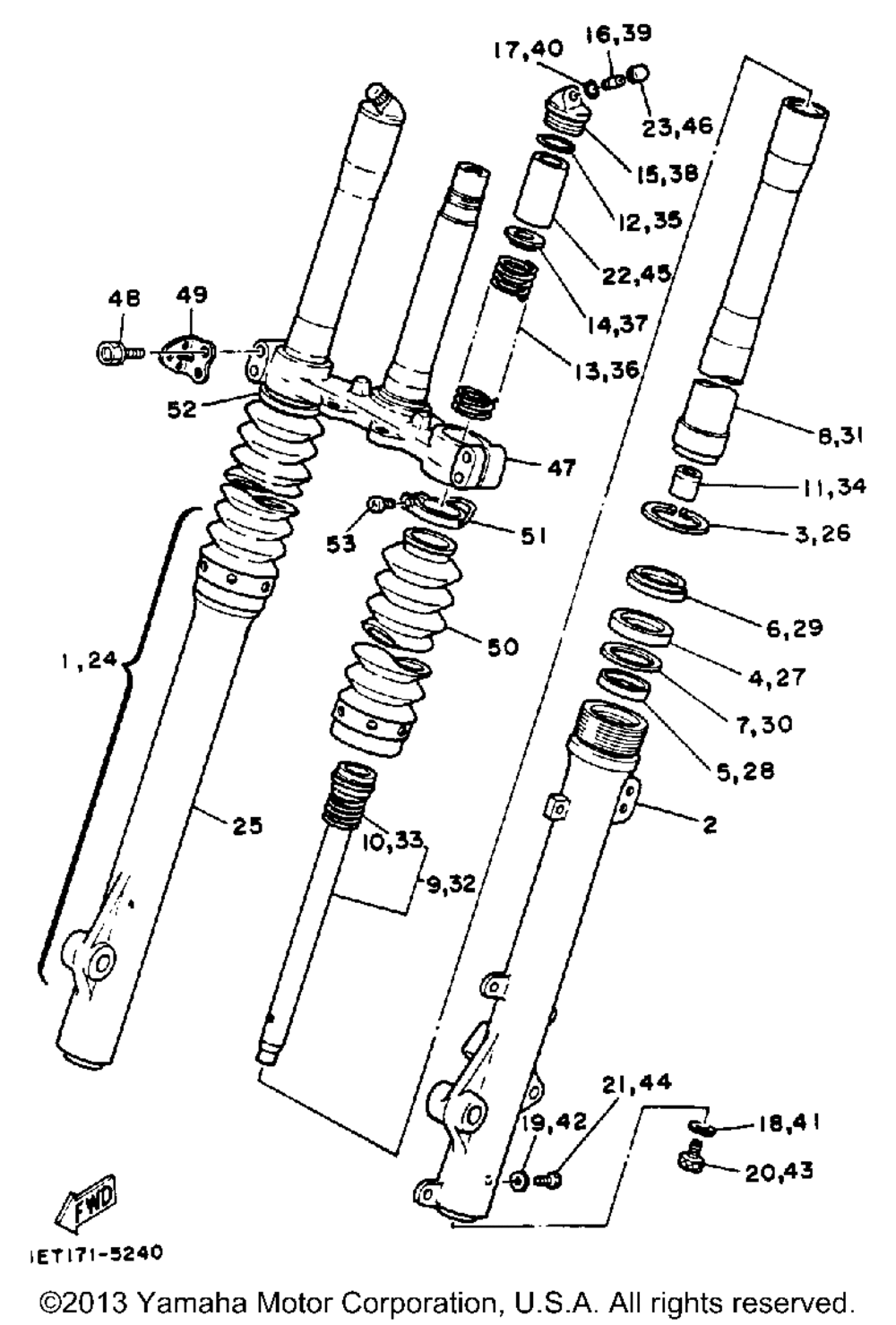

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FRONT FORK ASSY LH (L.H) | 1 | |
| 2 | TUBEOUTER 1 (LEFT) | 1 | |
| 3 | CLIPOIL SEAL | 1 | |
| 4 | OIL SEAL | 1 | |
| 5 | METALSLIDE 1 | 1 | |
| 6 | SEALDUST | 1 | |
| 7 | WASHERSPRING UPR | 1 | |
| 8 | INNER TUBE 1 | 1 | |
| 9 | CYLINDERFRTFRK | 1 | |
| 10 | SPRINGREBOUND | 1 | |
| 11 | SPINDLETAPER | 1 | |
| 12 | GASKET | 1 | |
| 13 | SPRINGFRONT FORK | 1 | |
| 14 | SEATSPRING UPPER | 1 | |
| 15 | BOLTCAP | 1 | |
| 16 | AIR VALVE | 1 | |
| 17 | O-RING | 1 | |
| 18 | GASKET (KYB) | 1 | |
| 19 | GASKETDRAIN PLUG | 1 | |
| 20 | BOLT HEXAGON SOCKET | 1 | |
| 21 | SCREWPAN HEAD | 1 | |
| 22 | SPACER | 1 | |
| 23 | CAPAIR VALVE | 1 | |
| 24 | FRONT FORK ASSY RH (RH) | 1 | |
| 25 | TUBEOUTER 2 (RIGHT) | 1 | |
| 47 | UNDER BRACKET | 1 | |
| 48 | BOLTAXLE HOLDER | 4 | |
| 49 | BRACKETRFLCTR 1 | 2 | |
| 50 | BOOTFRONT FORK RED | 2 | |
| 51 | BAND | 1 | |
| 52 | BAND BOOT | 1 | |
| 53 | SCREWBOOT BAND | 2 |
