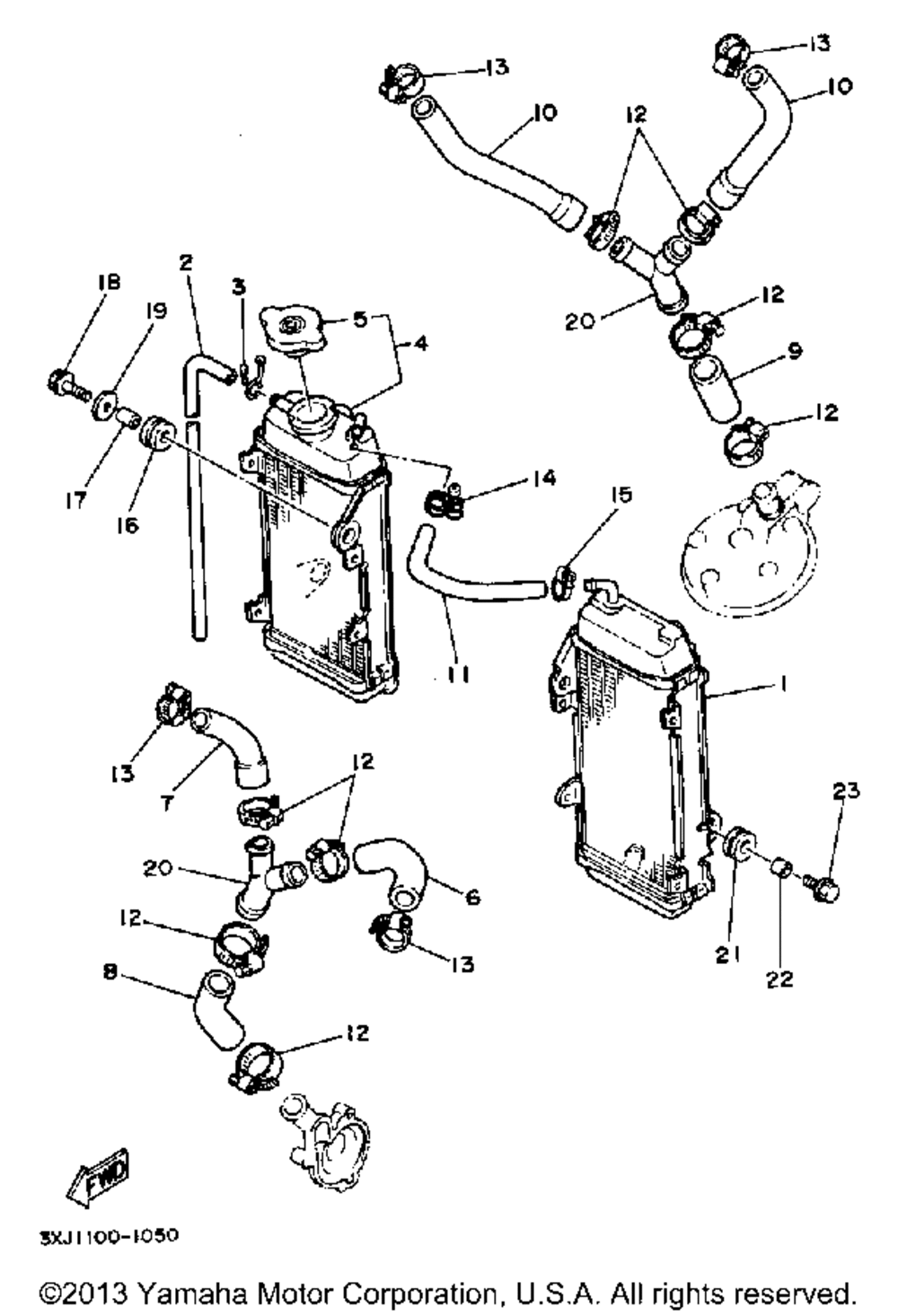

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | RADIATOR ASSY 2 | 1 | |
| 2 | TUBE FLEXIBLE (90446-09079) | 1 | |
| 3 | CLIP | 1 | |
| 4 | RADIATOR ASSY 2 | 1 | |
| 5 | CAPRADIATOR | 1 | |
| 6 | PIPE 1 | 1 | |
| 7 | PIPE 2 | 1 | |
| 8 | PIPE 3 | 1 | |
| 9 | PIPE 3 | 1 | |
| 10 | PIPE 6 | 2 | |
| 11 | PIPE 8 | 1 | |
| 12 | HOSE CLAMP ASSY | 8 | |
| 13 | HOSE CLAMP ASSY | 4 | |
| 14 | HOSE CLAMP ASSY | 1 | |
| 15 | HOSE CLAMP ASSY | 1 | |
| 16 | GROMMET | 2 | |
| 17 | COLLAR (2UJ) | 2 | |
| 18 | BOLTFLANGE | 2 | |
| 19 | WASHERPLATE | 2 | |
| 20 | JOINT 1 | 2 | |
| 21 | GROMMET | 2 | |
| 22 | COLLAR (90387-066J9) | 2 | |
| 23 | BOLTFLANGE | 2 |
