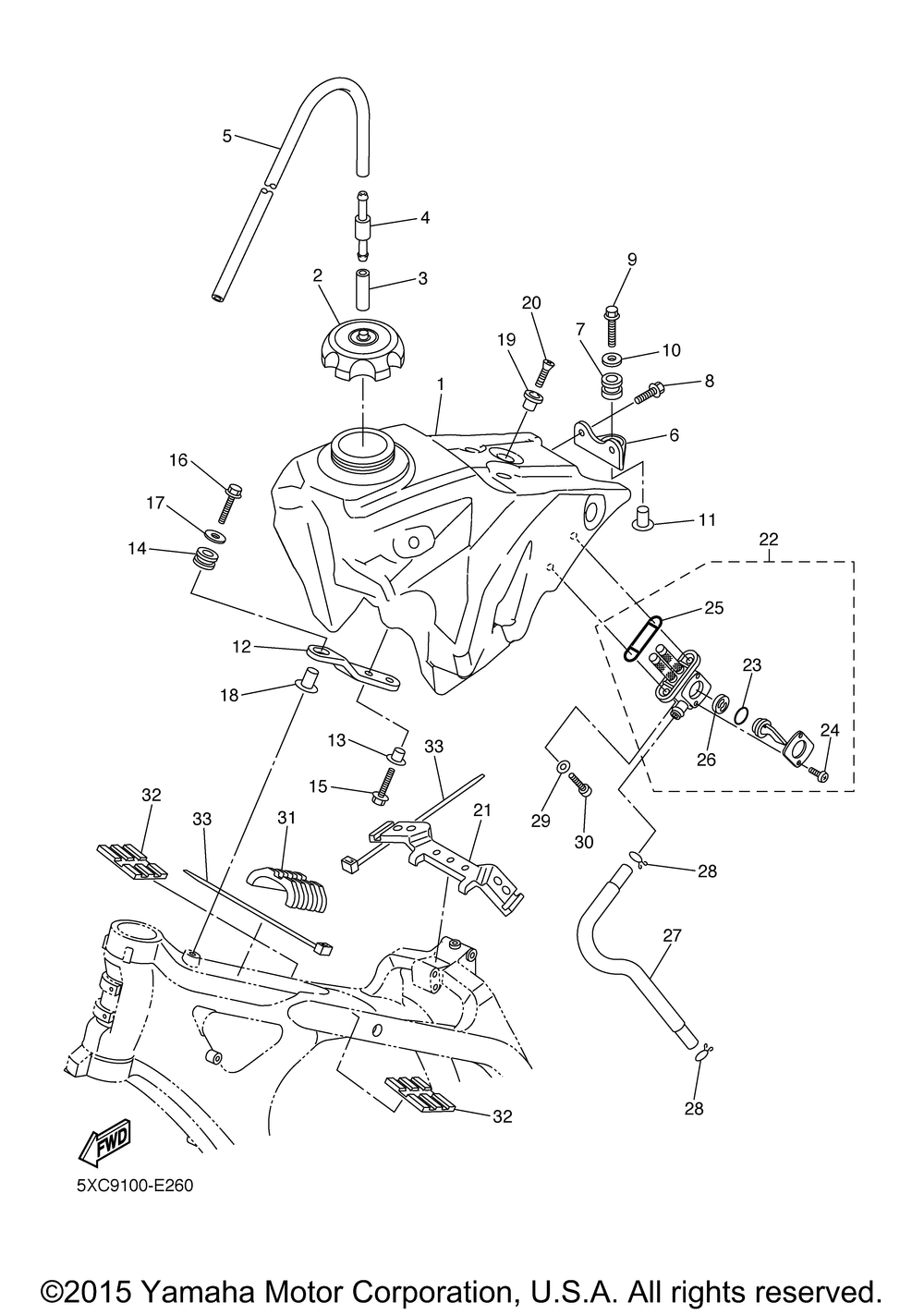

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | FUEL TANK COMP. | 1 | |
| 2 | CAP ASSY | 1 | |
| 3 | HOSE (L30) | 1 | |
| 4 | PIPE JOINT ASY | 1 | |
| 5 | HOSE (L350) | 1 | |
| 6 | HOLDER DAMPER | 1 | |
| 7 | GROMMET | 1 | |
| 8 | BOLT FLANGE | 2 | |
| 9 | BOLT FLANGE | 1 | |
| 10 | WASHERPLATE | 1 | |
| 11 | WASHERSPECIAL | 1 | |
| 12 | HOLDER | 1 | |
| 13 | COLLAR | 2 | |
| 14 | GROMMET | 1 | |
| 18 | COLLAR | 1 | |
| 19 | BRACKETSEAT | 1 | |
| 20 | SCREW FLAT HEAD | 1 | |
| 21 | DAMPER LOCATING 1 | 1 | |
| 22 | FUEL COCK ASSY 1 | 1 | |
| 23 | SEAL COCK | 1 | |
| 24 | SCREWPAN HEAD (5 per pack) | 2 | |
| 25 | O-RING | 1 | |
| 26 | VALVE PACKING | 1 | |
| 27 | PIPE FUEL 1 | 1 | |
| 28 | CLIP FOR CAL | 2 | |
| 29 | WASHERPLATE | 2 | |
| 30 | SCREW | 2 | |
| 31 | DAMPER LOCATING 2 | 1 | |
| 32 | DAMPER LOCATING 3 | 2 | |
| 33 | CLAMP | 3 |
