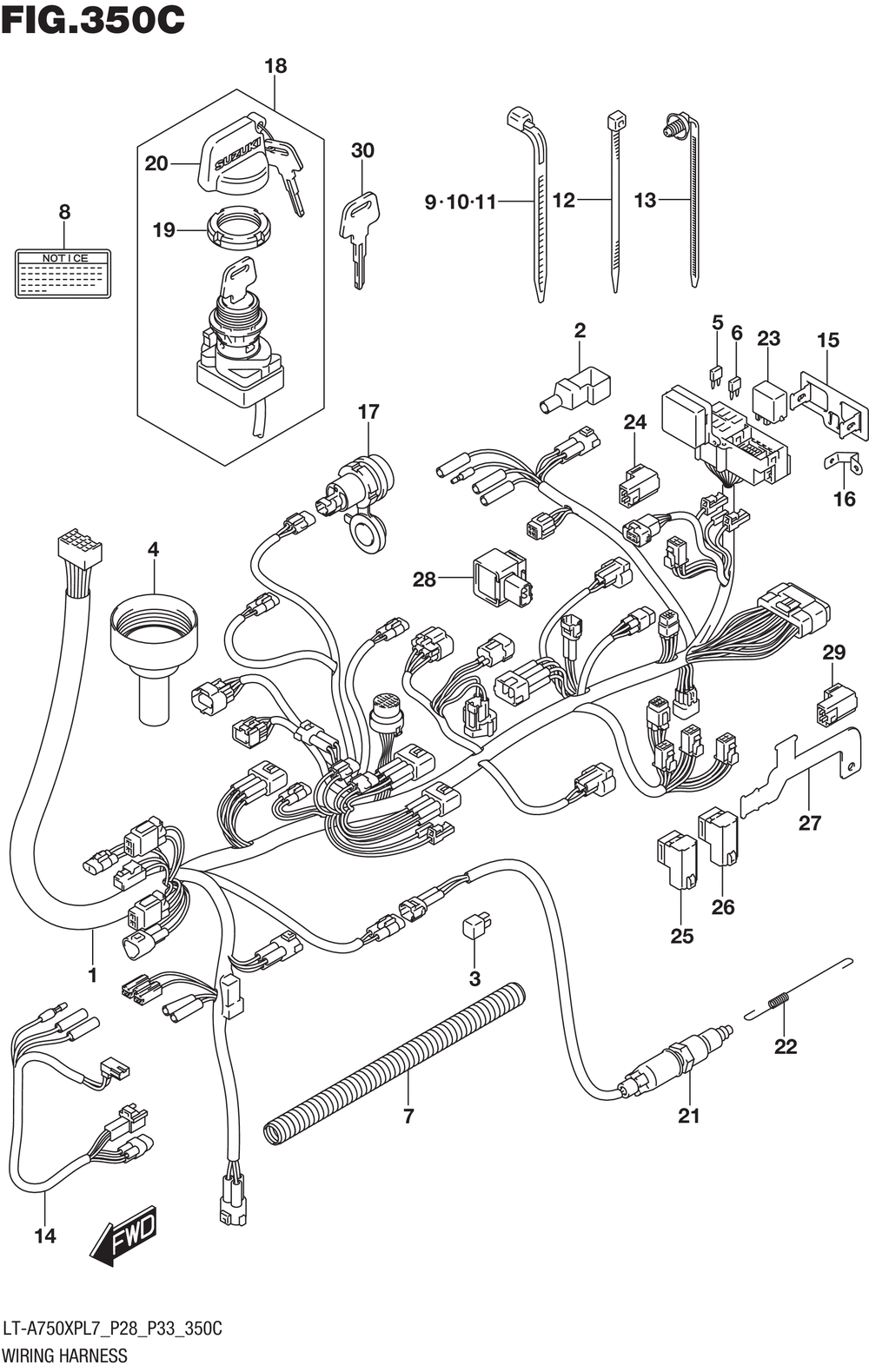

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | HARNESS WIRING | 1 | |
| 2 | .COVER CONNECTOR | 1 | |
| 3 | .RECTIFIER ASSY | 2 | |
| 4 | .COVER SPEED | 1 | |
| 5 | .FUSE (10A) | 4 | |
| 6 | .FUSE (15A) | 2 | |
| 7 | GUIDE WIRING HARNESS | 1 | |
| 8 | LABEL CAUTION MAX AMP | 1 | |
| 9 | CLAMP (L:95) | 2 | |
| 10 | CLAMP | 5 | |
| 11 | CLAMP(L:190) | 9 | |
| 12 | CLAMP (L:145) | 2 | |
| 13 | CLAMP | 1 | |
| 14 | WIRE FRONT BRAKE SW LEAD | 1 | |
| 15 | BRACKET FUSE BOX | 1 | |
| 16 | BRACKET FUSE | 1 | |
| 17 | TERMINAL POWER SOURCE | 1 | |
| 18 | SWITCH ASSY IGNITION | 1 | |
| 19 | NUTIGNITION SW | 1 | |
| 20 | COVER KEY BLAN | 1 | |
| 21 | SWITCH ASSY STOP LAMP | 1 | |
| 22 | SPRINGSTOP LAM | 1 | |
| 23 | RELAY NEUTRAL START | 1 | |
| 24 | RELAY ASSY (FOR NEUTRAL START) | 1 | |
| 27 | BRACKET RELAY | 1 | |
| 28 | RELAY ASSY DRIVE | 1 | |
| 29 | RELAY ASSY FAN MOTOR | 1 | |
| 30-1 | KEY BLANK (TYPE:C) (OPT) | 1 | |
| 30-2 | KEY BLANK (TYPE:D) (OPT) | 1 | |
| 30-3 | KEY BLANK TYPE (E) (OPT) | 1 | |
| 30-4 | KEY BLANK TYPE (F) (OPT) | 1 |
