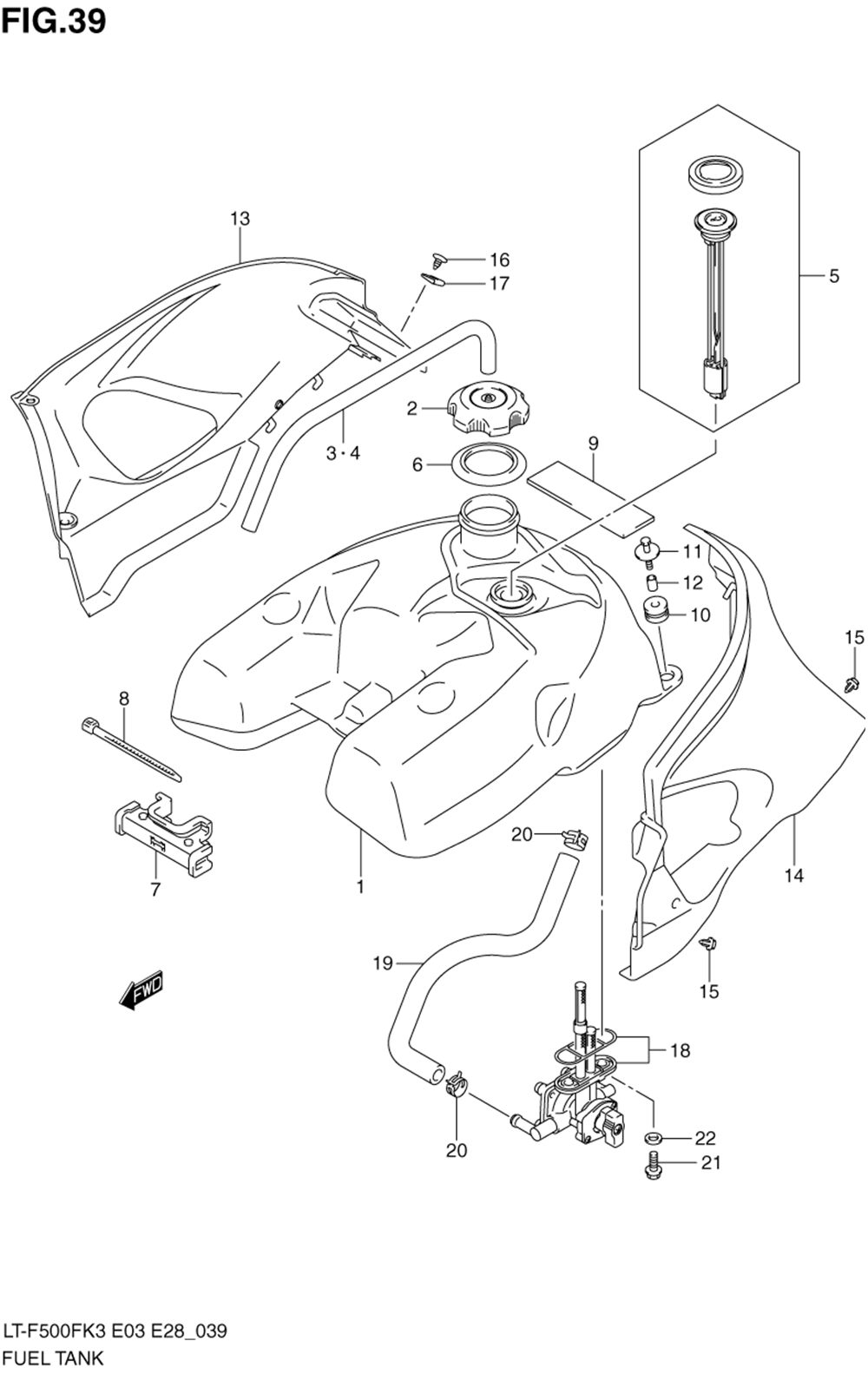

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | TANK ASSY FUEL | 1 | |
| 2 | CAPFUEL TANK F | 1 | |
| 3 | HOSE5X8.2X600 (L:600->250) | 1 | |
| 5 | GAUGE ASSYFUEL | 1 | |
| 6 | RUBBERFUEL TAN | 1 | |
| 7 | CUSHIONFUEL TA | 1 | |
| 8 | CLAMP (L:145) | 2 | |
| 9 | CUSHION TOOL HO | 1 | |
| 10 | CUSHION REAR | 2 | |
| 11 | BOLT | 2 | |
| 12 | SPACER6.5X10X1 | 2 | |
| 13 | COVERFUEL TANK | 1 | |
| 14 | COVERFUEL TANK | 1 | |
| 15 | CLIP | 6 | |
| 16 | SCREW | 1 | |
| 17 | NUT | 1 | |
| 18 | COCK ASSYFUEL | 1 | |
| 19 | HOSEFUEL | 1 | |
| 20 | CLIP | 2 | |
| 21 | BOLT | 2 | |
| 22 | GASKET | 2 |
