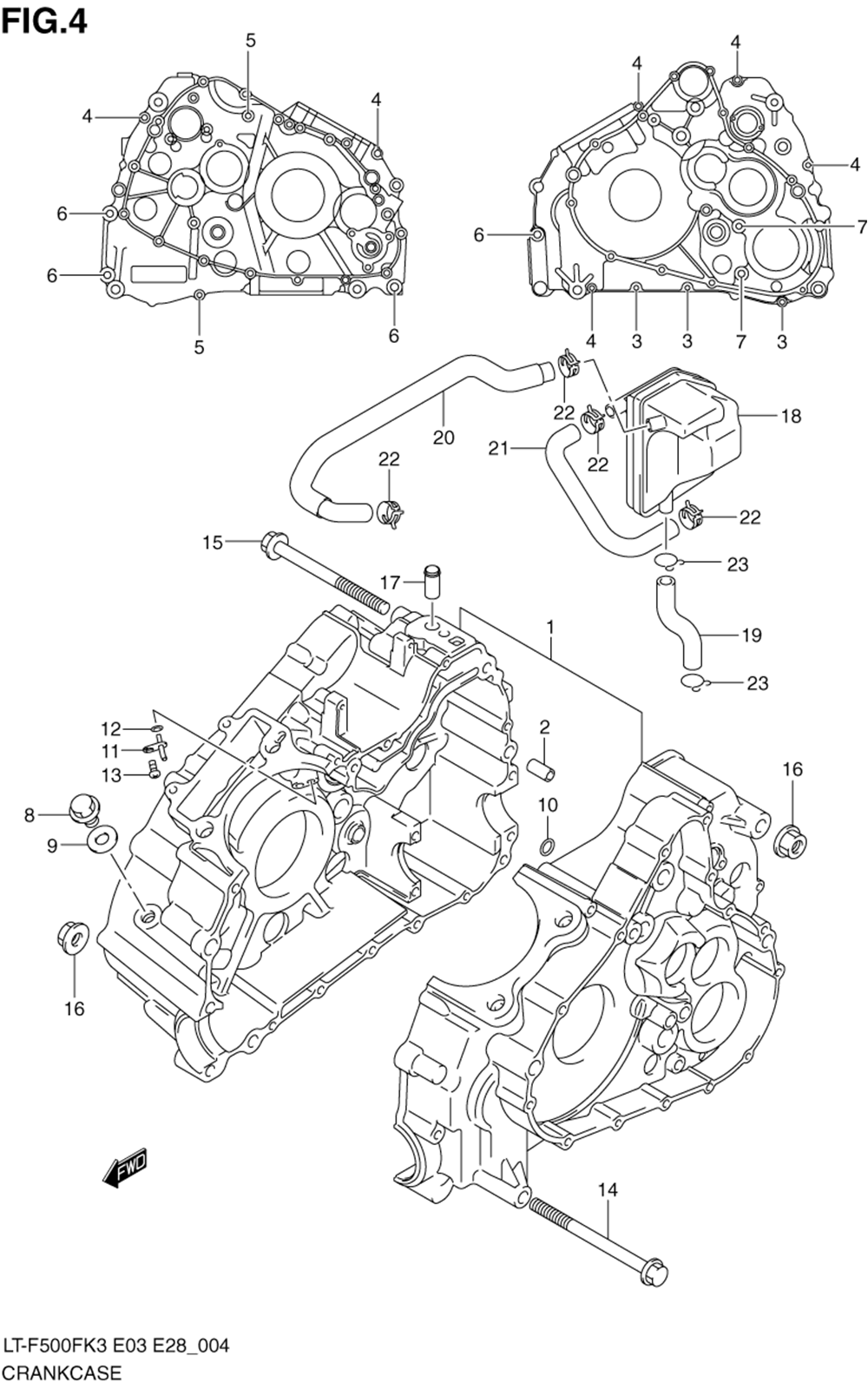

| № | Наименование | Примечание | Кол-во |
|---|---|---|---|
| 1 | CRANKCASE SET | 1 | |
| 2 | PIN | 2 | |
| 3 | BOLT | 3 | |
| 4 | BOLT | 6 | |
| 5 | BOLT | 2 | |
| 6 | BOLT | 4 | |
| 7 | BOLT | 2 | |
| 8 | BOLT | 1 | |
| 9 | GASKET OIL GALL | 1 | |
| 10 | O RING CAMSHAFT (NOT ILLUSTRATED) | 1 | |
| 11 | Деталь | 1 | |
| 12 | O RING (D:1.2ID:4) | 1 | |
| 13 | BOLT6X12 | 1 | |
| 14 | BOLT 10X180 | 1 | |
| 15 | BOLT10X208 | 2 | |
| 16 | NUT | 3 | |
| 17 | ..UNION | 1 | |
| 18 | TANK COMPOIL R | 1 | |
| 19 | HOSE BREATHER | 1 | |
| 20 | Деталь | 1 | |
| 21 | Деталь | 1 | |
| 22 | .CLIP | 4 | |
| 23 | CLIP | 2 |
