Polaris A11ZN85AA/AQ/AZ SPORTSMAN XP 850 A11ZN85AA/AQ/AZ SPORTSMAN XP 850 DRIVE TRAIN FRONT GEARCASE INTERNALS - A11ZN85AA / AQ / AZ (49ATVGEARCASEFWBD1332804)

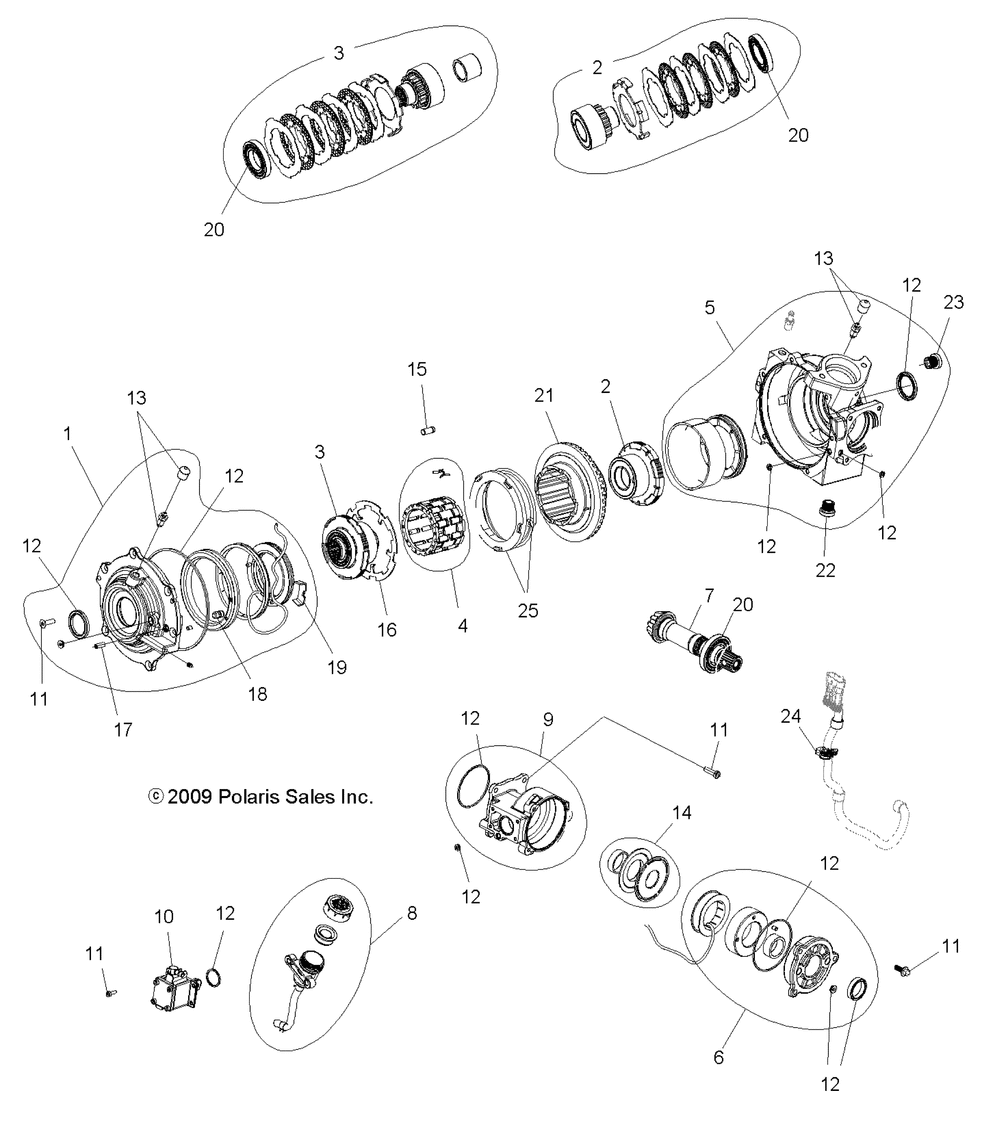

DRIVE TRAIN FRONT GEARCASE INTERNALS - A11ZN85AA / AQ / AZ (49ATVGEARCASEFWBD1332804)
№ Наименование Примечание Кол-во
ASM-GEARCASEFRONT ADC 1
1 ASM-COVEROUTPUT [INCL. O-RING DOWEL PIN SET SCREW SEAL COVER BLEEDER THRUST BUTTON PLATES 4WD COIL PISTON GROMMET COIL POCKET INSERT] 1
2 KIT-OUTPUT HUB MALE/FEMALE [Incl. 23 Hubs Disks Bearings Bushing] 1
4 ASM-ROLL CAGE [INCL. 22 CLIPS] 1
4 ASM-ROLL CAGEAL(T) HIGH PERFORMANCE ACCESSORY W/CLIP SET 1
5 ASM. GEARCASE ADC [INCL. CASE PLUGS VENT BLEEDER SEAL PISTON BUSHING] 1
6 ASM. COVER INPUT [Incl. Seals Bearing Coil Grommet] 1
7 ASM-RING GEAR PINION GEAR [INCL. 20] 1
8 ASM. RESERVOIR 1
9 ASM. NECK [INCL. NECK O-RING] 1
10 ASM. PUMP [INCL. COMPLETE PUMP] 1
11 KIT FASTENER [INCL. ALL FASTENERS] 1
12 KIT SEAL REPAIR [INCL. ALL SEALS O-RINGS] 1
13 BREATHER VENT TUBE 2
14 KIT-CAM & ARMATUREFWBD 1
15 KIT-ROLLER (20) [Incl. Complete Roll Set] (20 per pack) 1
16 PLATE-ARMATURE 1
17 SET SCREW 1
18 BUTTON-THRUST(6203-42-022) [Must also order 2203733] 1
19 BUTTON-THRUSTDC(6203-42-037) [Must also order 3234594] 1
20 BEARING 3
22 DRAIN PLUG(6203-95-010) 1
23 FILL PLUG(1300-04-001-T) 1
24 CLIP-STRAIN RELIEF 1
25 KIT-SPRING W/TORSION SPRING & SPRINT RETAINER ASSY 1
